EBD62065301 Genuine Water Flow Sensor Assembly for LG Dishwashers XD3A15MB XD3A25BS XD3A25PS XD4B14PS XD4B24PS XD4B24WH XD5B14PS XD5B24PS

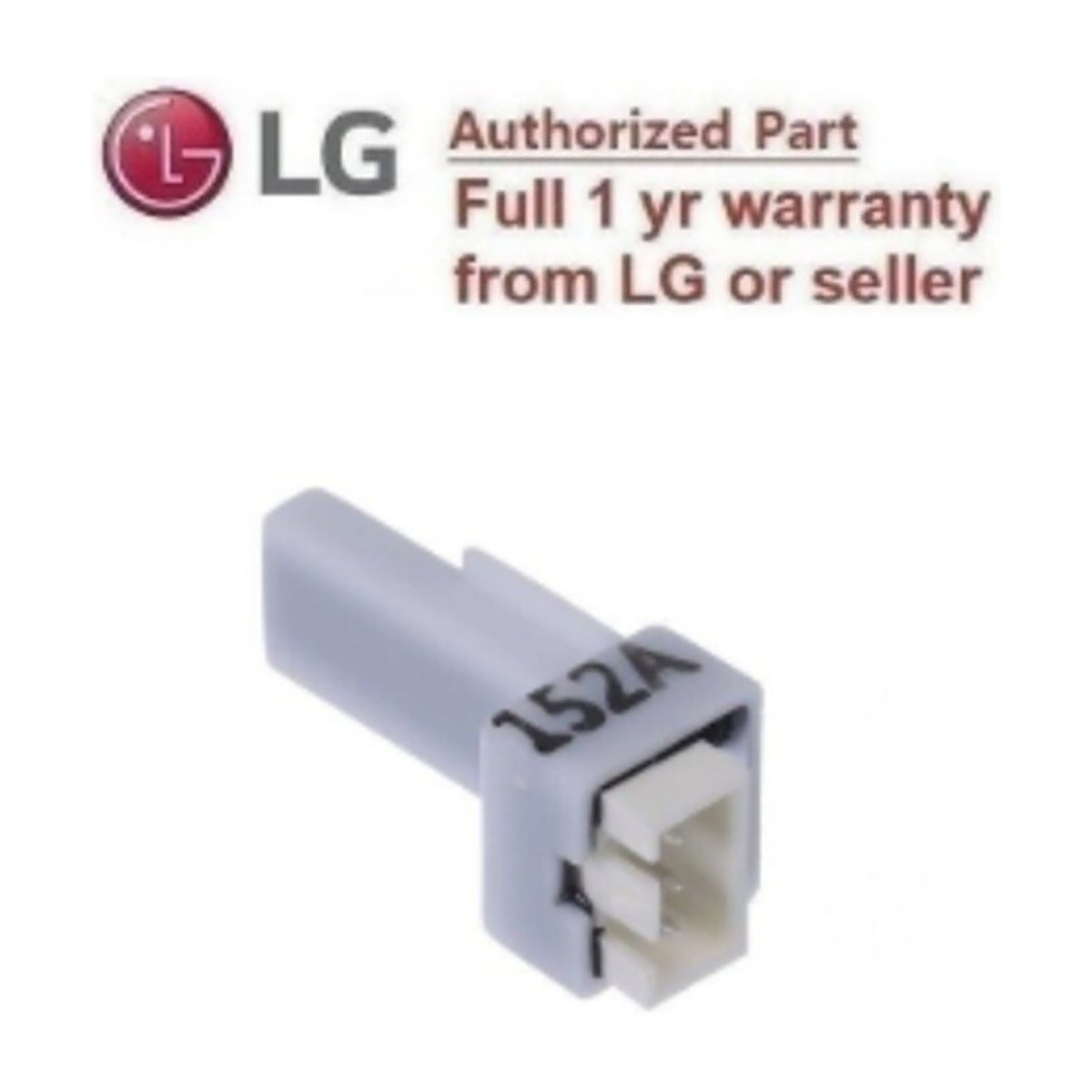

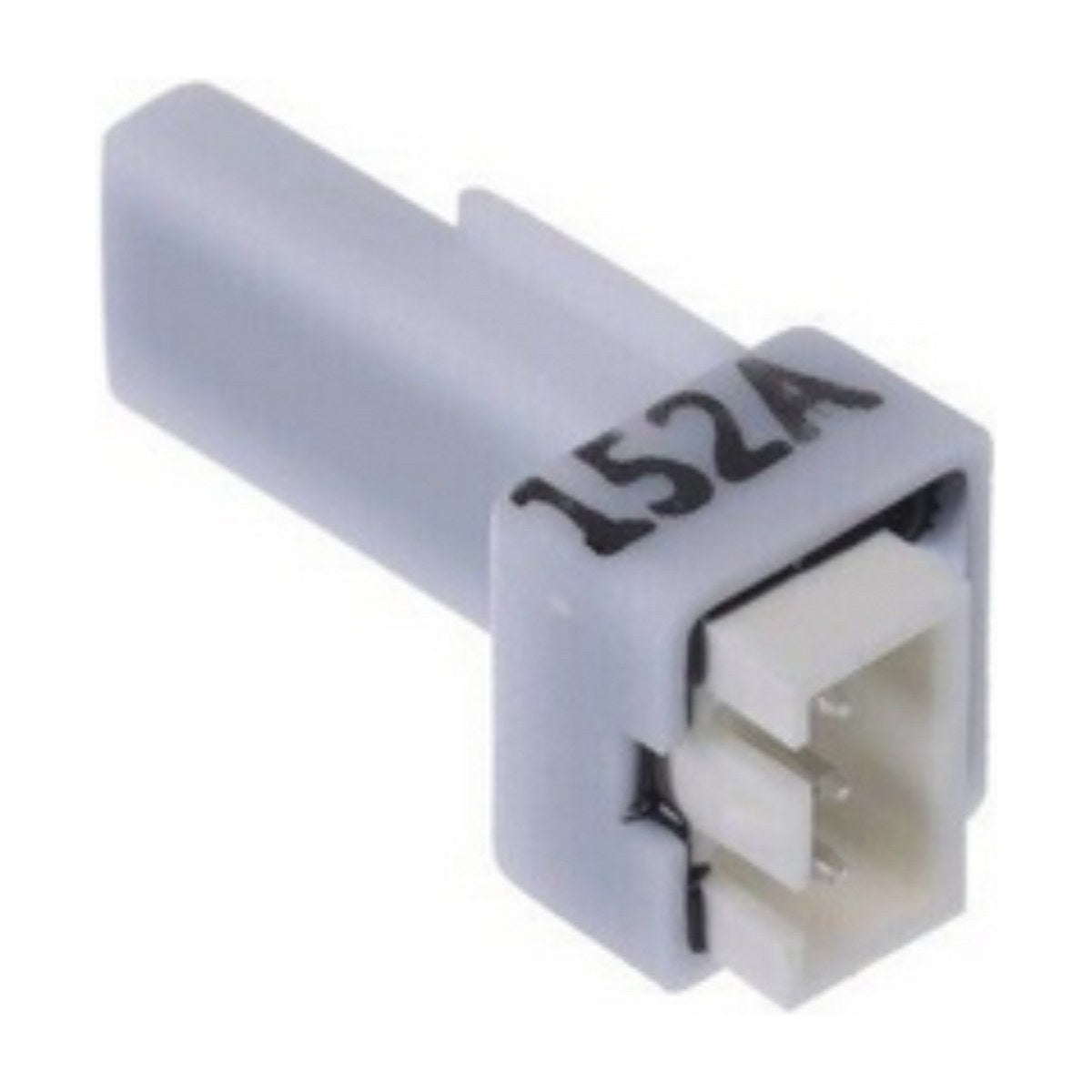

EBD62065301 is a genuine LG water flow sensor assembly for LG dishwashers. It is listed for 16 models across the XD3, XD4 and XD5 ranges. Examples include the XD3A15MB, the XD3A25BS, the XD4B14PS, the XD4B24WH and the XD5B24PS. The dishwasher counts on this sensor to know how much water has come in during each fill.

LG dishwasher not filling properly or showing a water supply error

As water enters the dishwasher it passes through the flow sensor, which sends a signal to the control board as it measures the volume. The board uses that count to stop each fill at the right level. If the sensor fails or its signal drops out, the dishwasher may fill too little, overfill, stop with a water supply or inlet error, hum without starting the wash, or leave dishes poorly cleaned because the water level is wrong. Before replacing it, check the tap is fully open and the inlet hose and filter aren't blocked.

Part details

• Genuine LG flow sensor assembly EBD62065301
• Measures incoming water for the control board
• Listed for 16 LG XD3, XD4 and XD5 dishwasher models
• Includes XD3A15MB, XD4B24PS and XD5B24PS

Fitting the flow sensor

Turn off the power at the wall and close the water tap. Slide the dishwasher out of its cavity, protecting the floor, and expect some water when you disconnect the inlet side. Note how the wiring plug and hoses sit before removing the old sensor. Once the new one is in, open the tap, check for drips, then run a short program to test the fill.

Questions about this part

Where is the model number on my LG dishwasher?

Open the door and look along the edge of the inner door or the side of the tub for the rating label. The model starts with XD followed by digits and letters, such as XD4B24PS. Match it against the 16 models listed here.
