EAU64824806 Genuine Evaporator Fan Motor DC 2.7W for LG Fridges GF-L570MBL GF-V570MBL GF-L570PL GB-335PL GB-335WL GT-3S GT-4W
- Original part no.
- EAU64824806
- Part grade
- Genuine
- Appliance
- Fridge Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

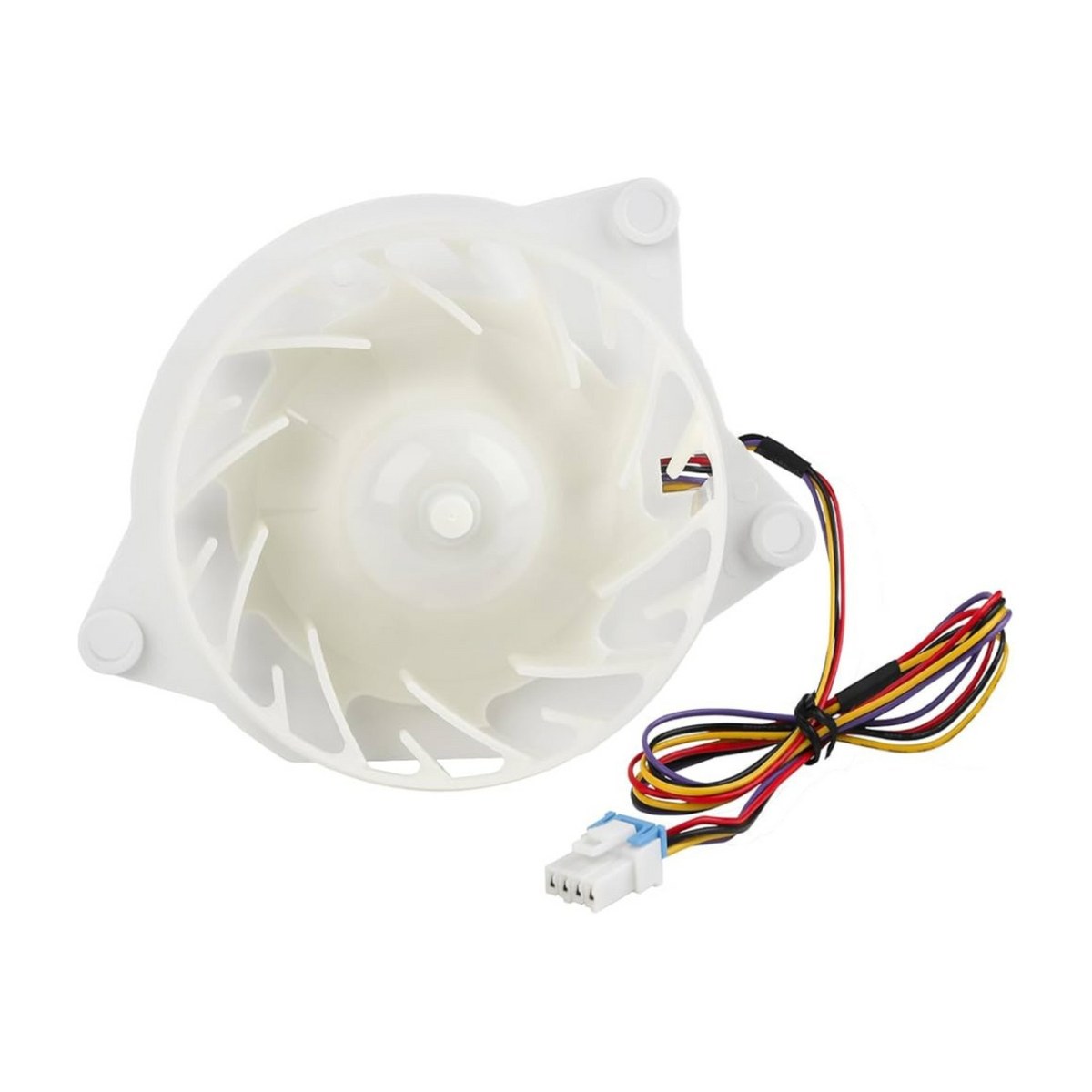

LG's genuine evaporator fan motor, part EAU64824806, is a small 2.7W DC motor that runs at 1970 rpm and sits behind the freezer panel. It turns up across a group of LG fridges on file, including the GF-L570MBL, GF-L570MBNL and GF-L570PL, the GF-V570MBL and GF-V570PNL, the GB-335PL, GB-335WL and GB-W335MBL, and GT-3, GT-4 and GT-5 series fridges such as the GT-3S and GT-4W.
LG fridge warm but freezer still cold? Check the evaporator fan
In a frost free LG fridge the evaporator fan pulls air across the cooling coils behind the freezer wall and pushes it through ducts into both compartments. When the motor slows down or stops, the cold stays trapped around the coils. Typical signs are a fridge section that slowly warms up while the freezer holds some cold, ice cream going soft, a buzzing, ticking or grinding noise from the back of the freezer, or silence from the fan while the compressor is running. Ice built up around the fan blade can mimic a failed motor, so check for that first.
Part details
- Genuine LG part EAU64824806
- DC motor rated at 2.7W
- Runs at 1970 rpm
- Evaporator fan position behind the freezer panel
- 18 LG fridge models on file in the GF, GB and GT ranges
| Type | DC motor |
|---|---|
| Power | 2.7W |
| Speed | 1970 rpm |
Replacing the fan motor
Unplug the fridge and move the food out of the freezer. Take out the shelves and the rear freezer panel to reach the fan. If the area is iced up, let it thaw fully before going further. Move the fan blade across to the new motor, connect the plug, and make sure the blade spins freely without touching the shroud. Refit the panel and give the fridge a few hours to pull down to temperature.
Questions about this part
Will a fan motor with a different part number work?
Stick with EAU64824806 or a number LG lists as its replacement. Fridge fan motors look alike, but speed, voltage and plug type vary between models, and the wrong one can run slowly or not at all. Compare the label on your old motor if you can.
Specifications
| Original part number | EAU64824806 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | EAU64824806 |
| Appliance | Fridge Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
