EAU64082902 Genuine Drain Pump for LG Front Load Washing Machines WD1207NCW WD1275TC5W WD1275ND WV5-1275W WV7-1408W WV9-1409W WV9-1410W

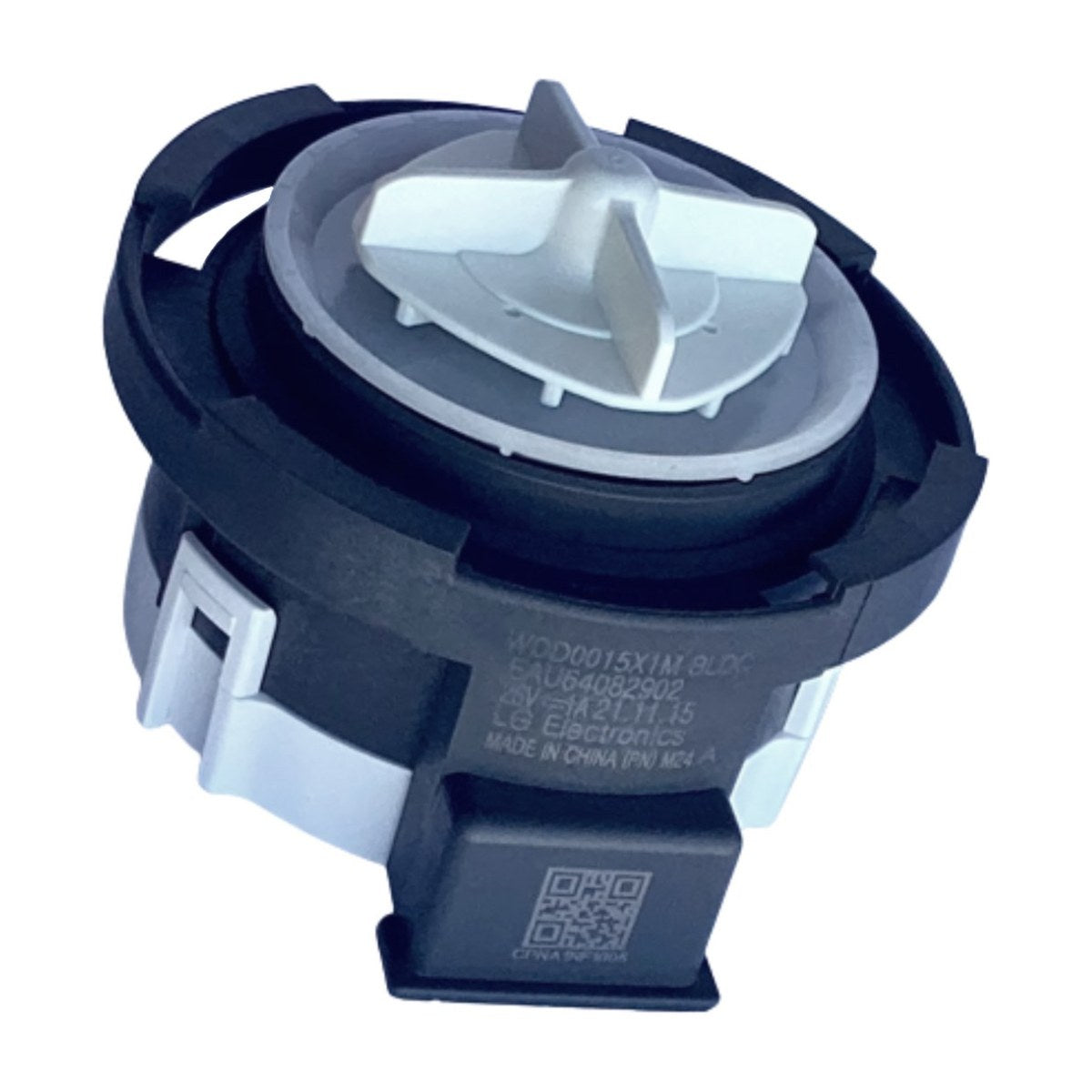

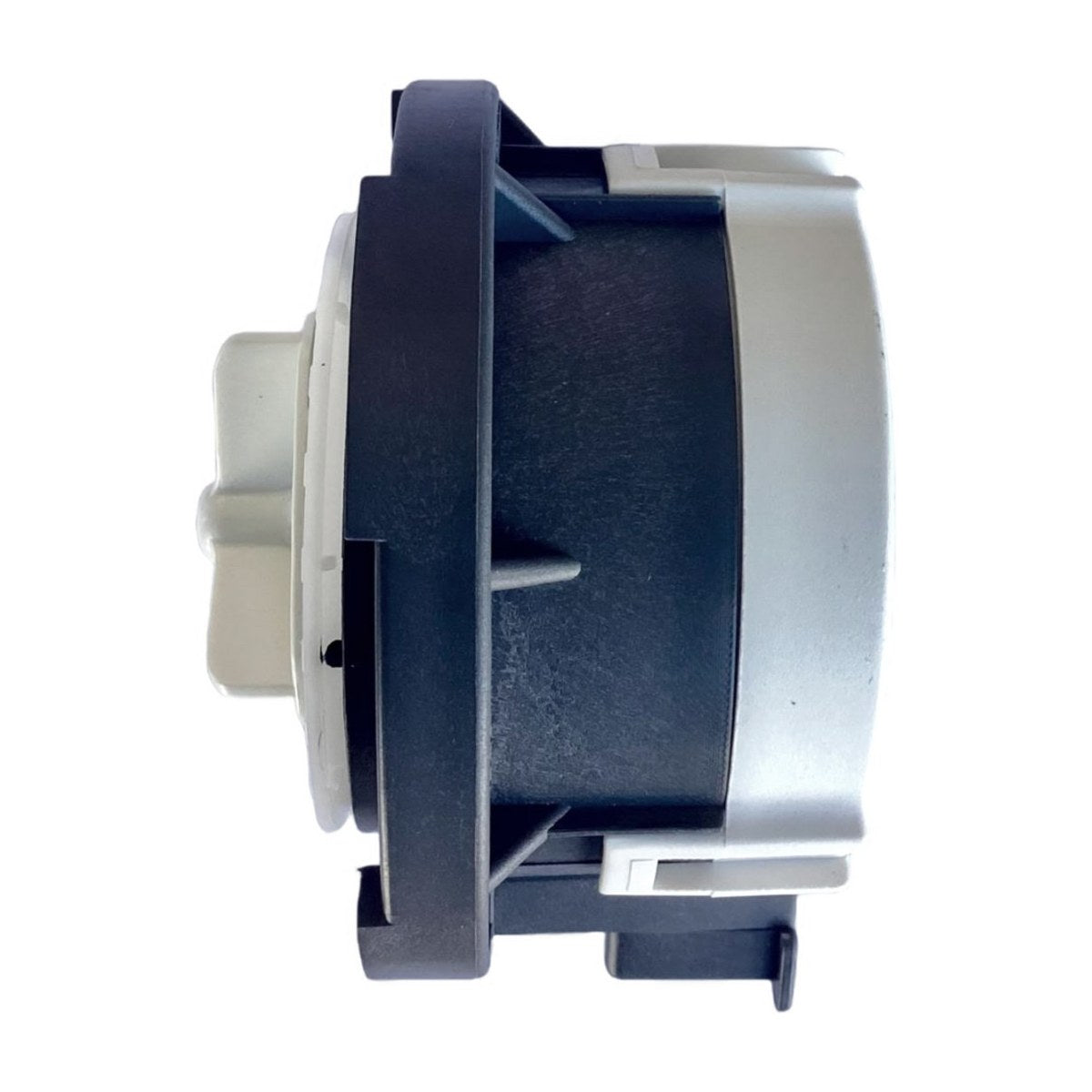

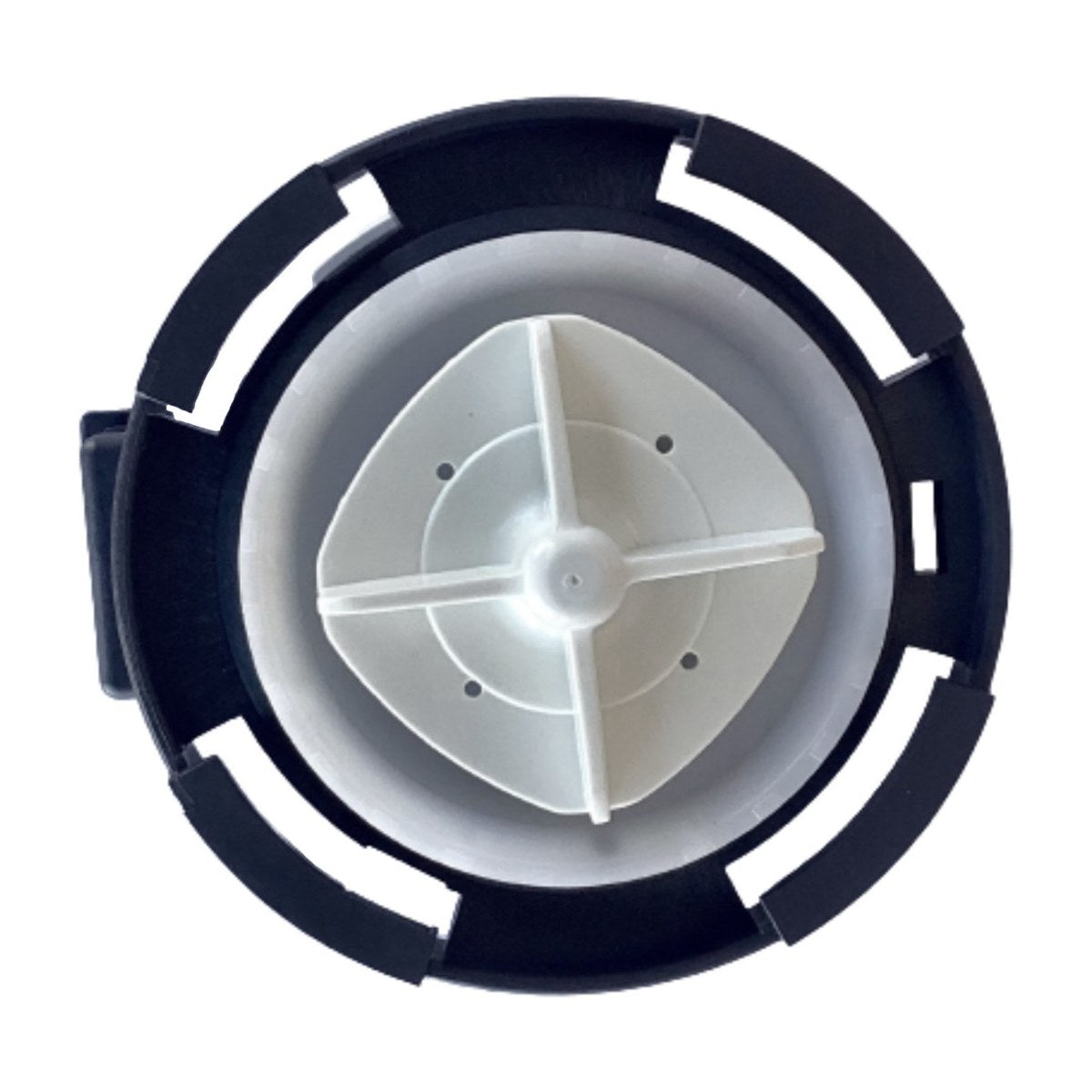

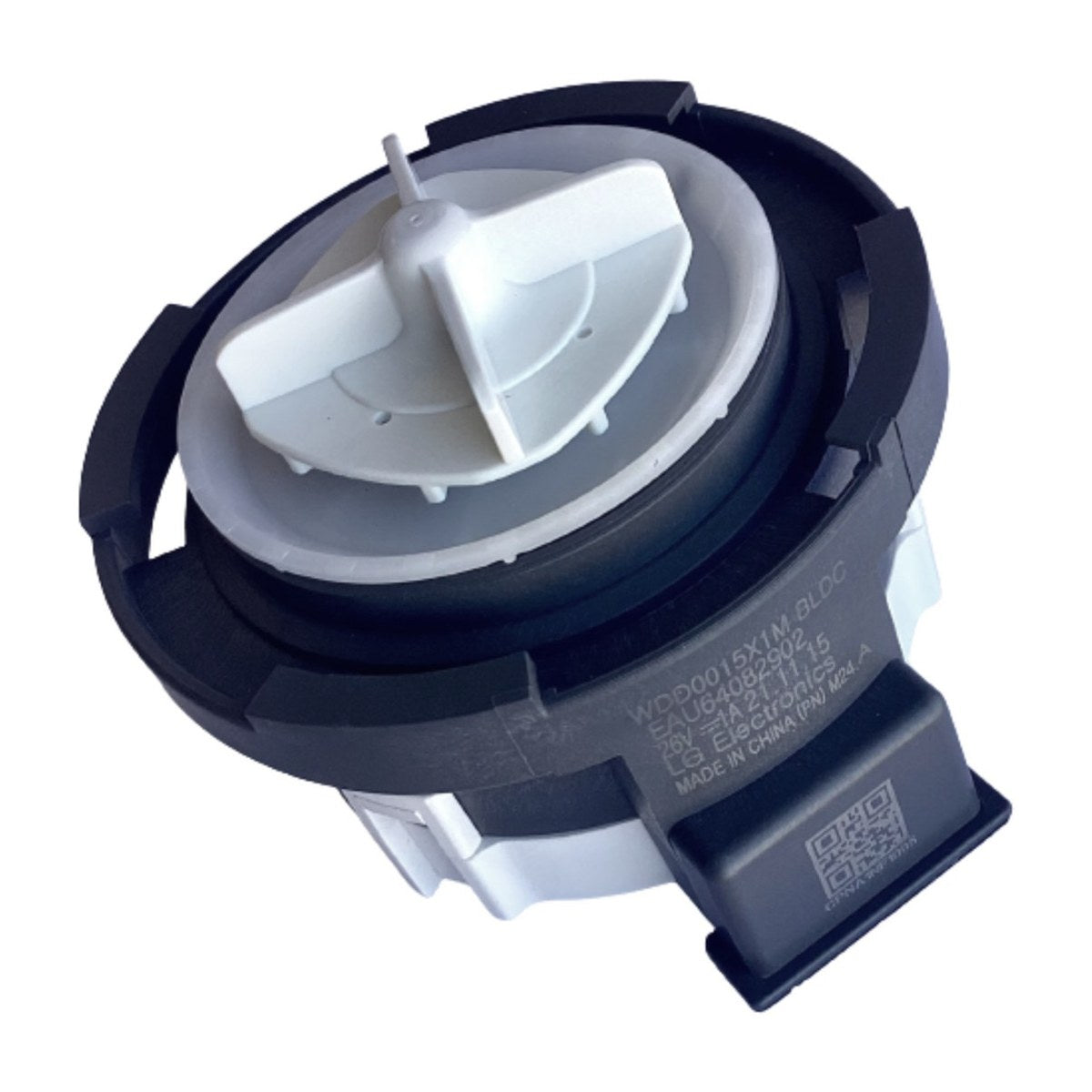

This is the genuine LG drain pump, part EAU64082902, an AC pump motor assembly for LG front load washing machines. It suits the WD1207NCW and WD1275TC5W it was first listed for, plus the WD1275ND and the WV5, WV7 and WV9 series such as the WV5-1275W, WV7-1408W, WV9-1409W and WV9-1410W. The WVC5-1409W, WVC9-1410W and WWT-1710 models on file take it too.

LG front loader not draining? The drain pump is a prime suspect

At the end of each wash and rinse, the drain pump pushes water out of the tub and into the drain hose. When its impeller jams, the motor winding fails or a blocked filter starves it, water stays in the drum. You may find the washer stopping mid cycle with water sitting inside, a spin that never starts, clothes left soaking wet, a drain error on the display, or a loud hum or grinding from the bottom front. Always clear the pump filter first, as lint, coins and hair clips cause plenty of these faults.

Part details

• Genuine LG drain pump EAU64082902
• AC pump motor assembly
• Listed for 21 LG front load models
• Covers WD, WV5, WV7, WV9, WVC and WWT models on file

Changing the drain pump

Unplug the washer and turn off both taps. Have towels and a shallow tray ready, then let out the remaining water through the filter or emergency drain hose before going near the pump. Photograph the wiring and hose clamps, swap the pump across, and check every clamp is seated properly. Run a rinse and spin while watching underneath for leaks.

Questions about this part

My LG still won't drain after cleaning the filter. Is it the pump?

Often, yes. If the filter is clear, the drain hose isn't kinked, and you hear the pump hum without water moving, or hear nothing at all during the drain stage, the pump is the likely fault. A repairer can confirm it by testing the motor.
