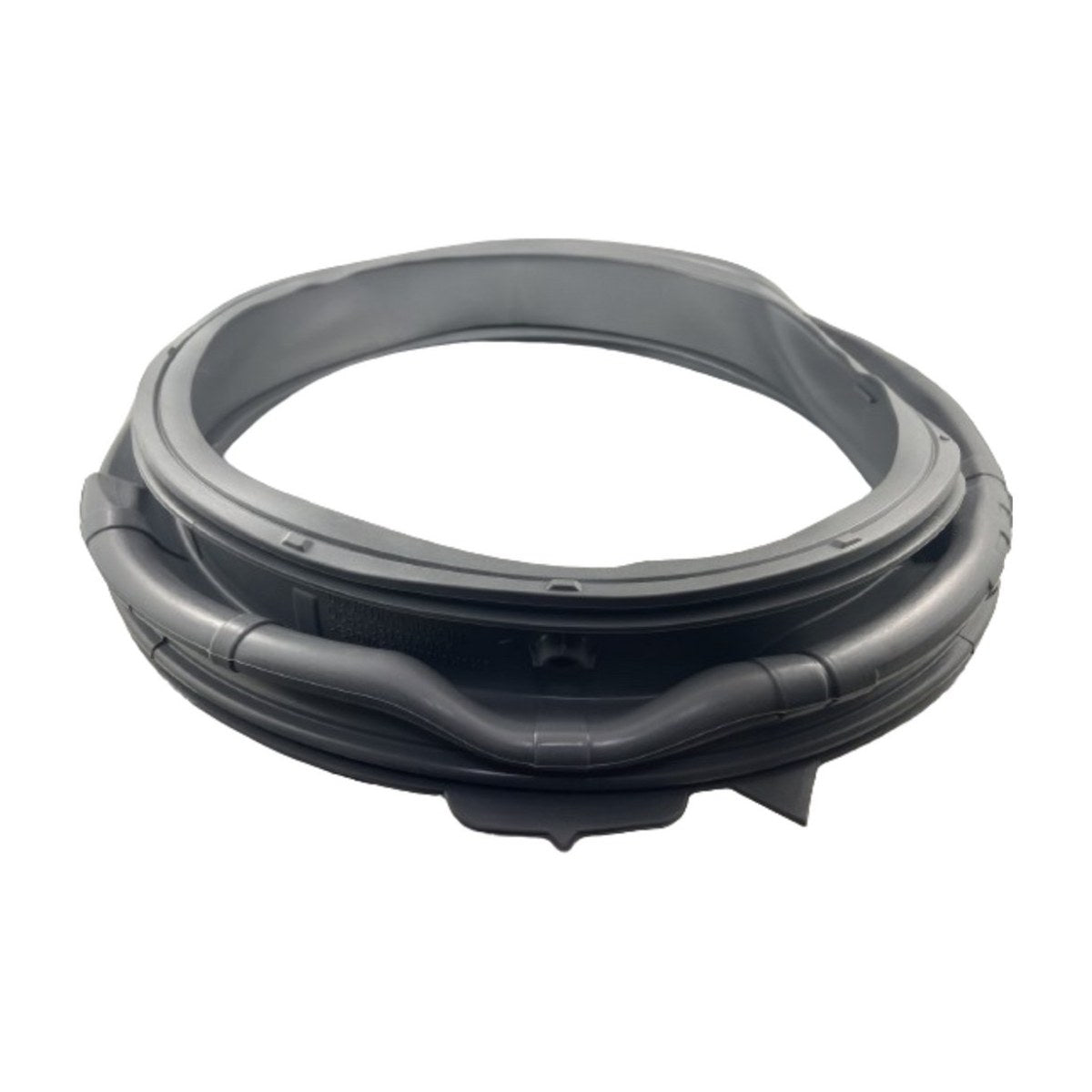

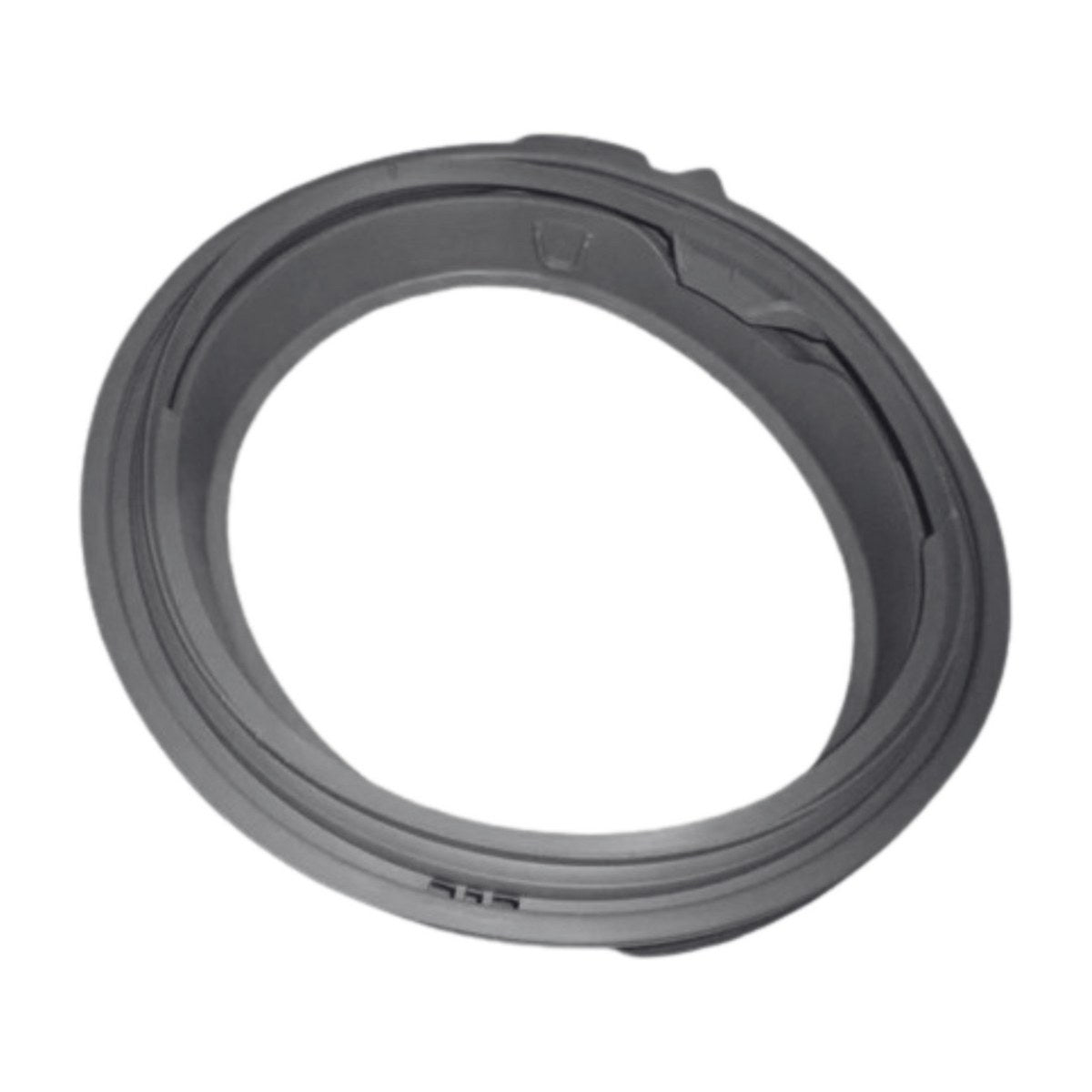

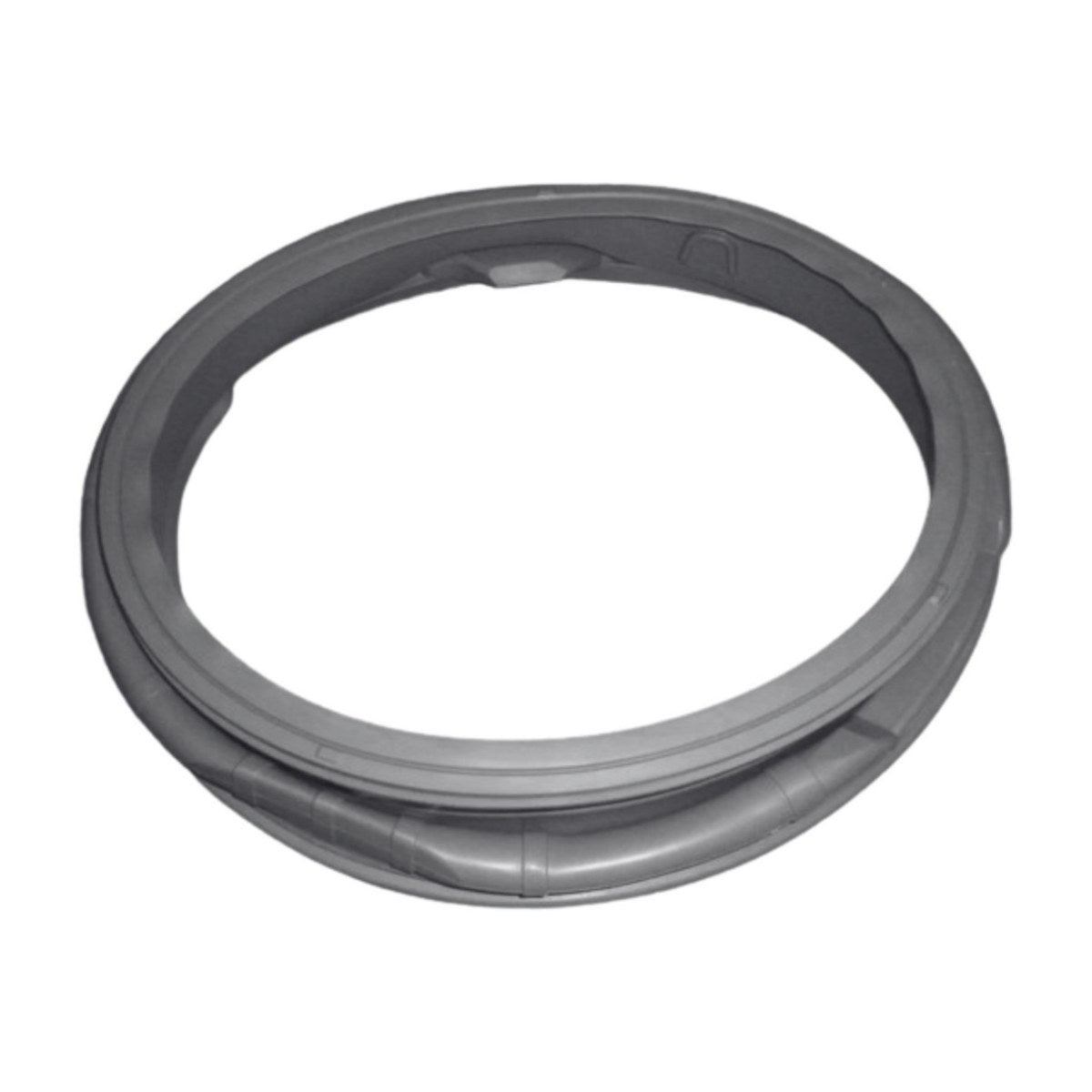

DC64-03197C Generic Door Seal suits Samsung Front Load Washing Machines WW75J54E0IW WW85K54E0UW WW85T554DAB WW90T504DAW WW75T504DTW
- Original part no.
- DC64-03197C
- Part grade
- Generic
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Quality checked generic part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
DC64-03197C is a generic door seal made to suit a range of Samsung front load washing machines. It's an aftermarket replacement that matches the Samsung numbers DC64-03197C, DC64-03988A and DC64-03988C. Models on file include the WW90T504DAW, the WW85T554DAB and WW85T554DAW, the WW85T504DAE and WW75T504DTW, plus the WW85K54E0UW and WW75K54E0UW and the WW85J54E0IW and WW75J54E0IW.
Samsung washer leaking from the door seal?
Every front loader relies on its door seal to keep water inside the drum. The seal is clamped to the outer tub and to the front panel, and the door glass presses into it when you close the door. Constant flexing, detergent and dampness wear the rubber down, and objects left in pockets can slice it. Look for puddles under the door, splits in the bottom fold, mould spots that have stained into the rubber, or a seal that has come loose from its clamp.
Part details
- Generic aftermarket door seal for Samsung front loaders
- Part number DC64-03197C
- Matches Samsung numbers DC64-03988A and DC64-03988C
- Listed for WW75J, WW85J, WW75K, WW85K, WW85T, WW90T and WW75T models on file
Replacing the Samsung door seal
Unplug the washer and turn off both taps. Prise off the outer clamp ring with a flat screwdriver, then pull the seal free of the front lip. Remove the inner clamp at the tub, which may be a spring or screw type, and lift the seal away. Line up the new seal with the tub marks and drain hole, refit the clamps and test with a rinse cycle.
Questions about this part
Will this fit my Samsung WW85K54E0UW?
Yes, the WW85K54E0UW is on file for this seal, including its SA/0000 and SA/0001 versions. For other models, check that your old seal or parts list shows DC64-03197C, DC64-03988A or DC64-03988C before ordering.
Specifications
| Brand | Universal |
|---|---|
| Original part number | DC64-03197C |
| Part grade | Generic : Generic compatible replacement, a lower cost alternative to the original part. |
| SKU | DC64-03197C_G |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.7 kg |
