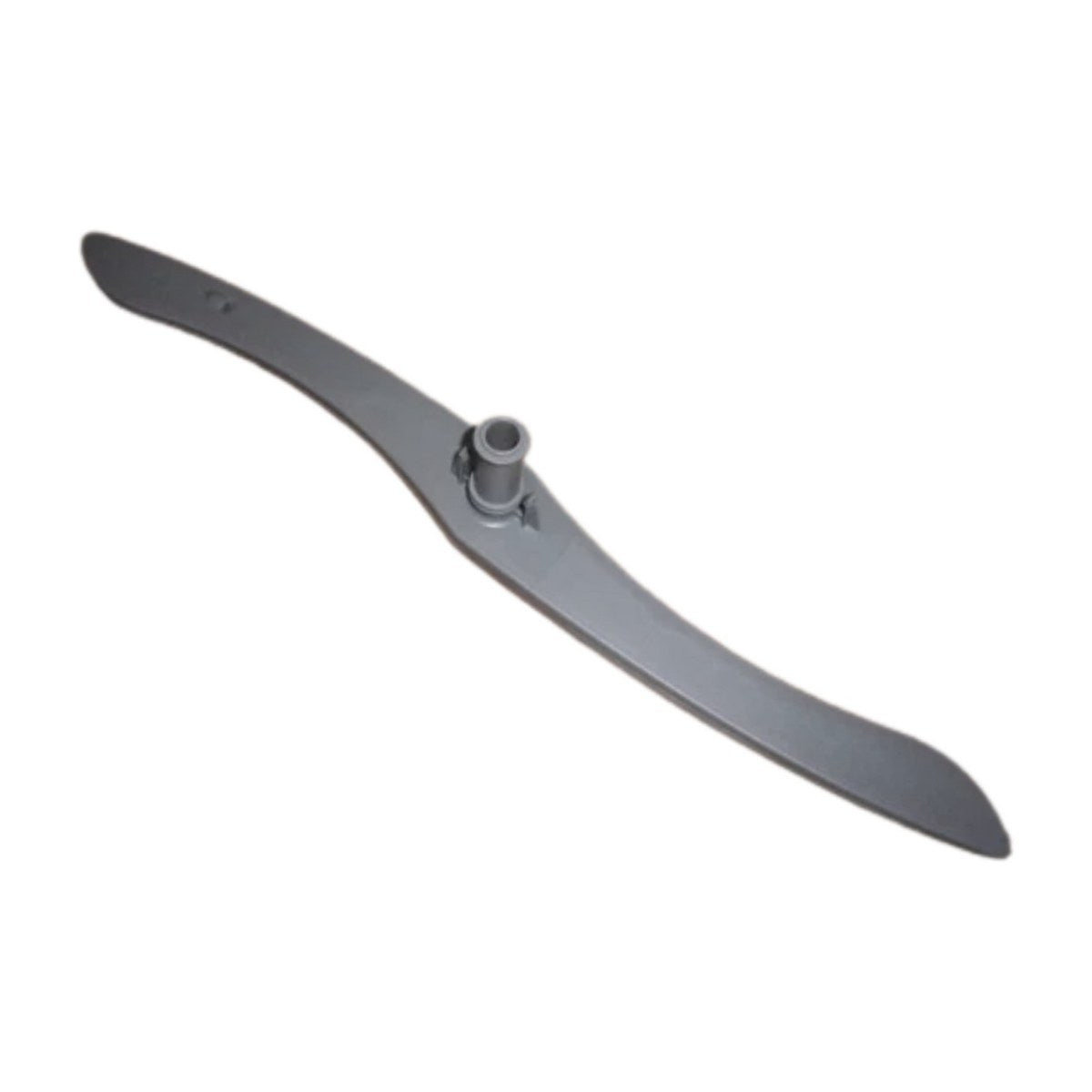

DAU1591159 Genuine Lower Spray Arm for Omega, Technika Dishwashers ODW700X ODW702X TDX6SS-5 TDX7SS-5 TDX8SS-5 TBD4SS-5 12176000009161

DAU1591159 is the genuine lower spray arm for Omega and Technika dishwashers, and it also appears in parts lists as 12176000009161. The same arm is on file for 29 models across several brands, including the ODW700X and ODW702X, the TBD4SS-5, the TDX6SS-5 and TDX7SS-5, the TDX8SS-5, the DEDW6012SC, the EDV600SS and the PR60DW6WH.

Dishwasher not cleaning the bottom rack

The lower spray arm spins under the bottom rack, driven by water forced through it by the wash pump. Jets along the arm blast water up through the dishes. If the jets block with food or scale, the arm cracks, or the hub wears so it wobbles or stops spinning, the bottom rack comes out dirty or gritty. You may also hear knocking as a loose arm hits the rack. Clean the jets and filters first, then replace the arm if it is cracked, warped or won't turn freely.

Part details

• Genuine lower spray arm DAU1591159
• Alternative number 12176000009161
• Listed for Omega ODW and Technika TBD and TDX dishwashers, plus models from other brands

Changing the lower spray arm

Turn the dishwasher off and pull out the bottom rack. Most lower arms lift straight off their hub or release by undoing a centre nut or cap, so check how yours is held before pulling hard. Clean the hub and filters while the arm is off. Fit the new arm, turn it by hand to confirm it spins freely without touching the rack, then run a rinse.

Questions about this part

How do I clean blocked spray arm jets?

Take the arm off and rinse it under a tap, then clear each jet with a toothpick. Shake out any loose debris from inside. If jets keep blocking, the filter may be damaged or not seated properly. Replace the arm if it is cracked or warped.
