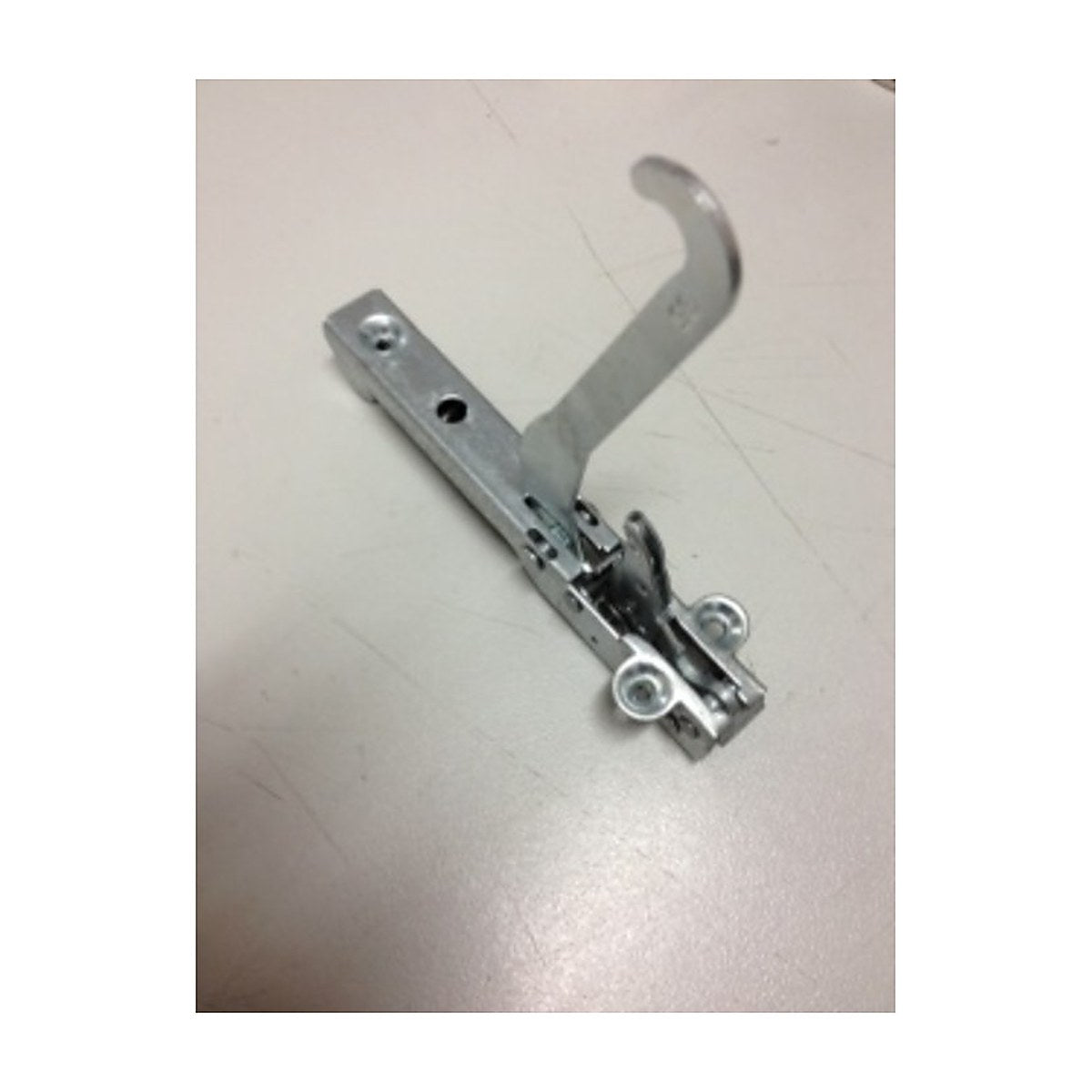

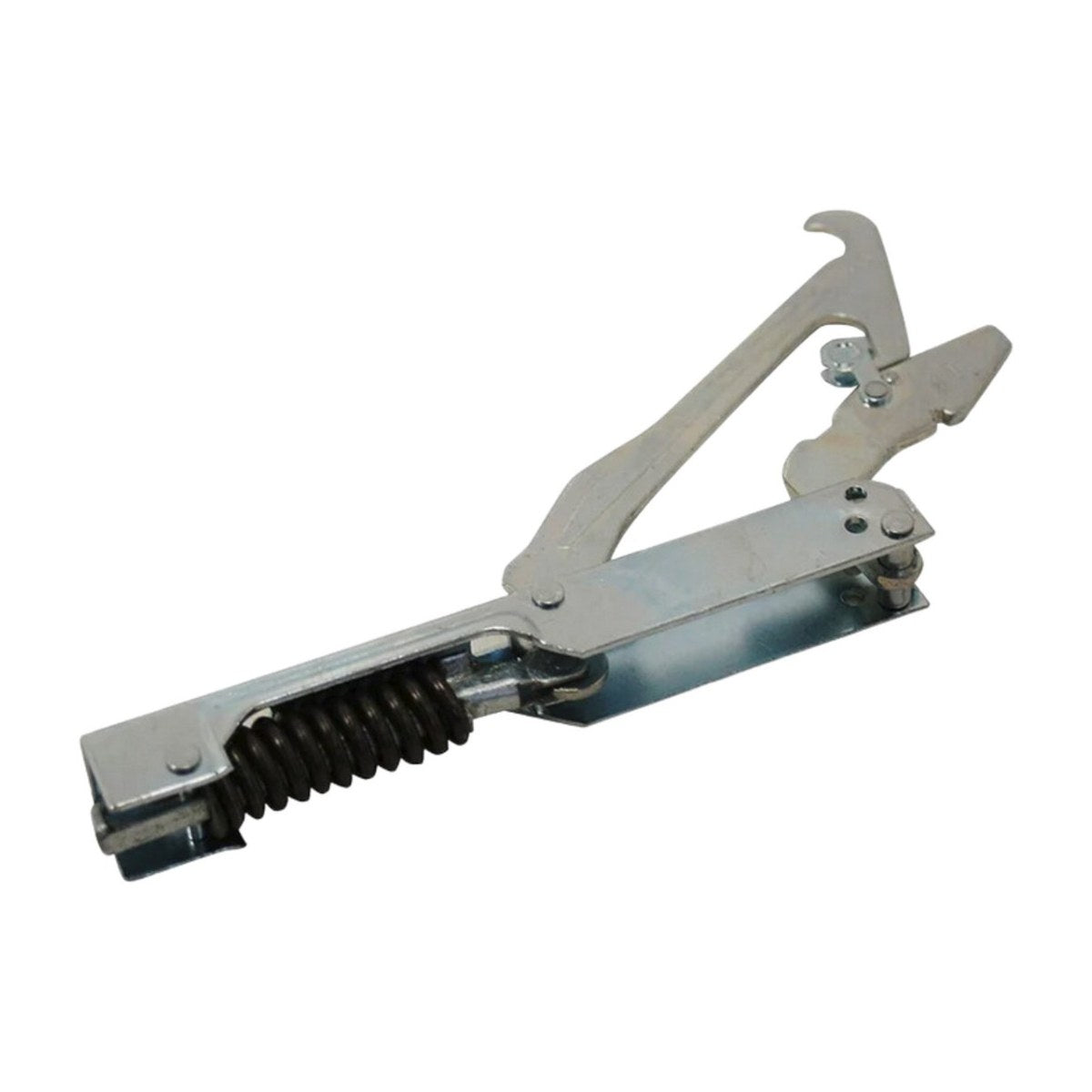

DAU063103 Genuine Bottom Oven Door Hinge, Male Section, for Fisher & Paykel Ovens, F&P Lower Oven Door Hinge

Fisher & Paykel DAU063103 is a genuine bottom hinge for oven doors, described as the male section. The lower hinges carry most of the door's weight and pull it tight against the seal, so wear here shows up fast. There's no model list for DAU063103 on file. Look up your oven's parts list using the model and serial number on the label around the oven opening, and match the number before ordering.

Fisher & Paykel oven door dropping or not sealing

Oven door hinges use a strong spring and a lever arm to balance the door, so it lowers smoothly and closes firmly. The male part of a hinge is the piece that engages with its matching receiver. When the spring tires or the arm wears, the door can crash down, hang open slightly, sit higher on one side or let heat escape around the top. That lost heat lengthens cooking times and can make the control panel and knobs uncomfortably hot.

Part details

• Genuine Fisher & Paykel part DAU063103
• Bottom oven door hinge
• Male section

Changing the bottom hinge

Make sure the oven is off and completely cold, and isolate the power if you'll be working near wiring. Remove the door first, usually by opening it fully, locking the hinge clips and lifting it away. Hinge springs are strong, so keep fingers clear when releasing them. Look at the matching hinge on the other side too, as replacing worn hinges together gives an even close.

Questions about this part

Will DAU063103 fit my oven?

Check the parts list for your Fisher & Paykel oven's model and serial number, which are on the label around the door opening. If DAU063103 is listed as the bottom hinge, this is the right part. You can also send us the details to check.
