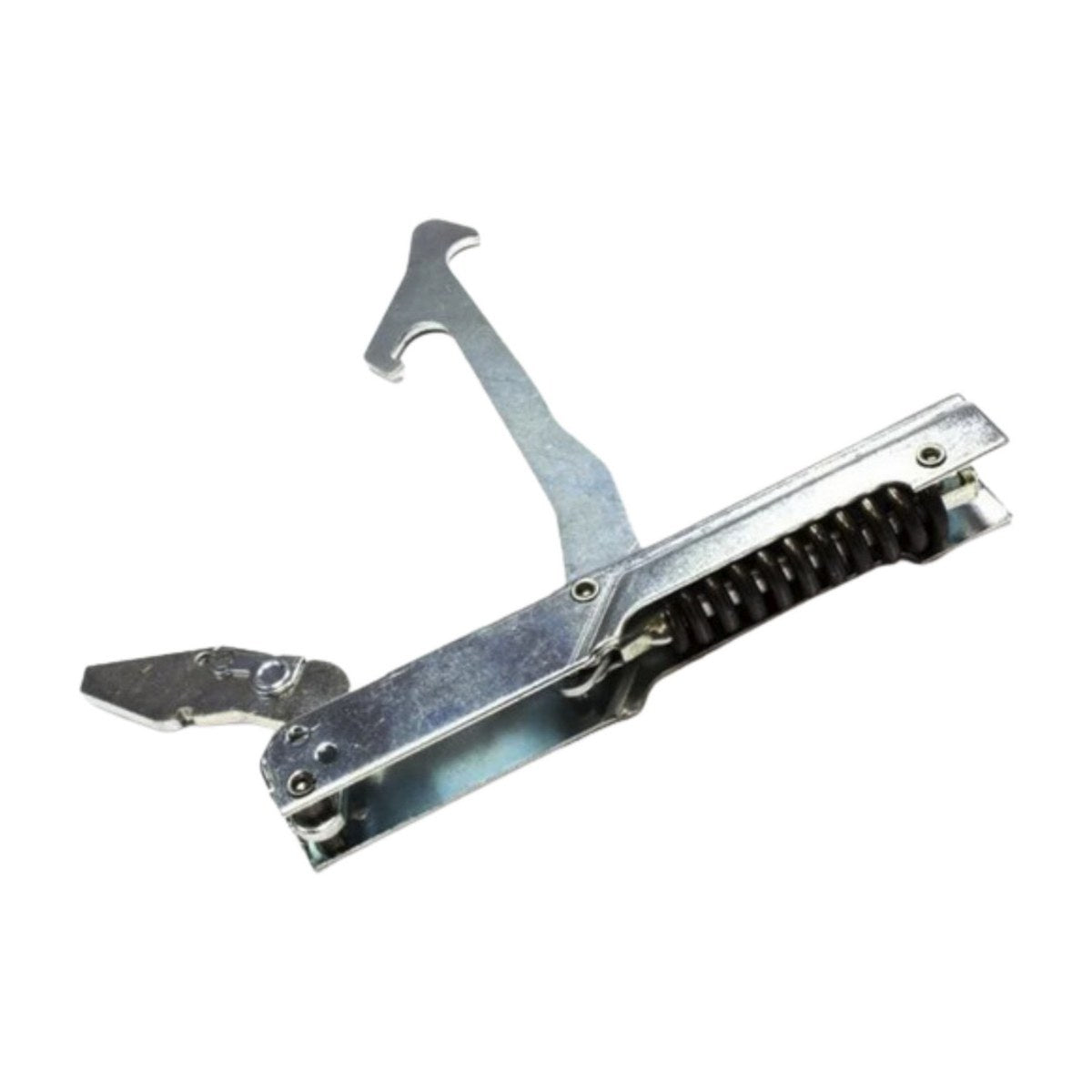

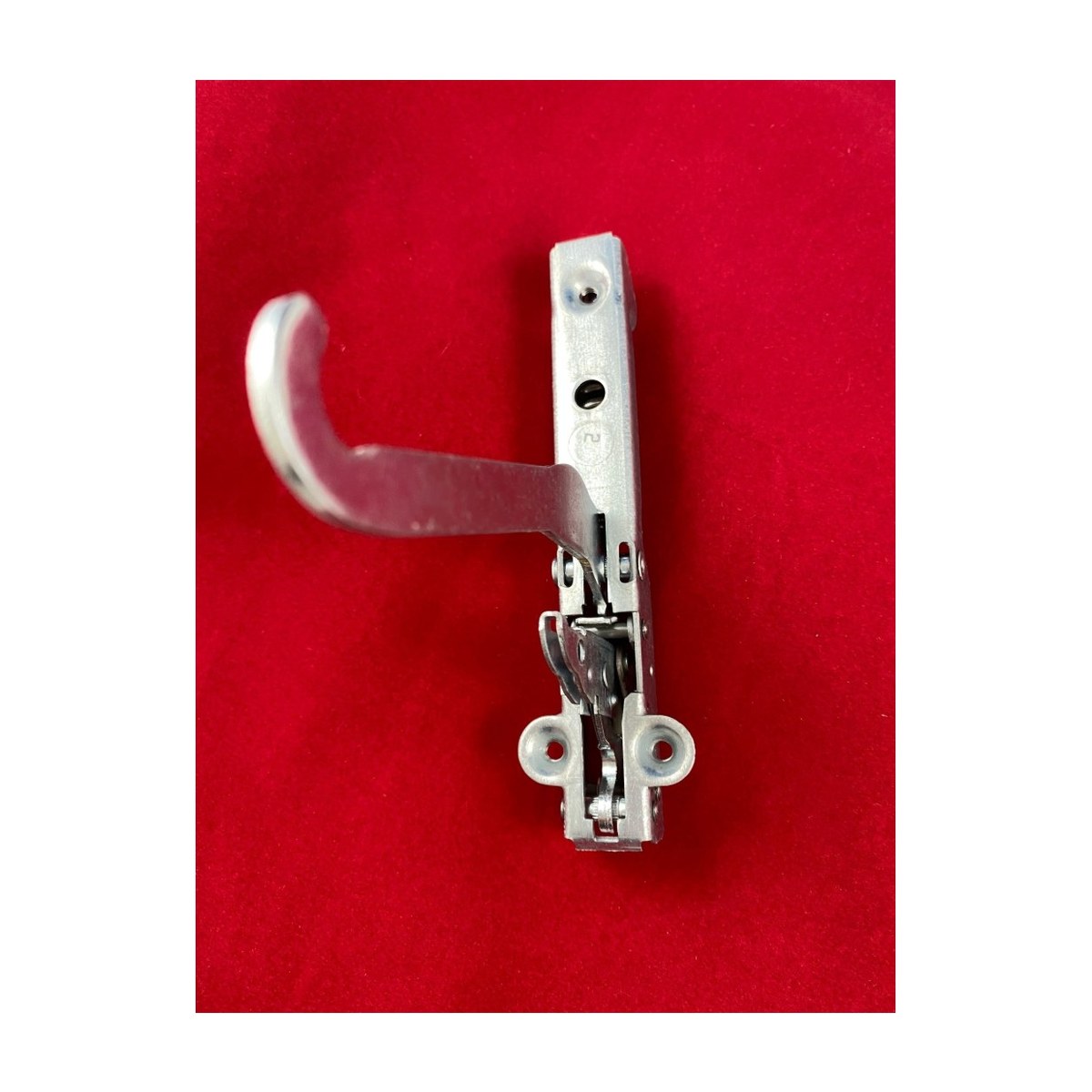

DAU063089 Genuine Oven Door Hinge for Delonghi Ovens M61GX L61GW PGX664GHI D61G D61GLPG DOMFPS C6N0DL013X C610DA006X

Genuine hinge DAU063089 suits Delonghi ovens and cookers listed under factory product codes. Examples are C6N0DL013X for the M61GX, C6N0DA004X for the L61GW and C6N0DL052X for the PGX664GHI, along with the D61G and D61GLPG under C610DA006X and C610DA008X. If the oven door has dropped, won't close firmly or crashes open, a worn hinge is the likely cause.

Delonghi oven door dropping or not shutting?

The hinge carries the weight of the oven door and uses spring tension to pull it closed against the seal. With daily use the spring stretches and the pivot points wear, so the door loses its grip. You might notice the door falling open the last few centimetres, one side sitting lower than the other, a gap along the top where heat and steam escape, or a squeak or clunk when it moves. Left alone, a failing hinge lets heat out, slows cooking, and can warm the controls above the door.

Part details

• Genuine Delonghi part DAU063089
• Oven door hinge
• Listed for M61GX, L61GW and PGX664GHI models
• Also fits D61G, D61GLPG, 61G and DOMFPS versions

Swapping a Delonghi door hinge

Switch the oven off and wait for it to cool. Open the door fully and lock the hinge open, using its lever or clip if fitted, before lifting the door away, as the spring is strong and can snap shut. Check the hinge on the other side at the same time. Once the new hinge is in, rehang the door and make sure it closes square and seals evenly.

Questions about this part

How do I find my Delonghi product code?

Look at the rating label, usually visible around the door frame or on the side of the oven when the door is open. It often shows a product code like C6N0DL013X as well as a model name like M61GX. Match either one against this listing, or send them to us.
