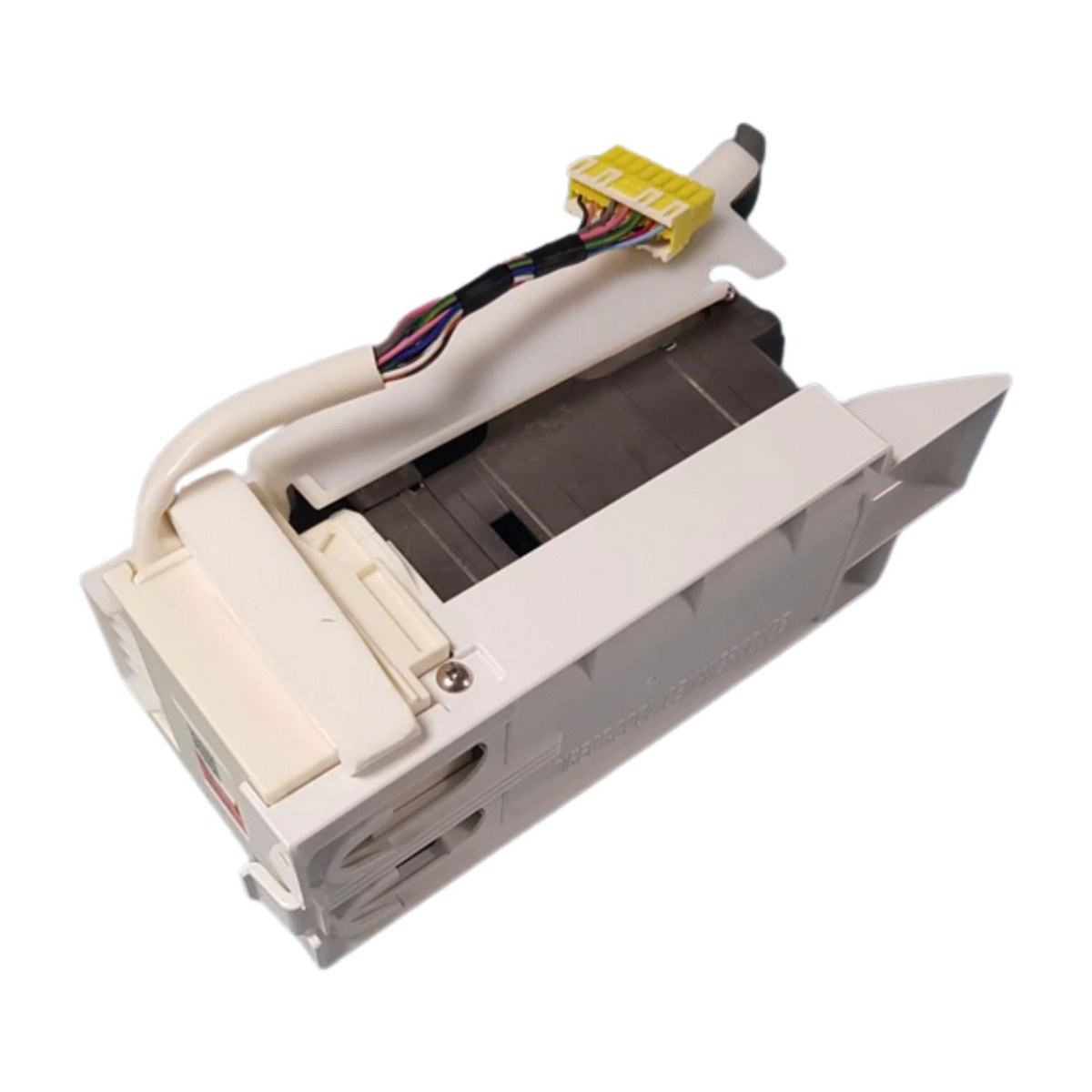

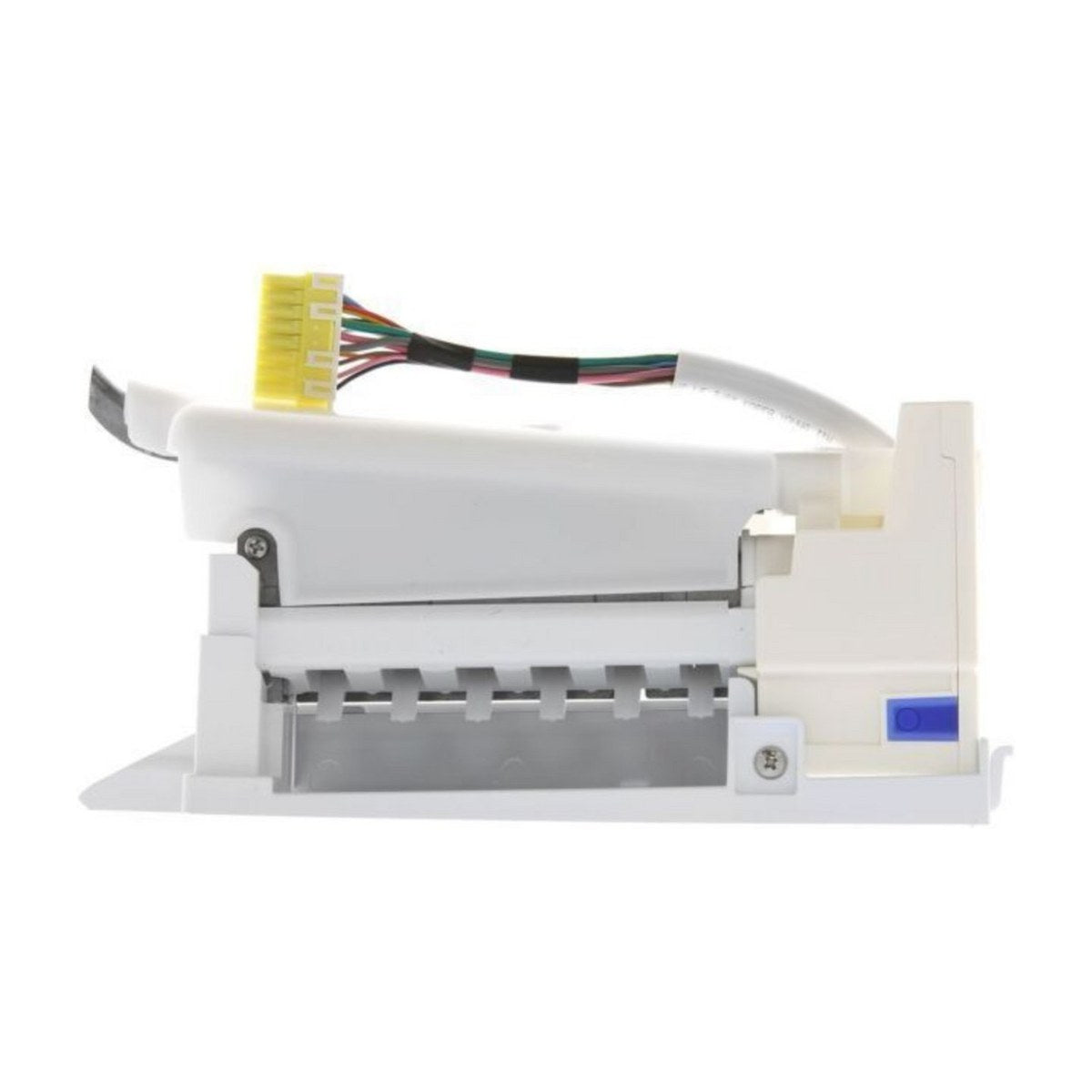

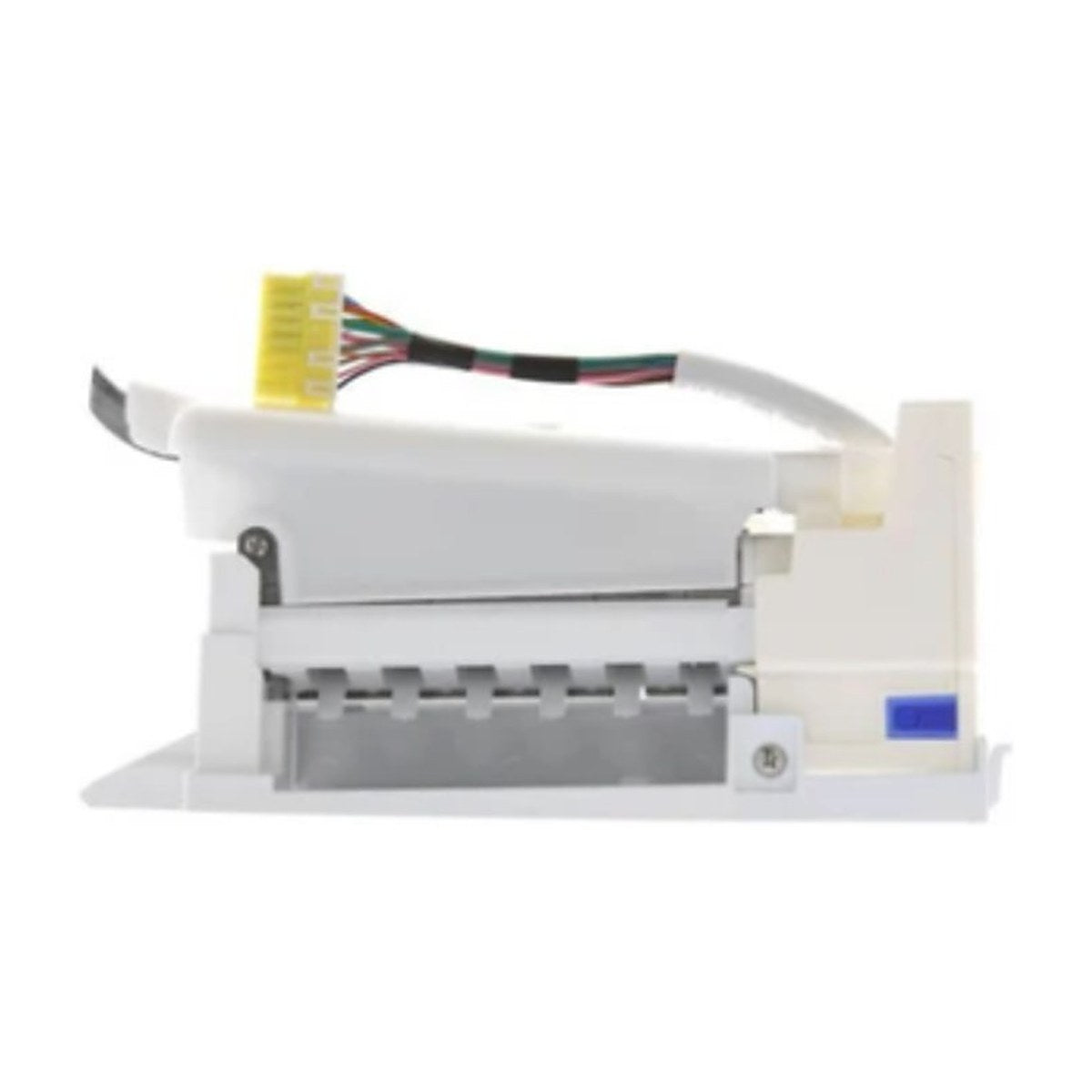

DA97-18859B Genuine Ice Maker Assembly for Samsung Fridges RF23M8080SR RF23M8090SG RF23M8580SG RF23HCEDBSR RF24FSEDBSG RF22NPEDBSG

Genuine Samsung ice maker DA97-18859B is the complete unit that freezes water into cubes and tips them into the ice bucket. It fits a large group of Samsung RF22, RF23 and RF24 series fridges, including the RF23M8080SR, RF23M8090SG, RF23HCEDBSR and RF24FSEDBSG. It also carries the cross reference DA97-13718B. With more than 340 model variants on file, the quickest check is the model label inside your fridge.

Samsung fridge not making ice? When to replace the ice maker

Inside the unit, a small motor and control board turn the tray once the water has frozen, dropping cubes into the bucket and calling for a refill. When the ice maker fails, you'll see an empty bucket, a tray full of ice that never ejects, a tray that never fills, or cubes fused into one block. Before you replace it, rule out the simple causes. A blocked or expired water filter, a frozen fill tube, low water pressure or a faulty inlet valve can all stop ice production even when the ice maker is fine.

Part details

• Genuine Samsung ice maker assembly, DA97-18859B
• Cross reference DA97-13718B
• Suits Samsung RF22, RF23 and RF24 series fridges on the fit list
• More than 340 model variants on file

Fitting the Samsung ice maker

Switch the fridge off at the wall and remove the ice bucket. The ice maker usually unclips or unscrews from the ice compartment and connects through a wiring plug, so note how it sits before you lift it out. Fit the new unit, push the plug together firmly and restore power. It can take several hours to make the first batch. Throw out the first few loads of ice.

Questions about this part

Is DA97-18859B the same as DA97-13718B?

DA97-13718B is listed as a cross reference for this ice maker, so if your old unit carries that number, DA97-18859B is the one to order. Double check your fridge model against the fit list or send it through the parts enquiry form.
