AJU74972401 Genuine 4 Way Inlet Valve for LG Top Load Washing Machines WTG8532WH WTG9032WF WTG9530S WTG9532VH WTG9532WH T1532AFPS5
- Original part no.
- AJU74972401
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

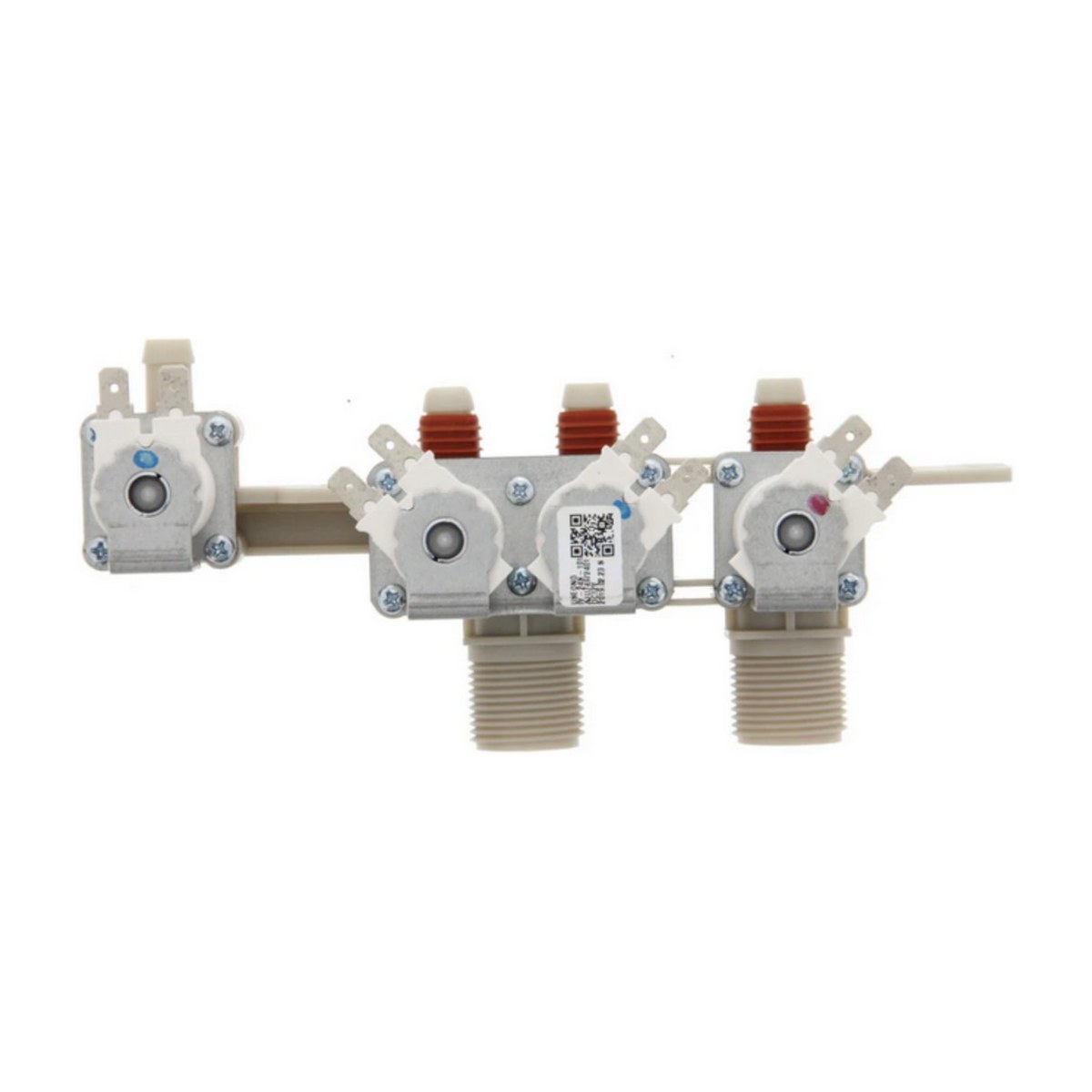

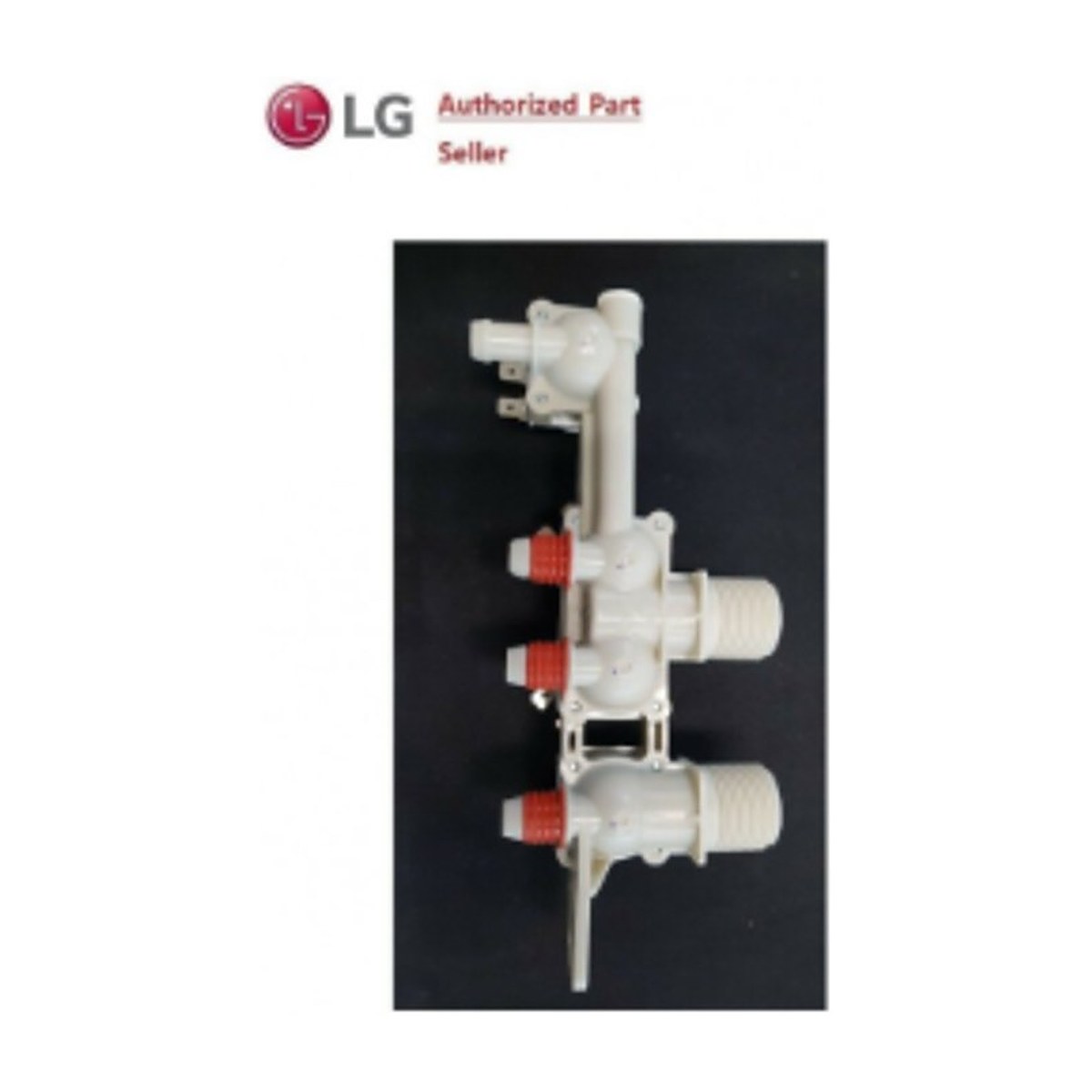

When an LG top loader won't fill, fills slowly or keeps running water when it's switched off, the inlet valve is often to blame. AJU74972401 is LG's genuine 4 way inlet valve for top load washers, on file for the WTG8532WH, WTG9032WF and WTG9530S, the WTG9532VH and WTG9532WH, and the T1532AFPS5. It mounts at the back of the machine where the hot and cold hoses connect.
LG washer not filling or overfilling
The inlet valve is a set of electrically operated solenoids that open on command from the control board to let hot and cold water in. A 4 way valve has several outlets, so the washer can send water along different paths, such as through the detergent and softener areas. Faults include no water entering the tub, a weak trickle, water that only comes in hot or only cold, or a tub that keeps filling with the power off. Blocked inlet screens can mimic a failed valve, so check them before ordering.
Part details
- Genuine LG part AJU74972401
- 4 way water inlet valve
- For LG top load washing machines
- Listed for T1532AFPS5, WTG8532WH, WTG9032WF, WTG9530S, WTG9532VH and WTG9532WH
| Outlets | 4 way |
|---|
Changing the inlet valve
Turn off both taps and unplug the washer, then disconnect the inlet hoses. Label each wire and small hose on the valve before you remove anything, as the outlets must go back in the same order. Fit the new valve, reconnect everything, and turn the taps on slowly while you check every joint for drips. Run a short fill to test hot and cold.
Questions about this part
Can I clean the old valve instead of replacing it?
If the only problem is a blocked filter screen at the hose inlet, cleaning it may restore the flow. If the coils are open circuit, the valve body leaks or it won't shut off, the valve needs replacing.
Specifications
| Original part number | AJU74972401 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | AJU74972401 |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
