AJU72992602 Genuine Fridge 1 Way Water Inlet Valve Dark Blue for LG Fridges GR-L218CSL GR-L219CSL GR-L258DS GF-D613PL GF-L613PL GR-L218ASL

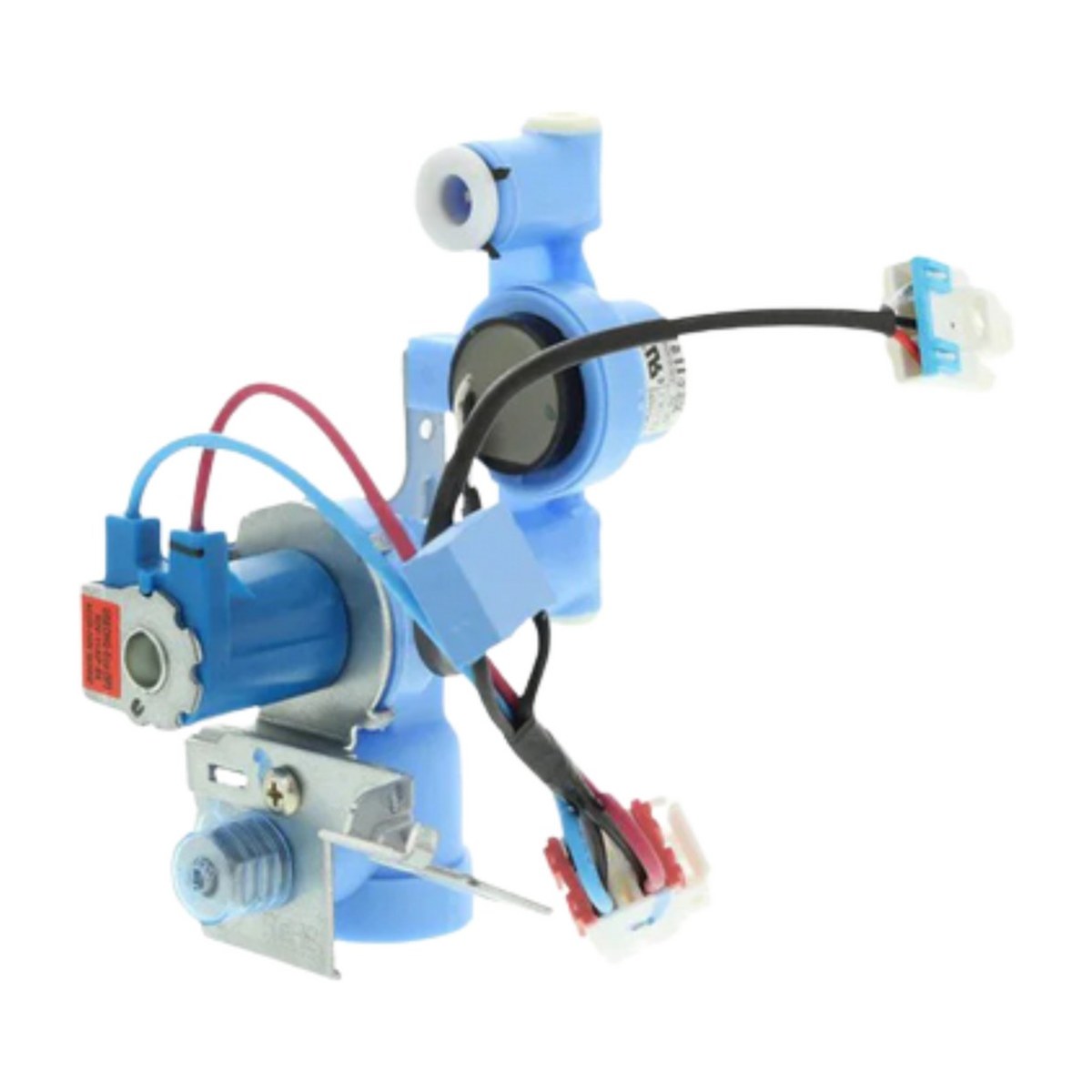

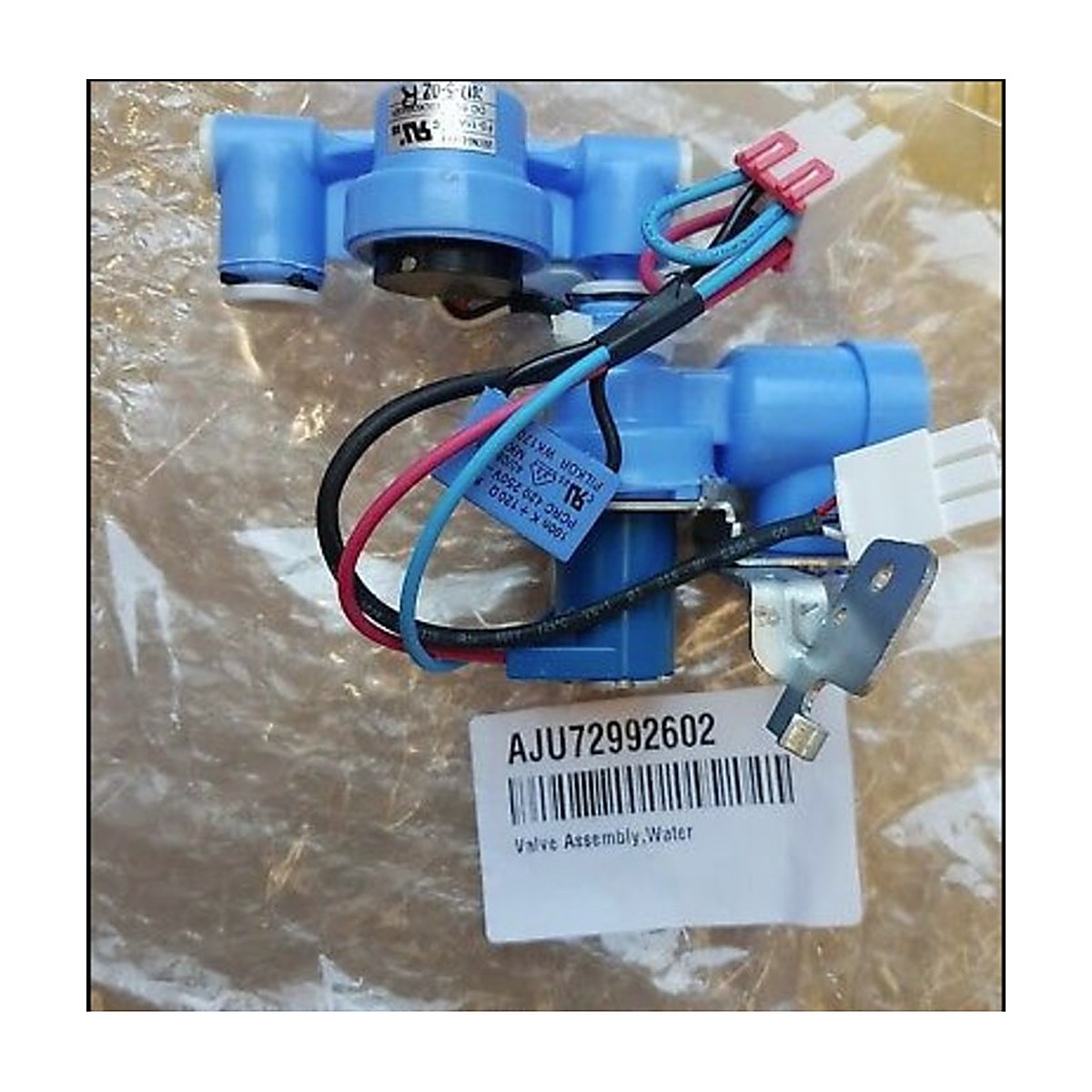

This dark blue single outlet water valve is genuine LG part AJU72992602, also listed under MJX41178905. It suits LG plumbed fridges including the GF-D613PL and GF-D613SL, the GF-L613PL, then the GR-L218ASL, GR-L218CSL and GR-L218STSL, the GR-L219CPL and GR-L219CSL, the GR-L219STS and GR-L219STSL, and finally the GR-L258DS. Match your model number from the label inside the fresh food section before you order.

Water not reaching the dispenser or ice maker on an LG fridge

A single outlet valve controls the whole water supply into the fridge. When the control board sends power to its coil, the valve opens and water flows on to the filter, dispenser and ice maker as the design allows. A burnt out coil means no water at all, while a valve that won't close fully can drip, overfill the ice tray or leave a puddle behind the fridge. A noisy hum without flow, or very slow dispensing even with a fresh filter, also points to the valve or a blocked inlet screen.

Part details

• Genuine LG part AJU72992602
• Also listed as MJX41178905
• Single outlet (1 way) water inlet valve
• Dark blue valve body
• Listed for LG GF-D613, GF-L613, GR-L218, GR-L219 and GR-L258DS models

Replacing a 1 way water valve

Isolate the water at the tap behind or under the fridge and switch the fridge off at the wall. Have a towel ready, as water will run from the line when it is undone. Take a photo of the valve's mounting and wiring, then swap it over, making sure the inlet line is fully seated. Restore the water slowly, check for leaks over a few minutes and dispense a couple of glasses to clear the air.

Questions about this part

Why does the colour matter?

Colour is one quick way to tell similar looking LG valves apart. Matching the dark blue body, the part number on your old valve and your model number gives the best confirmation before ordering.
