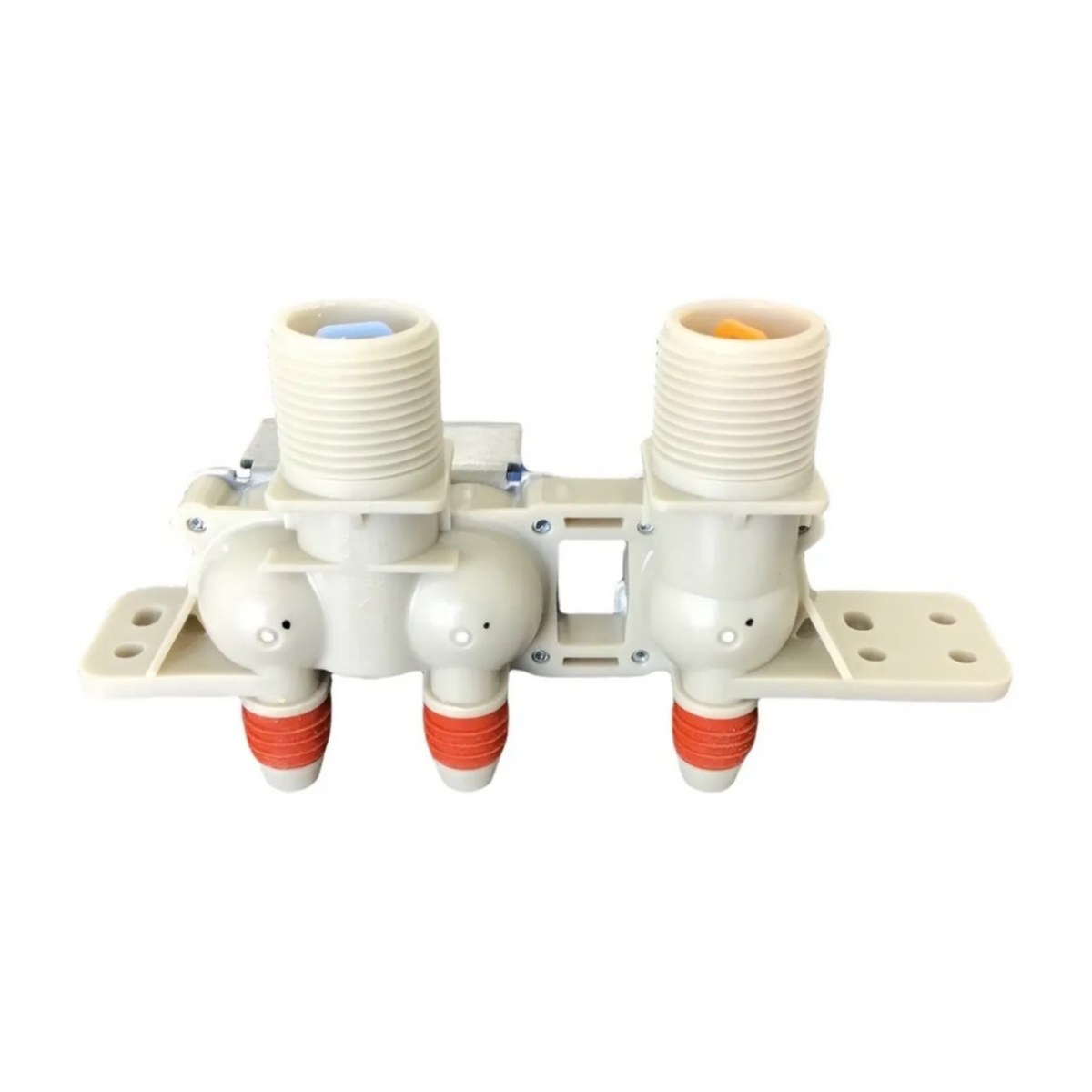

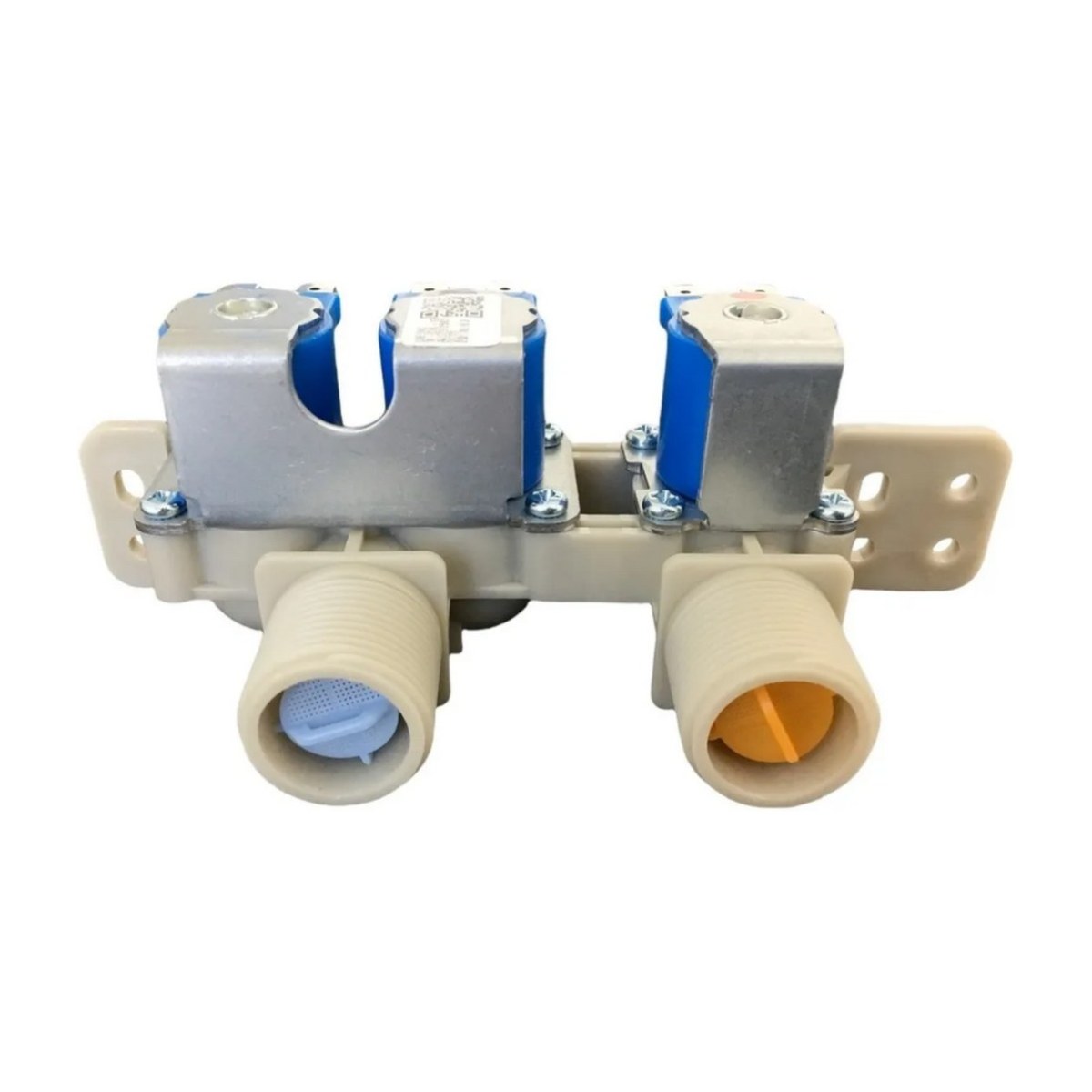

AJU72912501 Genuine 3 Way Inlet Valve 12V DC for LG Top Load Washing Machines WT-R851 WT-R852 WT-R902 WT-H9506 WT-H9556 WTG8520 5221EA1001H

For LG top load washing machines, AJU72912501 is the genuine 3 way water inlet valve, fitted with 12V DC coils. It also covers the LG numbers 5221EA1001H and 5221EA1001J. Listed models include the WT-R851, WT-R852 and WT-R902, the WT-H9506 and WT-H9556, and the WTG8520. LG has used several different inlet valves across its top loaders, so check the number on your old valve too.

LG top loader not filling or overfilling?

The inlet valve sits where the hoses connect at the back of the machine. When the control board energises one of its coils, that outlet opens and water flows into the machine. With three outlets, the board can send water along separate paths as each stage of the program needs it. If a coil fails or the valve sticks, you may see no water entering, only hot or only cold, very slow filling, or water trickling in even when the washer is turned off. Blocked inlet screens can mimic a faulty valve, so check those first.

Part details

• Genuine LG inlet valve, part AJU72912501
• 3 way valve with 12V DC coils
• Linked LG numbers 5221EA1001H and 5221EA1001J
• Listed for WT-H9506, WT-H9556 and WTG8520
• Also suits the WT-R851, WT-R852 and WT-R902

Swapping the inlet valve

Turn off both taps and switch the washer off at the wall. Disconnect the inlet hoses, then label each wire and internal hose before removing the old valve. Mixing up the connections can send water to the wrong place, so match each plug to the coil it came off. Clean the inlet screens, refit the hoses and test hot and cold fills for leaks and correct filling.

Questions about this part

Can I use a 240V valve instead?

No. This LG valve uses 12V DC coils, powered at low voltage by the machine's control board. A 240V AC valve won't work correctly on these washers, so stick with AJU72912501 or one of its linked LG numbers.
