AJB73816005 Genuine Stator Assembly for LG Washing Machines WTG1032WF WTG1432WH WTG1432VH WTG9032WF WTG8532WH WTG9532WH WTG9530S WTR1132BF
- Original part no.
- AJB73816005
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

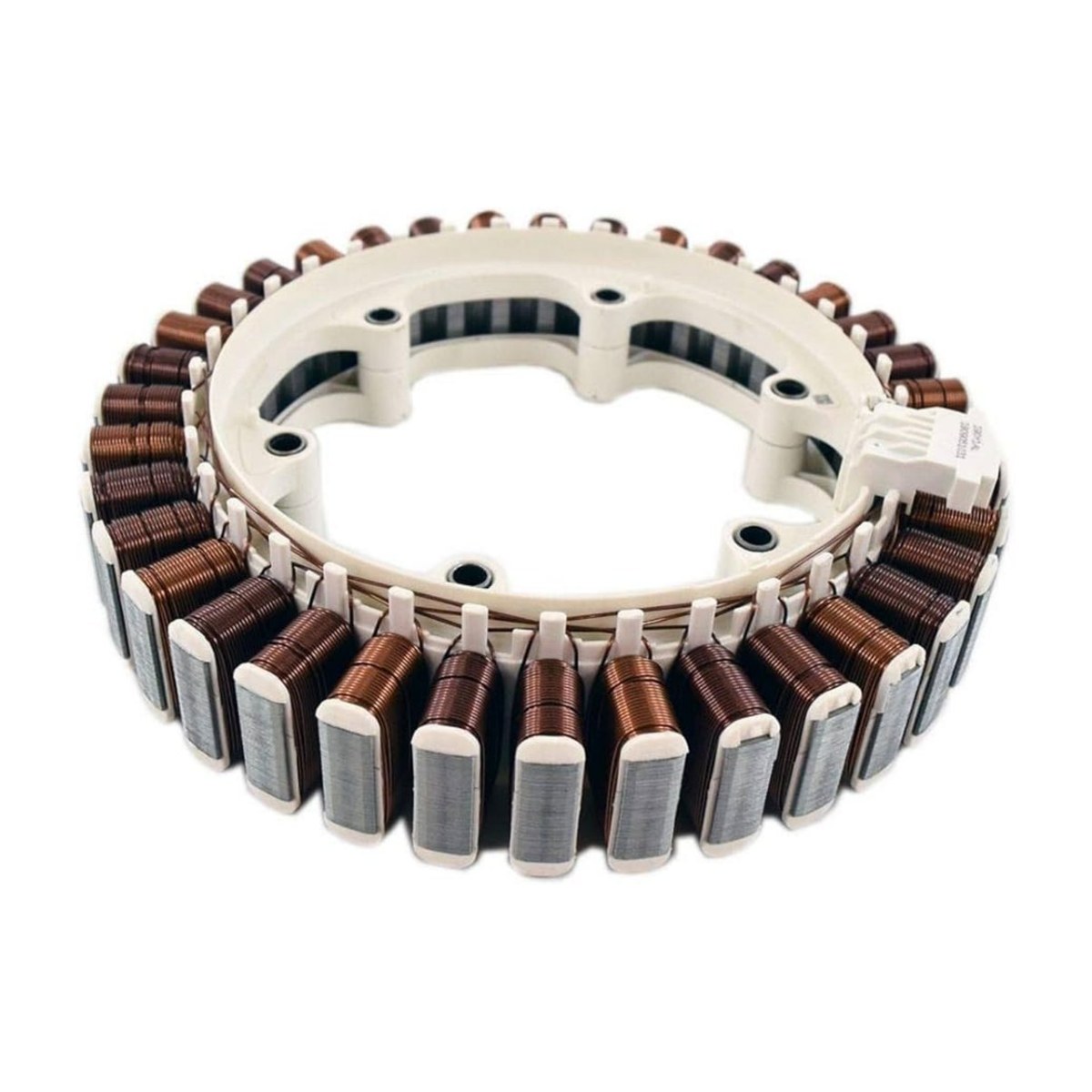

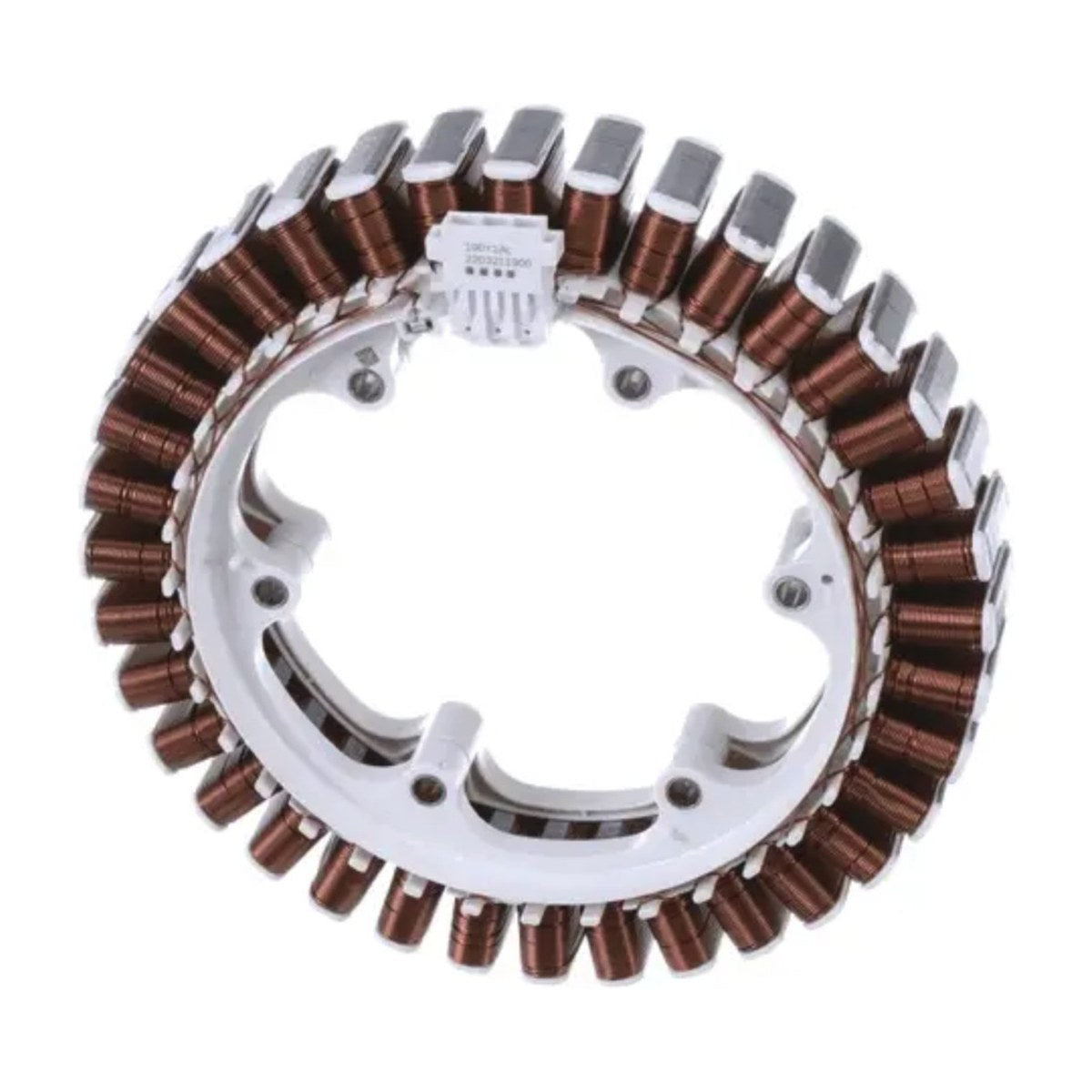

Drum won't turn, or the machine just hums? AJB73816005 is a genuine LG stator assembly, the fixed winding half of the direct drive motor in LG washing machines. Models on file are mainly WTG top loaders, including the WTG1032WF, WTG1432WH, WTG1432VH, WTG9032WF, WTG9532WH and WTG8532WH, along with the WTR1132BF. Fitting the factory stator means the coil layout and mounting match what came out of your machine.
Symptoms of a faulty LG washer stator
A direct drive washer has no belt or gearbox. The stator is bolted to the outer tub and its copper windings create a magnetic field that turns the rotor, which is fixed straight onto the drum shaft. When a winding burns out or the stator gets damp or cracked, the drum may stop turning, jerk or only rock back and forth, the machine may hum without moving, or it will stop and show a motor fault. Worn bearings, a faulty sensor or a control board problem can look much the same, so it pays to test before replacing.
Part details
- Genuine LG stator assembly, part AJB73816005
- For LG direct drive washing machines
- 13 LG models on file, mostly WTG top loaders
- Includes WTG1432WH, WTG9032WF and WTR1132BF
Replacing the stator
This is a job for a confident repairer. Switch off at the wall, turn off the taps and drain the machine before removing panels to reach the motor. Take out the rotor bolt and rotor, unplug the stator connector and undo the mounting bolts. Inspect the rotor magnets and connector pins while it's apart. Tighten the bolts evenly on reassembly, then run a test cycle.
Questions about this part
How do I know it's the stator and not the board?
A repairer will normally measure the winding resistance across the stator terminals and check the hall sensor before condemning either part. A burnt smell, scorching or a cracked stator body is a strong sign. If the stator tests fine, the control board or wiring is the next suspect.
Specifications
| Original part number | AJB73816005 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | AJB73816005 |
| Appliance | Washing Machine Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
