AHL73855301 Genuine Rotor Assembly for LG Washing Machines, LG Direct Drive Motor Rotor Replacement
- Original part no.
- AHL73855301
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

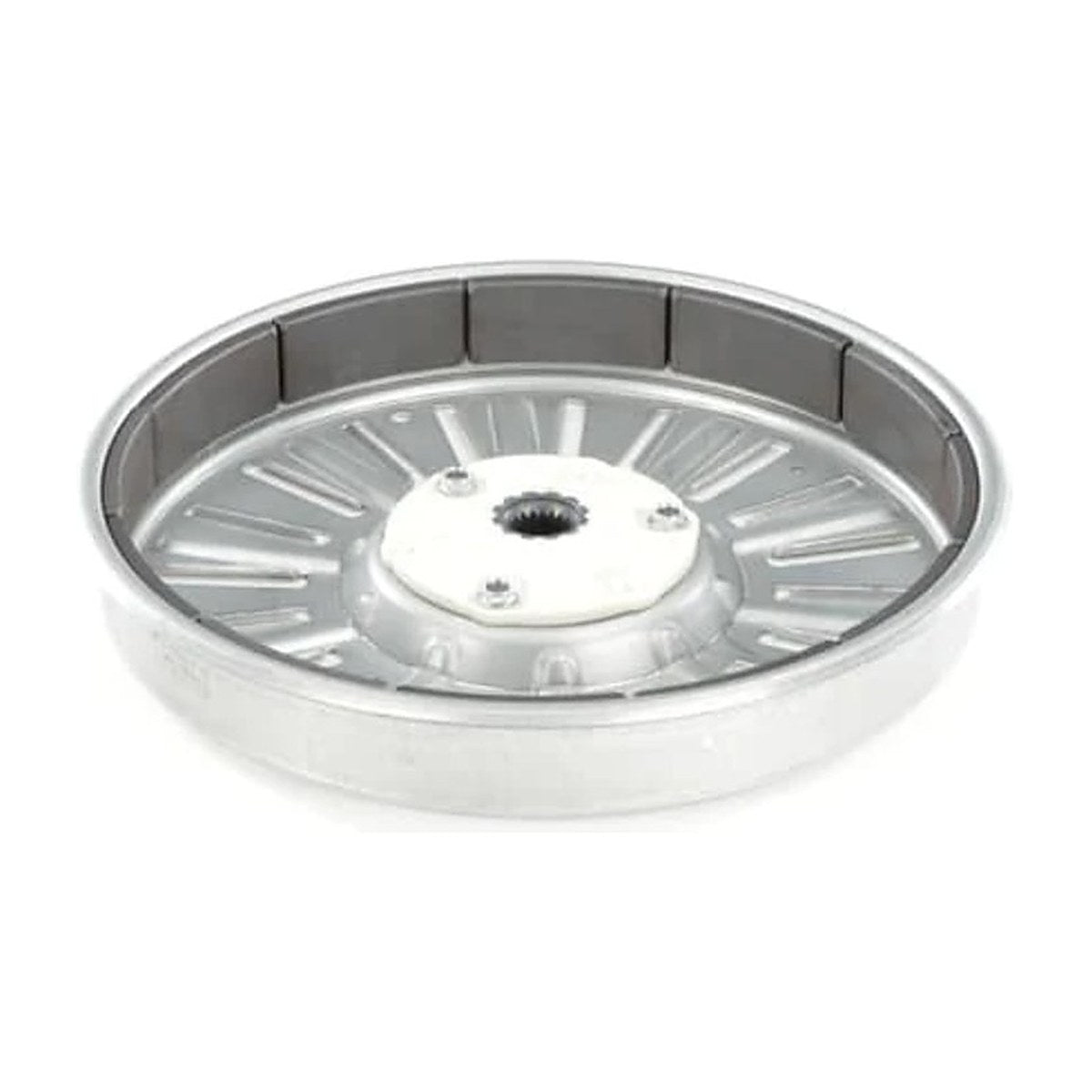

AHL73855301 is a genuine LG rotor assembly. On LG direct drive washing machines the rotor is the round, magnet-lined outer part of the motor, attached to the drum shaft, which spins around the fixed stator. We don't hold a model list for this number, and LG rotors vary in size and fixing, so check AHL73855301 in the parts list for your washer before ordering.
LG direct drive washer noisy or not spinning?
The rotor and stator together make up LG's direct drive motor, with no belt in between. When the rotor is damaged you might hear loud knocking or grinding during spin, see the drum fail to turn, or get motor related error codes. Magnets can come loose or crack, and the hub that grips the shaft can wear so the rotor slips. A loose rotor bolt can make similar noises, so check it first. Worn bearings also cause noise, so make sure the drum turns smoothly by hand before deciding.
Part details
- Genuine LG rotor assembly AHL73855301
- Outer rotor for LG direct drive motors
- For LG washing machines
- No models on file, match the part number
Fitting the new rotor
Unplug the washer and remove the rear or bottom panel to reach the motor, depending on the model. Undo the centre bolt and pull the rotor straight off the shaft, keeping the magnets away from metal filings. Fit the new rotor, tighten the bolt firmly, and turn the drum by hand to check it spins freely before running a spin test.
Questions about this part
Do I need to replace the stator as well?
Only if it's damaged too. Check the stator windings for burn marks and the plastic for cracks. If it looks and tests fine, the new rotor can be fitted on its own.
Specifications
| Original part number | AHL73855301 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | AHL73855301 |
| Appliance | Washing Machine Parts |
| Shipping weight | 1.5 kg |
