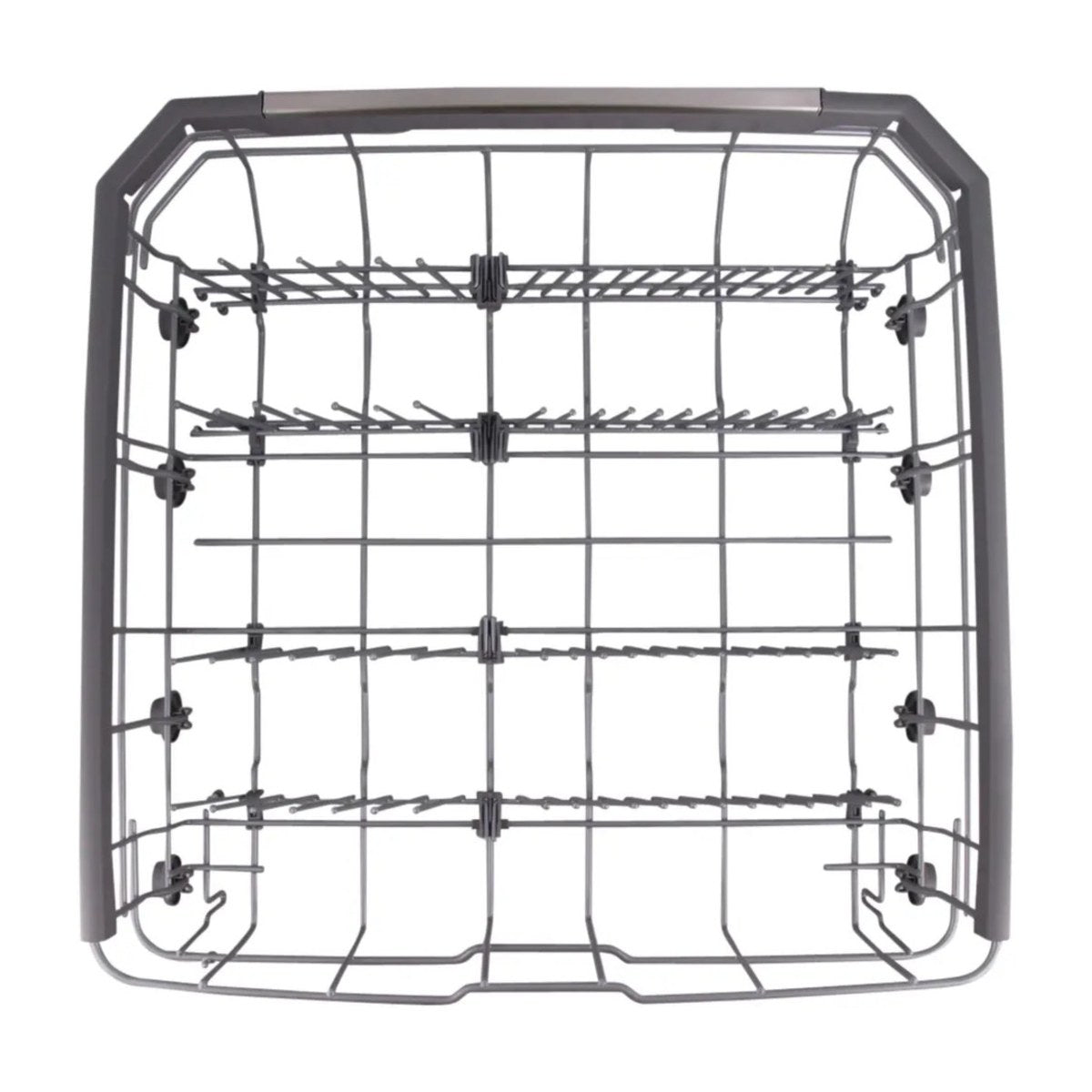

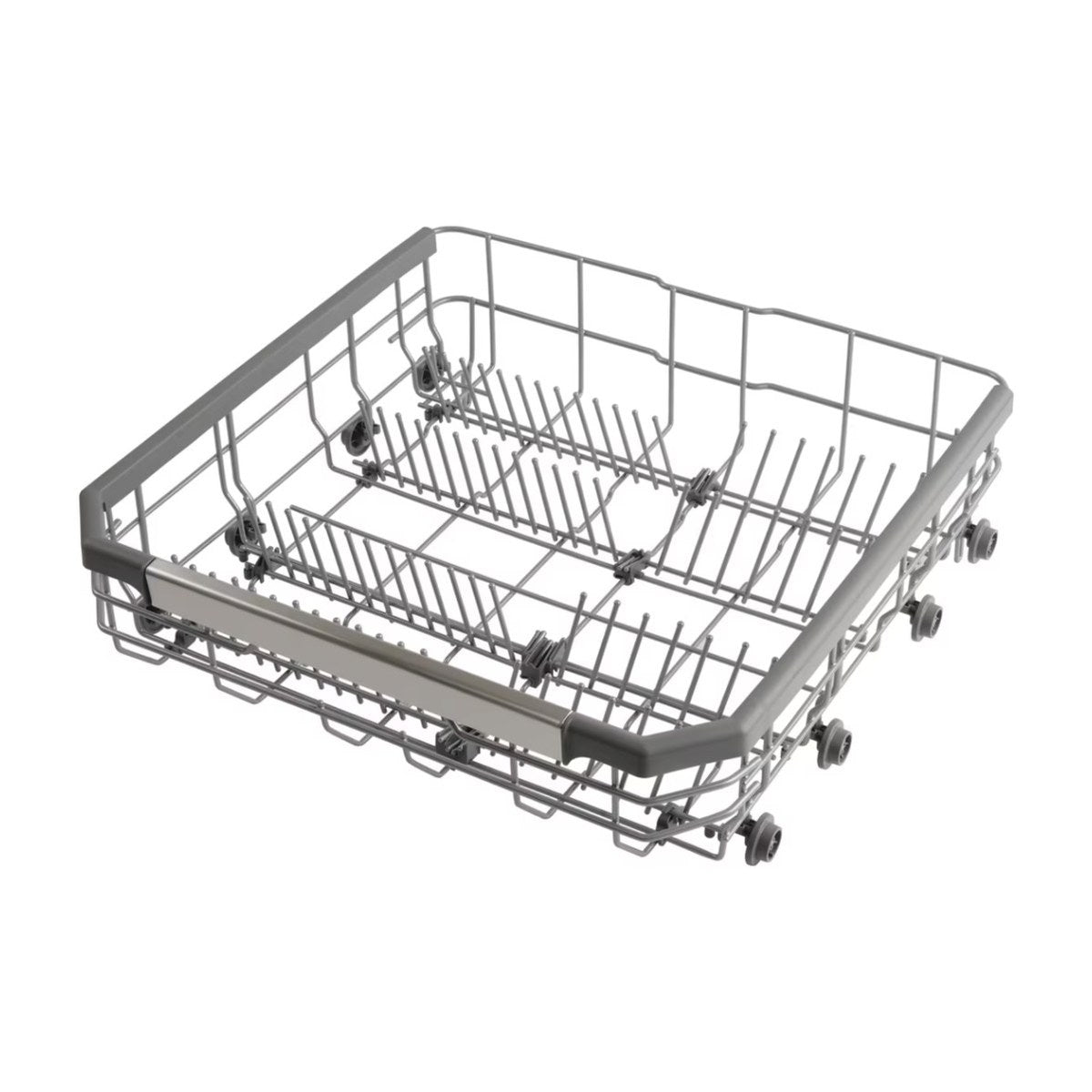

AHB73129802 Genuine Dishwasher Lower Rack Assembly for LG Dishwashers XD3A15BS XD3A25PS XD3A25BS XD3A15NS XD4B24PS XD5B14PS XD5B14WH

Part AHB73129802 is the genuine lower rack assembly for LG dishwashers, the bottom basket that carries plates, pots and pans. It is also listed as AHB73129702. The rack suits the XD3A15BS, the XD3A15MB and XD3A15NS, then the XD3A25BS, XD3A25MB and XD3A25PS, plus the XD4B24PS, and the XD5B14PS and XD5B14WH. Check the model code on your dishwasher before ordering, as racks are not always shared between LG ranges.

Rusty, broken or wobbly LG dishwasher bottom basket

The lower rack rolls in and out on the door and tub runners and holds the heaviest load in the machine. Its wires are coated to stop rust, and once that coating chips or cracks, rust spots spread and stain dishes. Tines can snap, wheels can wear or fall off, and the frame can bend so the rack drags or derails. A damaged rack can also stop the lower spray arm from turning, which means poor results on the bottom load. Replacing the whole assembly is often simpler than chasing individual broken tines.

Part details

• Genuine LG part AHB73129802
• Also listed as AHB73129702
• Lower rack (bottom basket) assembly
• Listed for LG XD3A15, XD3A25, XD4B24 and XD5B14 models

Swapping the lower rack

Pull the old rack all the way out and lift it clear of the rails. Before the new one goes in, move across any removable inserts you want to keep, such as the cutlery basket, if they are not included. Sit the new rack's wheels on the rails, push it in gently and check it rolls smoothly and the spray arm underneath can still turn freely.

Questions about this part

Where is the model number on an LG dishwasher?

Open the door and look for a label on the side edge of the door or the inner tub frame. The model starts with letters and numbers such as XD3A25 or XD5B14, followed by two more letters.
