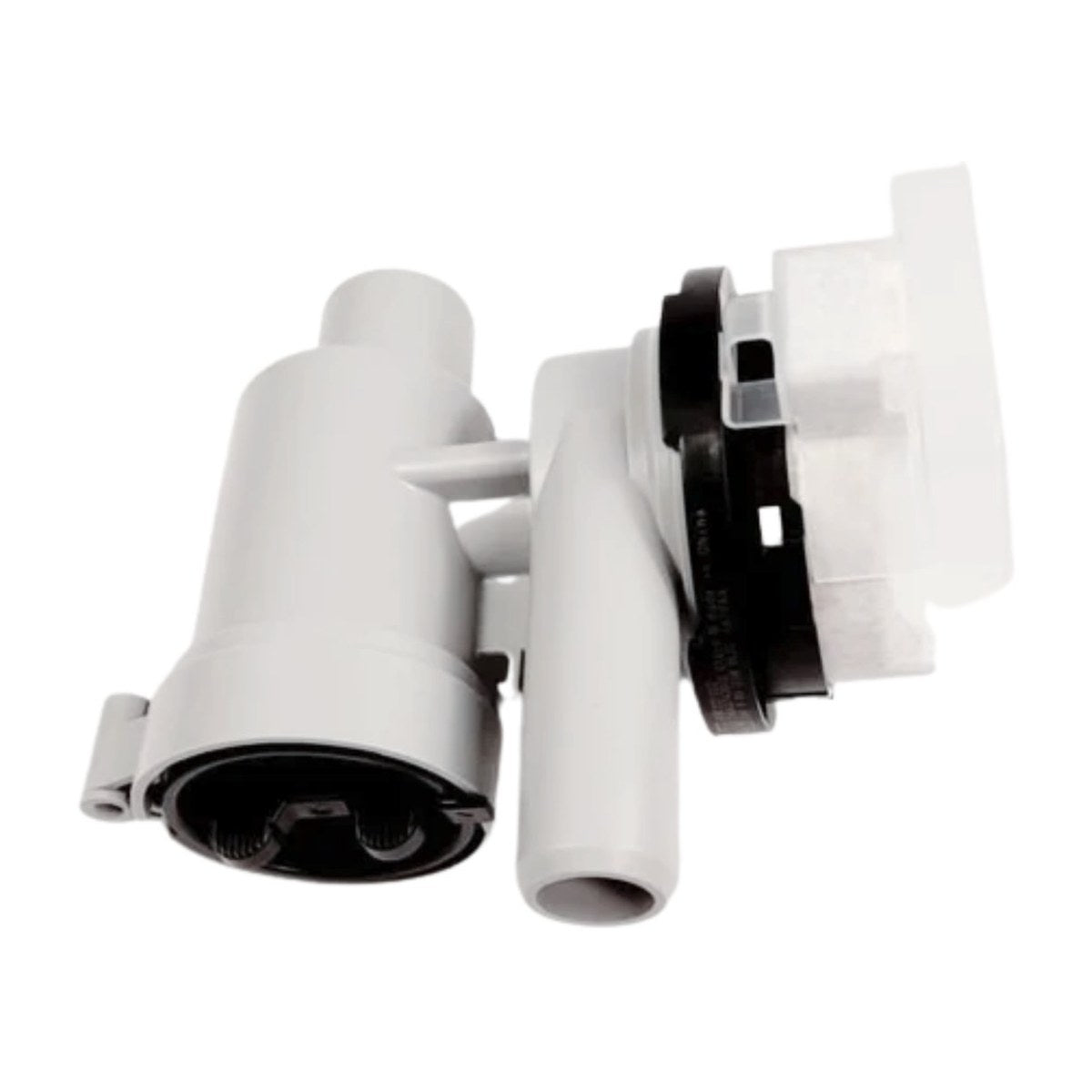

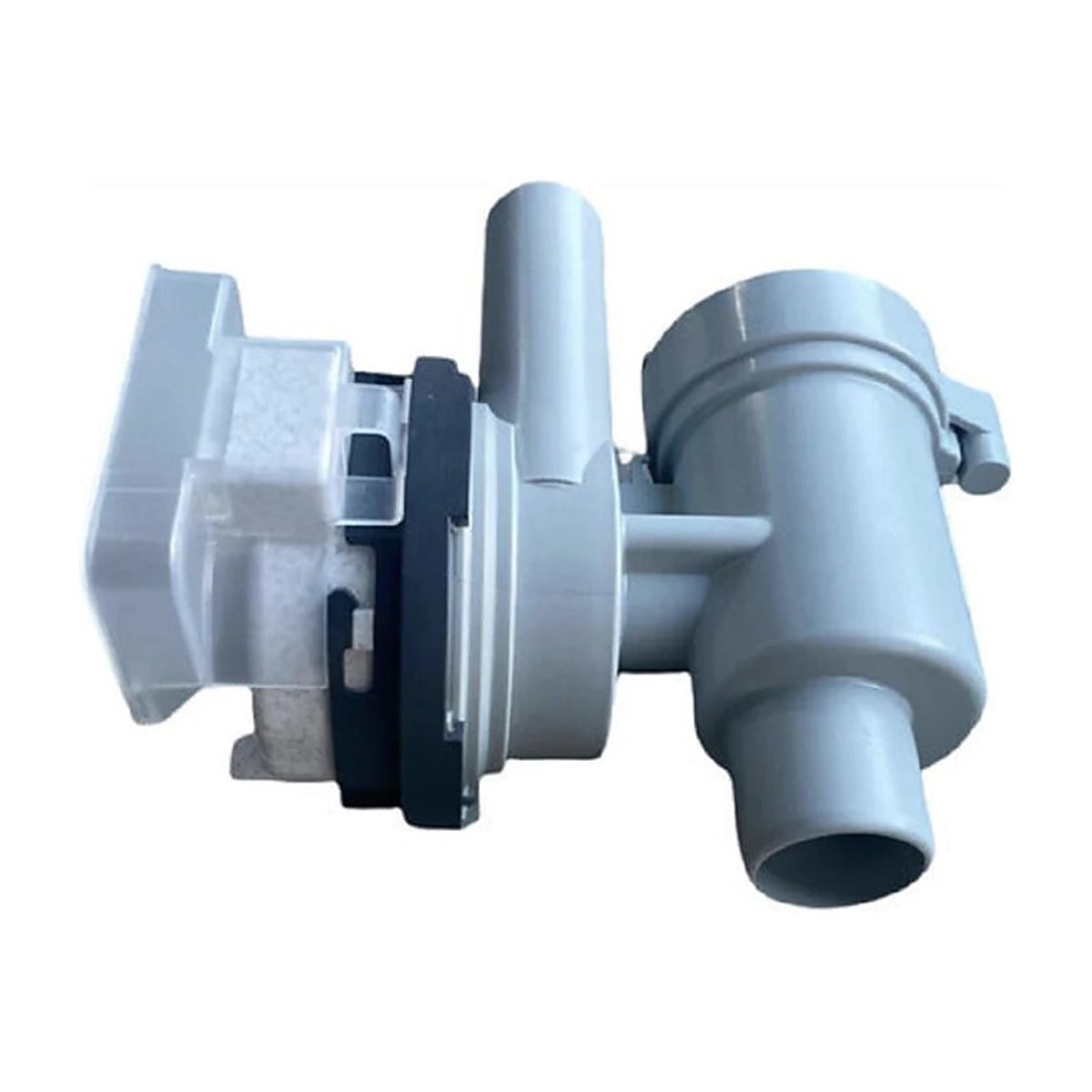

AHA75693503 Genuine Drain Pump for LG Top Load Washing Machines WTG6520 WTG7520 WTG8521 WTG9020V WTG6534W WTG8020W WTG9034WF AHA75693501

Here is the genuine LG drain pump AHA75693503 for top load washers in the WTG family. It is listed for the WTG6520, WTG7520, WTG8521, WTG8020W, WTG9020V, WTG6534W and WTG9034WF. LG has also used the numbers AHA75693501 and AHA75693504 for this pump, so check the label on your old one against all three.

Signs your LG top loader drain pump has failed

At the end of the wash and after each rinse, the drain pump pushes water out of the tub and up the outlet hose. A blocked or failed pump leaves water sitting in the bowl, stops the spin from starting and usually brings up a drain error such as OE on the display. A pump that hums without moving water points to a jammed impeller or a weak motor, while silence can mean the coil has failed. Grinding or rattling while it drains often means a coin, hairclip or button has damaged the impeller.

Part details

• Genuine LG drain pump AHA75693503
• Cross referenced to AHA75693501 and AHA75693504
• Suits LG WTG series top load washing machines
• Listed for seven WTG models

Before you swap the pump

Unplug the machine and turn off the taps. Drain the tub into a bucket or tray first, as the pump housing will be full of water. Check the pump inlet and hose for socks, coins or lint, because a blockage can mimic a dead pump. When fitting the new pump, move the wiring plug and hose clamps across one at a time, then run a drain and spin test and look for leaks.

Questions about this part

Is this the same pump as AHA75693501?

Yes. AHA75693501 and AHA75693504 are both cross referenced to this pump, so if the label on your old pump shows either number, AHA75693503 is the one to order.
