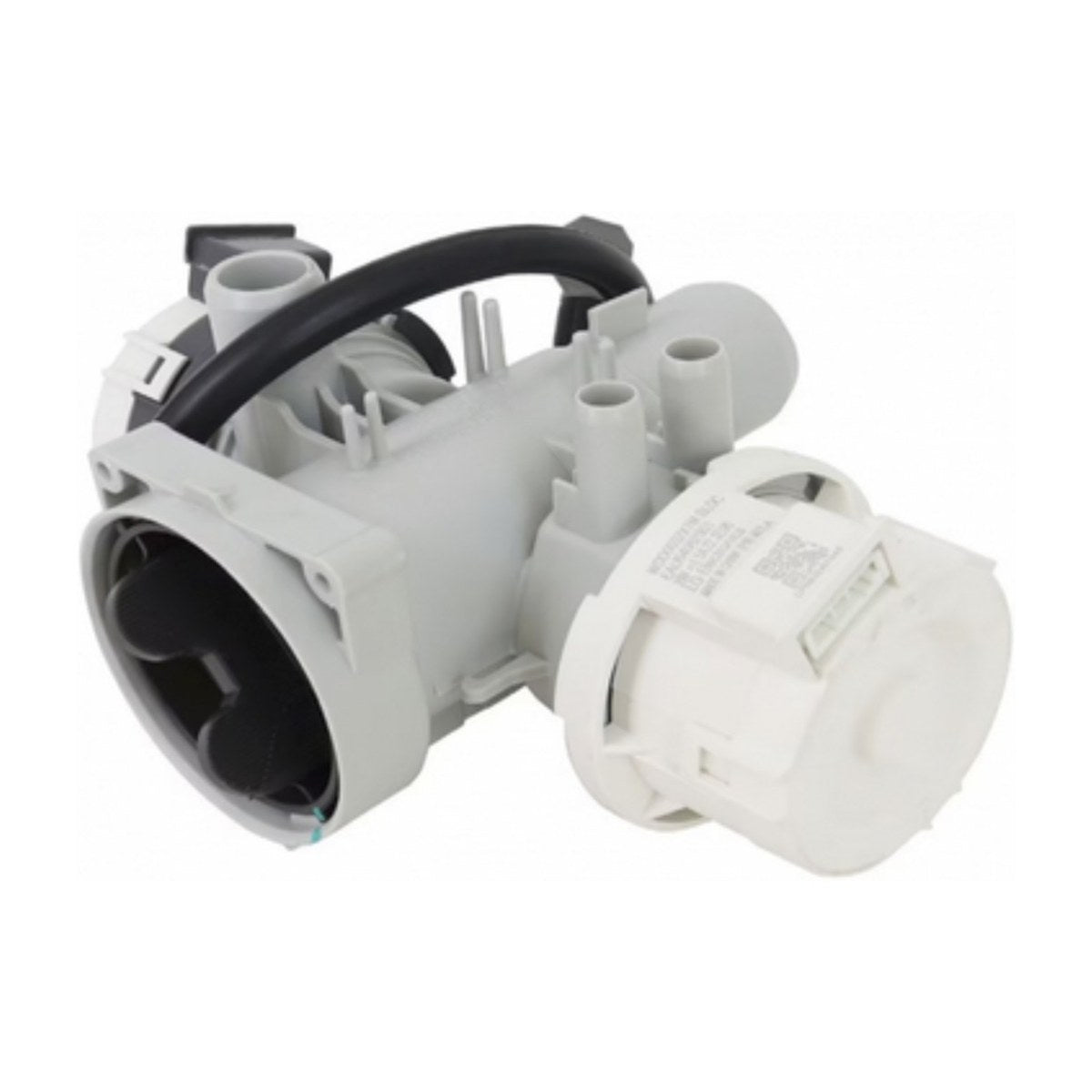

AHA75693426 Genuine Drain Pump Assembly for LG Washing Machines WXL-1014B WXL-1014E WXL-1014W WXLC-1116B, LG Washer Drain Pump

Water sitting in the drum after the cycle? AHA75693426 is LG's genuine drain pump assembly, the part that empties the tub of an LG washing machine at the end of each wash and rinse. It's listed for the WXL-1014B, WXL-1014E and WXL-1014W, along with the WXLC-1116B. As a complete genuine assembly it goes straight in where the factory pump came out on those models.

Why an LG washer won't drain

When the program reaches a drain stage, the pump motor spins an impeller that pushes water out through the drain hose. If the pump fails, water stays in the drum, the machine stops mid cycle or refuses to spin, and clothes come out soaking. A humming pump that moves no water, loud grinding or rattling during draining, or a burnt smell all point to it. Blockages cause the same complaint, so clear any debris trap or filter and check the drain hose for kinks before deciding the pump itself has given up.

Part details

• Genuine LG drain pump, part AHA75693426
• Supplied as an assembly
• For LG washing machines
• Listed for the WXL-1014 range in B, E and W versions, plus WXLC-1116B

Fitting the replacement pump

Turn the washer off at the wall and close the taps. Drain any water left in the machine into a shallow tray before disconnecting anything. Take a photo of the wiring plug and hose clamps, swap the pump across and make sure every clamp sits squarely. Run a rinse and spin to check for leaks underneath.

Questions about this part

My washer hums but won't drain. Is it the pump?

Often, but not always. A humming pump that moves no water can be jammed by a coin or hair clip, which you may be able to clear. If the impeller turns freely and the hose is clear but water still won't pump out, the pump has likely failed.
