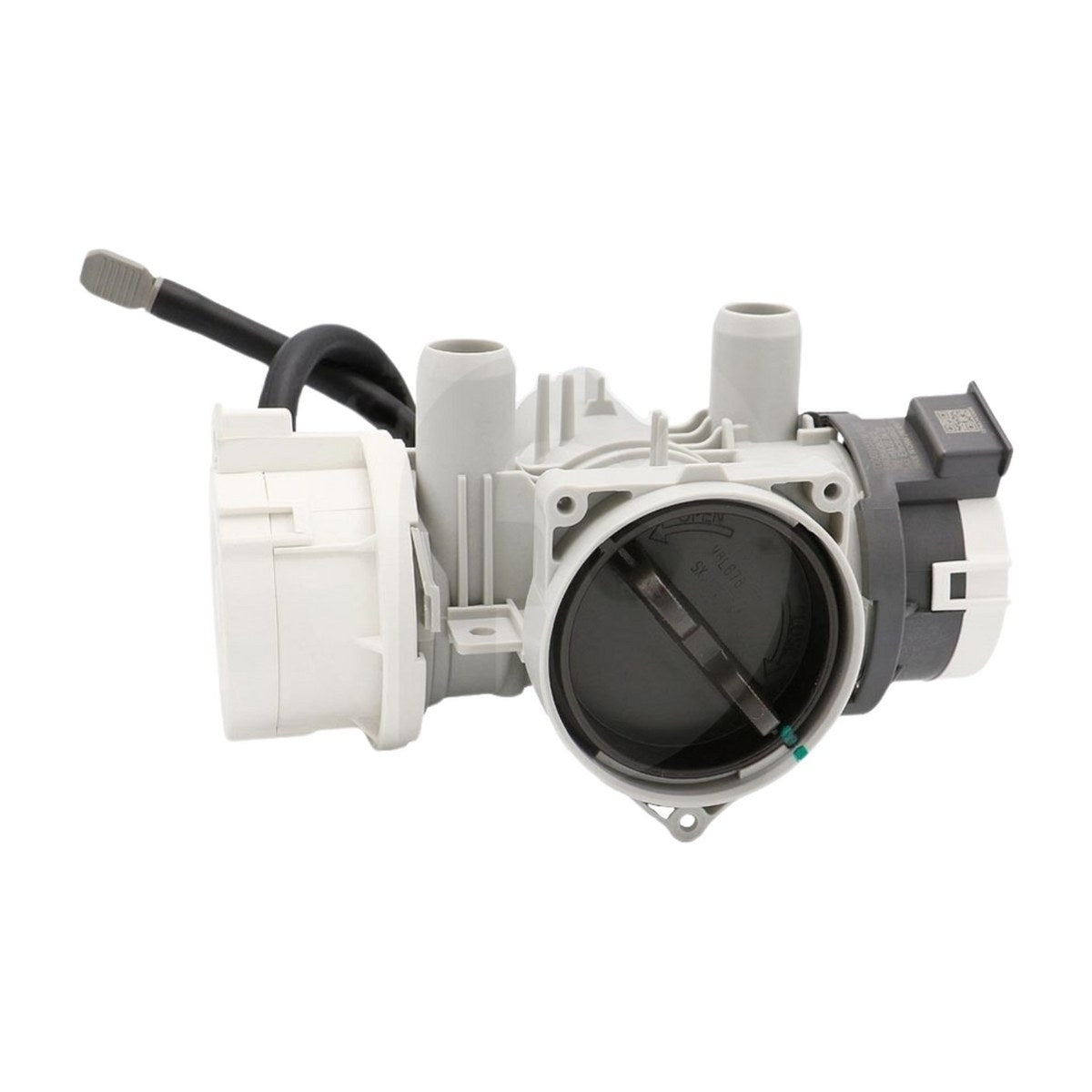

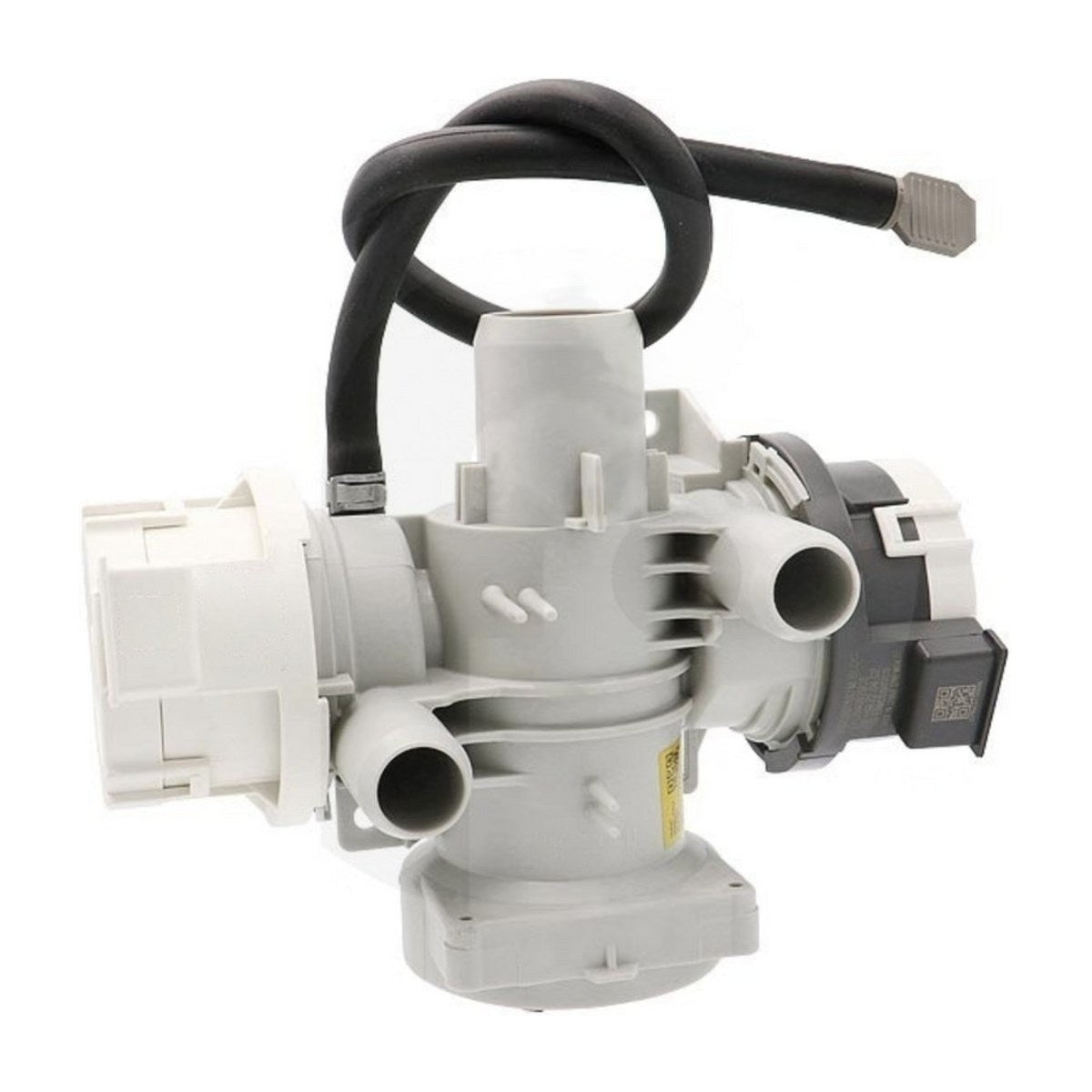

AHA75693421 Genuine Drain Pump for LG Washing Machines and Washer Dryers WV9-1610W WV10-1410W WVC9-1412W WWT-1209B WWT-1209FGB

If your LG washer finishes with water still in the drum, the drain pump is a prime suspect. AHA75693421 is the genuine LG pump for LG washing machines and washer dryer combos, listed for WV9 and WV10 models such as the WV9-1410W and WV10-1412B, WVC9 combos like the WVC9-1412W, and the WWT-1209B. Compare the number on your old pump with this one before ordering.

LG washing machine not draining? Check the pump

The drain pump pushes the used water out of the tub and up the drain hose at the end of each wash and rinse. When it fails, the washer may stop with water left inside, show a drain error, refuse to spin or make a loud humming or grinding sound as the motor struggles. Before replacing the pump, clear the pump filter and check the drain hose for kinks or blockages, as a coin, hair tie or sock can stop it just as easily. If the impeller is broken or the motor won't turn, fit a new pump.

Part details

• Genuine LG part AHA75693421
• Drain pump for washing machines and washer dryers
• Listed for LG WV9, WV10, WVC9 and WWT-1209 series models

Fitting tips for the drain pump

Unplug the washer and turn off both taps. Drain the leftover water through the filter or emergency hose into a shallow tray, keeping old towels handy. Photograph the wiring and hose clips on the old pump, then transfer them to the new one in the same positions. Check every clamp is tight and run a rinse and spin to confirm there are no leaks.

Questions about this part

My washer won't drain. Is it definitely the pump?

Not always. A blocked pump filter, kinked drain hose or foreign object can cause the same fault, so clear those first. If the pump still hums without moving water, or stays silent when it should run, the pump itself is likely faulty.
