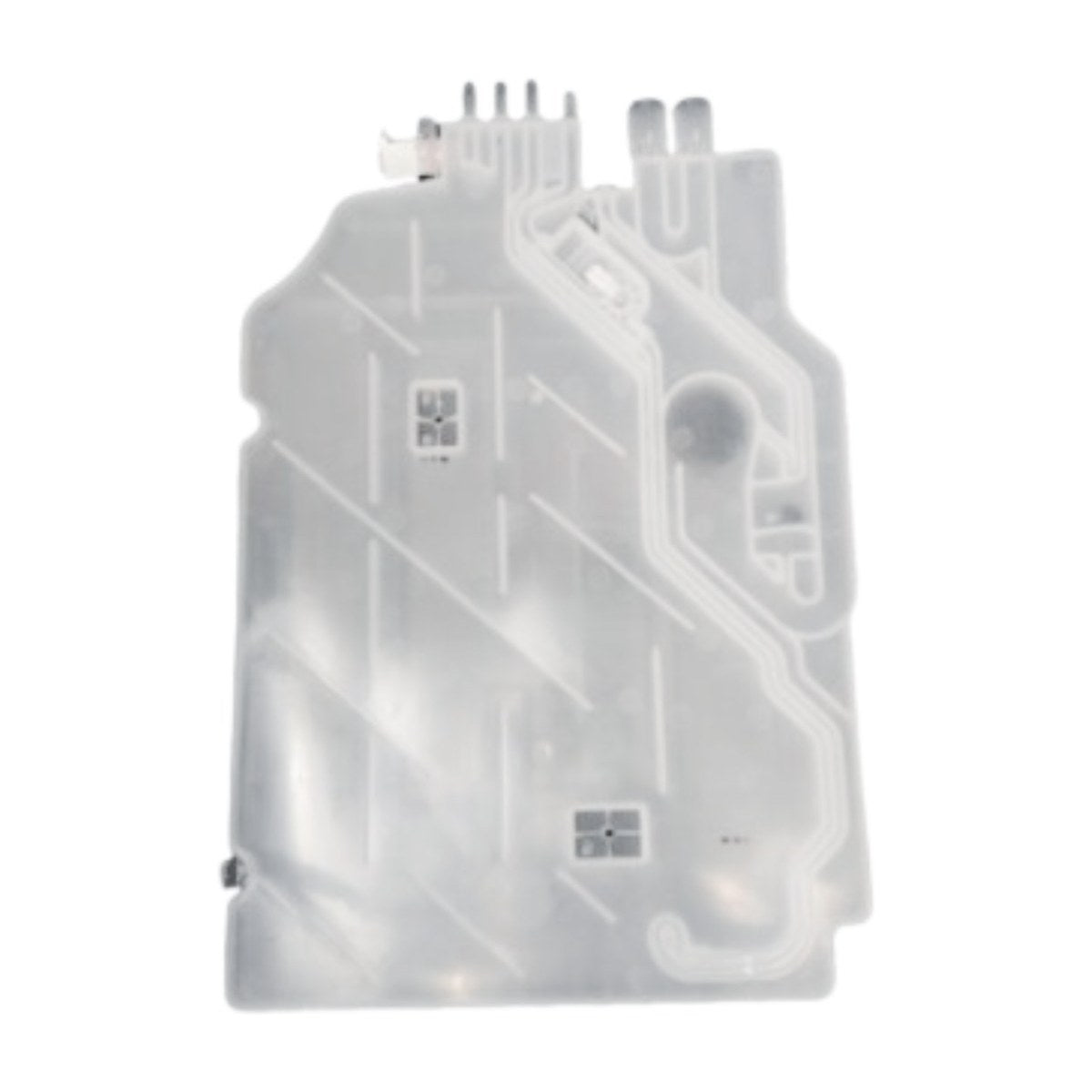

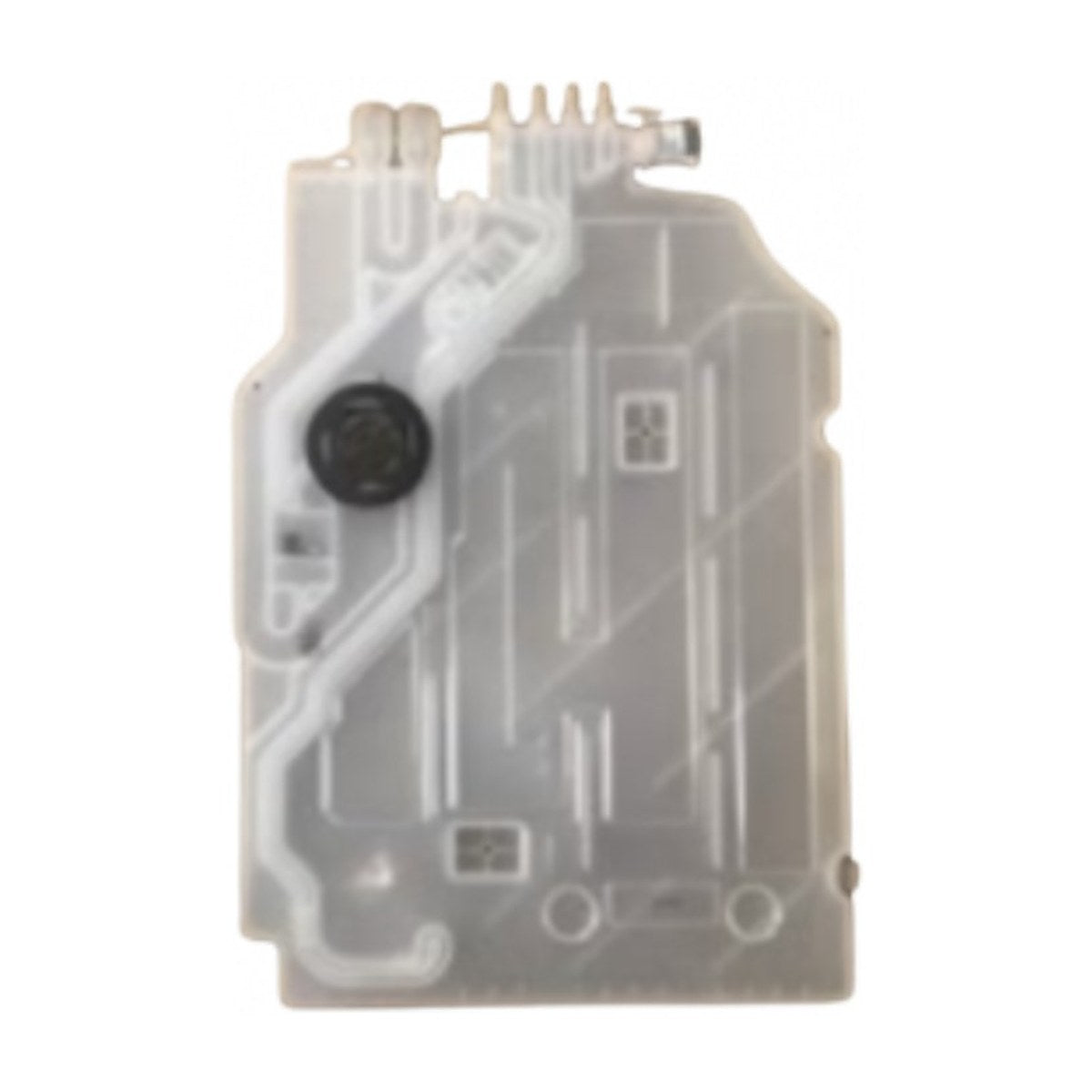

AGM76251804 Genuine Water Jacket Assembly for LG Dishwasher XD5B14PS, Dishwasher Water Chamber Also Linked to AGM76251801

LG calls this part a water jacket, and you will often see it described as a water chamber. AGM76251804 is the genuine LG assembly for the XD5B14PS dishwasher, with AGM76251801 also linked to it. If you have traced a leak or a fill fault back to this moulded assembly, this is the replacement part to order.

What the water jacket does in an LG dishwasher

The water jacket is a moulded assembly that sits against the tub and forms part of the dishwasher's water path, which is why a crack or a failed seal shows up as a leak. It can crack from age, an impact while the machine is being moved, or overtightened fittings, and its seals and hose connections can start to weep. Look for water pooling under the machine, leak errors, or staining on the side of the tub, and inspect the jacket closely if the hoses and pump check out.

Part details

• Genuine LG part AGM76251804
• Linked number AGM76251801
• Water jacket parts assembly, also called a water chamber
• Listed for LG XD5B14PS

Fitting a dishwasher water jacket

This is a more involved repair, usually needing the dishwasher out of its cavity and possibly a side panel off. Switch off at the wall, turn off the tap and have towels ready. Photograph the hose and wiring connections before unclipping anything, move them across one at a time, and check every seal is seated. Run a full cycle with the kickplate off so you can spot leaks early.

Questions about this part

Is AGM76251801 the same part?

AGM76251801 is linked to this water jacket as a cross reference. This assembly, AGM76251804, is listed for the LG XD5B14PS. If your dishwasher is a different model, send it through the parts enquiry form so we can check before you order.
