AGB74152501 Genuine Upper Spray Arm Nozzle Assembly for LG Dishwashers XD3A15BS XD3A25MB XD4B24PS XD5B14PS XD5B24PS XD3A15NS XD4B15PS
- Original part no.
- AGB74152501
- Part grade
- Genuine
- Appliance
- Dishwasher Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

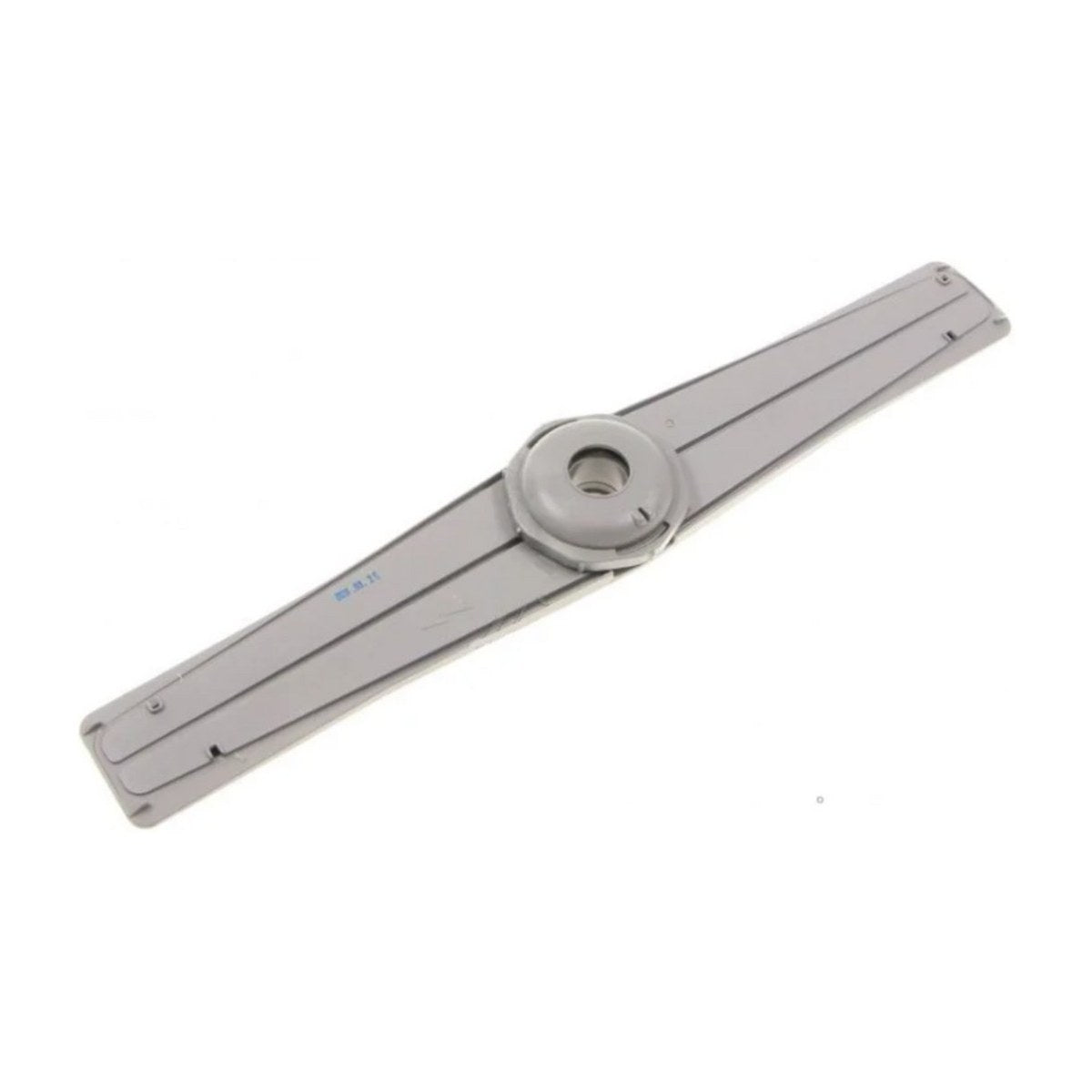

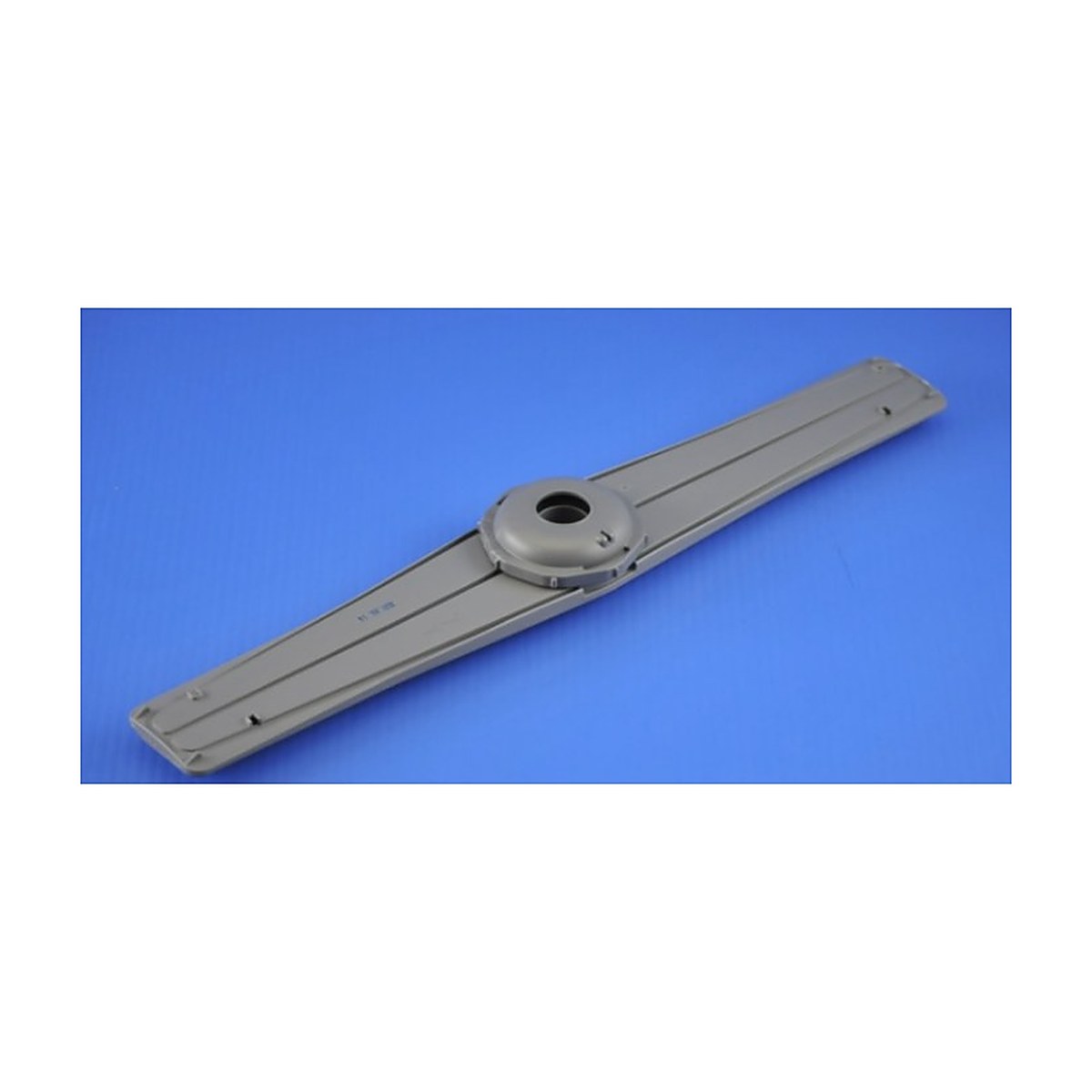

LG lists this upper spray arm as a nozzle assembly, part AGB74152501. It's a genuine LG part for the XD3A15BS and XD3A15MB, the XD3A25MB and XD3A25PS, the XD4B24PS, the XD4B15PS and XD4B14PS, and the XD5B24PS along with the XD5B14PS. The number AGB74152502 is also linked to it, so either number on your old arm or paperwork leads to this part.
Top rack of the LG dishwasher not cleaning
The upper arm spins beneath the top basket and sprays the glasses, cups and bowls loaded there. Water reaches it through a feed pipe from the wash pump, and the jets are angled so the water pressure turns the arm. If the arm is cracked, its jets are blocked by food or scale, or it no longer turns freely on its mount, the top rack misses out. You'll see cloudy or spotty glasses, food left inside bowls and mugs, and one area of the basket coming out dirtier than the rest.
Part details
- Genuine LG part AGB74152501
- Upper spray arm nozzle assembly
- Also linked to AGB74152502
- Listed for LG XD3, XD4 and XD5 dishwashers
Swapping the upper spray arm
Turn off the dishwasher and slide the upper basket out. The arm is attached to the underside of the basket, usually held by a nut or a twist lock in the centre. Release it, check the feed tube and docking point for debris, and clean them out. Fit the new arm, lock it on and turn it by hand to check it spins without hitting anything. Reload the basket and run a short program.
Questions about this part
Is AGB74152502 the same as AGB74152501?
AGB74152502 is linked to this spray arm in LG parts listings, so either number points to the same upper arm here. Still check your dishwasher's model number, usually on a label on the side of the door, against the list before ordering.
Specifications
| Brand | LG |
|---|---|
| Original part number | AGB74152501 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | AGB74152501 |
| Appliance | Dishwasher Parts |
| Shipping weight | 0.15 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
