AGB73092601 Genuine Middle Spray Arm for LG Dishwashers LD-1419W2 LD-1420W2 LD1452WFEN2 LD1453TFEN2 LD-1482W4 LD-1484T4 LD-1485T4

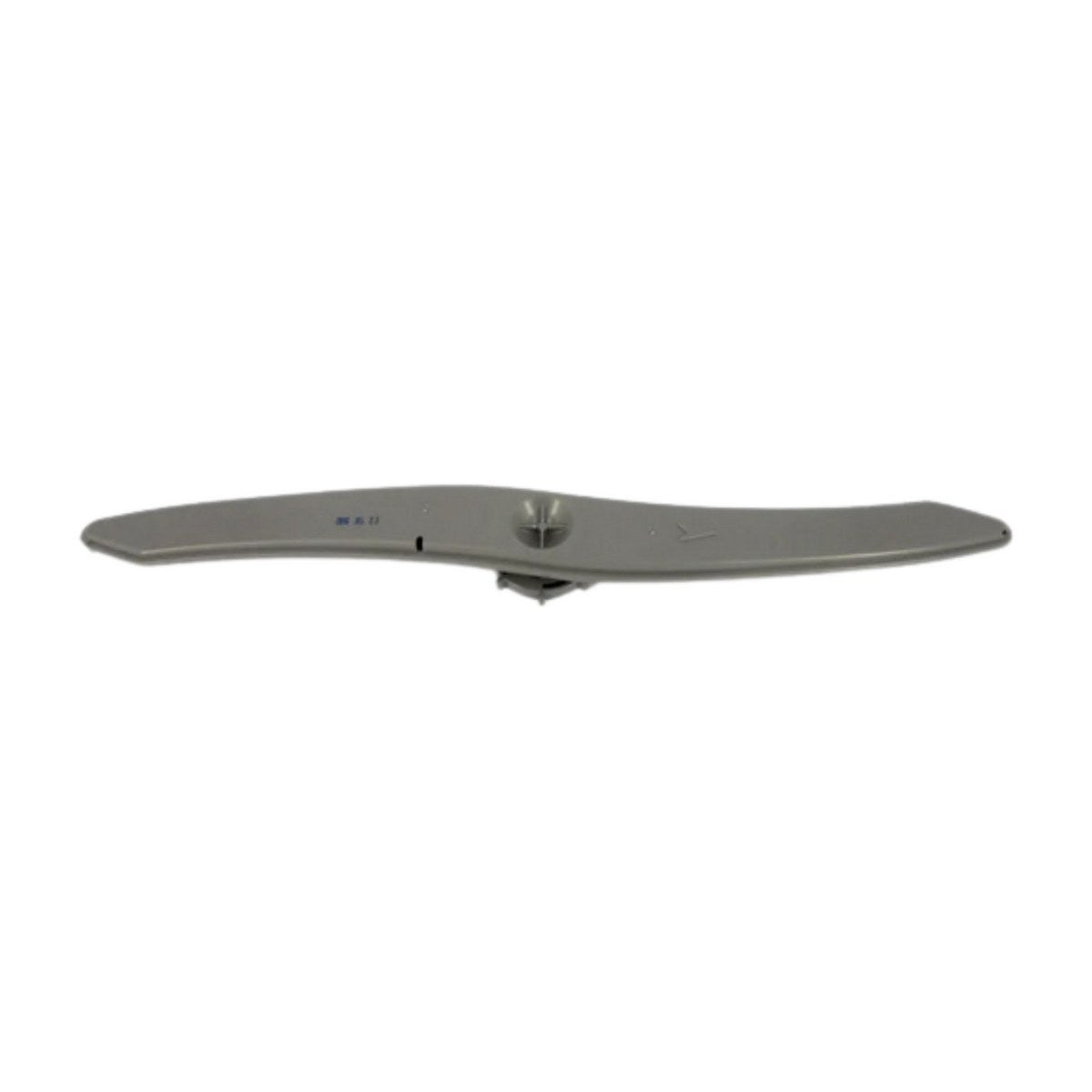

Part AGB73092601 is the genuine LG middle spray arm, also listed as a nozzle assembly, the arm that spins under the upper basket. It's on file for 27 LG dishwashers, including the LD-1419W2 and LD-1420T2, the LD1452WFEN2 and LD1455TFCS2, and the LD-1482W4 and LD-1485T4. A cracked or warped arm is a common reason the top rack comes out dirty.

Top rack not cleaning in your LG dishwasher?

Water is pumped up to this arm under pressure and leaves through small jets along its blades, spinning the arm and spraying the upper basket from below. If the arm cracks, warps or has its jets blocked by food particles or scale, the spray weakens and the arm may stop turning. You'll notice cups and bowls on the top rack coming out with food or film left on them, while the lower rack cleans fine. A loose or broken arm can also rattle against the basket.

Part details

• Genuine LG part AGB73092601
• Middle spray arm, listed as a nozzle assembly
• Sits under the upper basket
• 27 LG models on file

Swapping the spray arm

Turn the dishwasher off at the power point first. Slide the upper basket out to reach the arm underneath. Depending on the model, it unscrews, unclips or pulls off its mount. Check the water feed it sits on for blockages, fit the new arm and spin it by hand to make sure it turns freely without hitting the basket. Rinse the jets out regularly to keep the spray strong.

Questions about this part

Is this the arm under the top basket or the one at the bottom?

This is the middle arm, which sits under the upper basket. The lower arm at the base of the tub is a different part. Check your model number and send it through the enquiry form if you need the lower arm too.
