AEG73309905 Genuine Washing Machine Heating Element 2000W with Thermistor for LG Washers WD14070SD6 WD12595D6 WD1216HTE WV9-1408W
- Original part no.
- AEG73309905
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

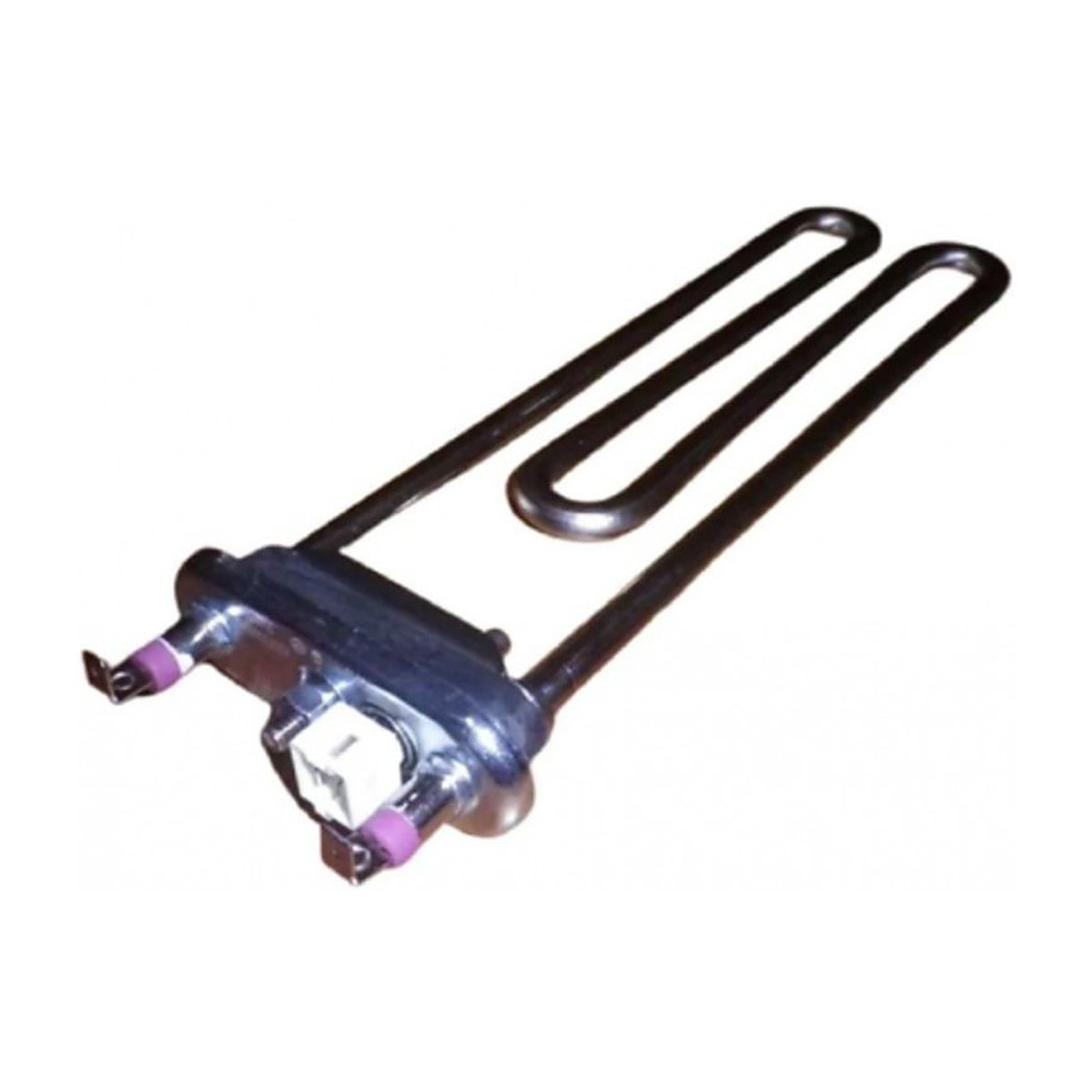

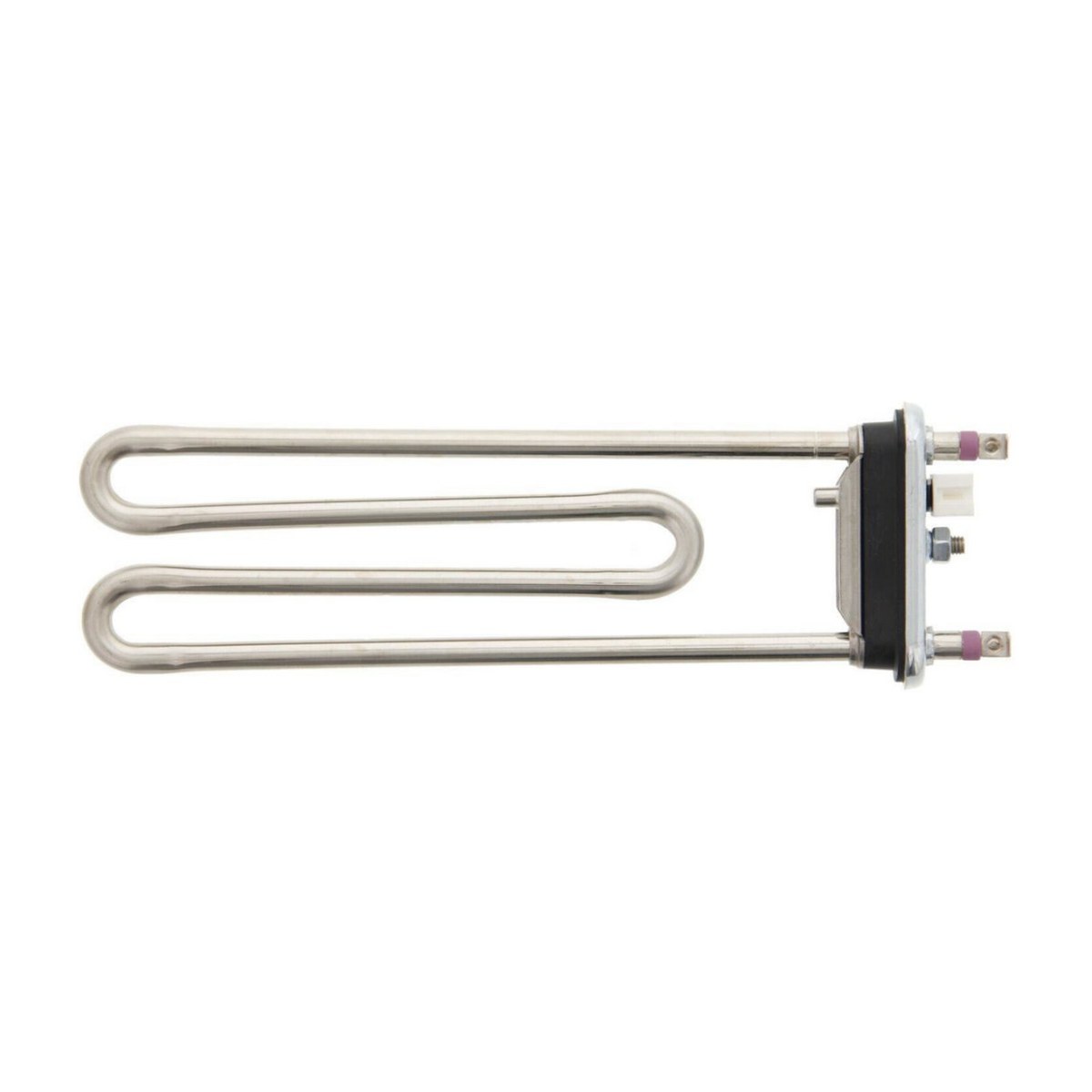

AEG73309905 is a genuine LG washing machine heater supplied with its thermistor, the small temperature sensor that plugs into the element. Rated at 2000W, it is listed for a broad range of LG washers including the WD14070SD6, WD12595D6, WD1216HTE, WV7-1408W, WV9-1408W and F1S1CYK2WH. The earlier LG number AEG33121511 is linked to this same heater, so either number on your old part or parts list leads here.
LG washer not heating water? Test the heater and thermistor
The heater sits low in the outer tub and warms the water for hot and warm wash programs. Its thermistor reads the water temperature so the control board knows when to switch the heat off. When the element fails, washes come out cold, cycles drag on much longer than normal or the machine stops and shows a heating error. An element that has shorted to earth can also trip the safety switch the moment the washer calls for heat. Because the thermistor comes with this assembly, both parts are renewed in the one job.
Part details
- Genuine LG part AEG73309905
- Linked to earlier LG number AEG33121511
- 2000W heating element
- Thermistor included in the assembly
- Listed for 46 LG washing machine models
| Power | 2000W |
|---|---|
| Includes | Thermistor |
Swapping the washer heater
Switch the washer off at the wall, unplug it and turn off the taps. Drain any water left in the tub first, because the heater sits below the water line. Photograph the wiring and the thermistor plug, loosen the centre nut and ease the old element out. Make sure the inner end of the new one hooks into its bracket in the tub before you tighten the nut, then run a warm wash and check for leaks.
Questions about this part
Is the thermistor included?
Yes. This assembly is the heater together with its thermistor, so the temperature sensor arrives with the element and doesn't need to be ordered separately. Fit both at the same time.
Where is the model number on an LG washer?
LG washers carry a label on the back panel or inside the door opening that shows the model, for example WD14070SD6. Match it to the models on this page or send it through the parts enquiry form.
Specifications
| Brand | LG |
|---|---|
| Original part number | AEG73309905 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | AEG73309905 |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.7 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
