AEG73309904 Genuine Heater Element 2000W for LG Front Load Washing Machines WD-14030D6 WD-14130FD6 WD-12021D6 WD-1409NPW WD-1475NPW

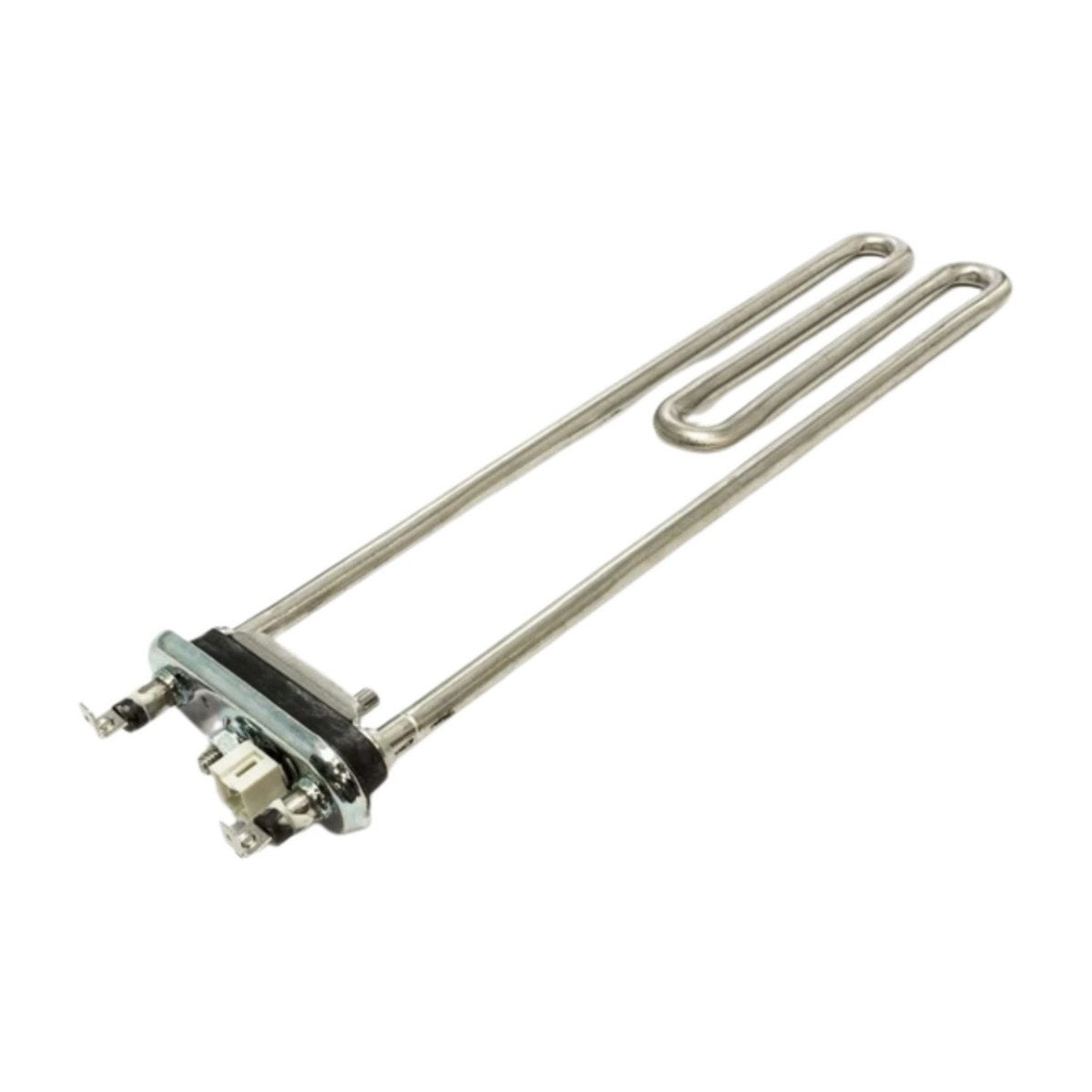

This genuine LG heater assembly, part AEG73309904, heats the wash water in LG front loaders and is rated 2000W at 240V. It is linked to AEG33121506 and 5301ER1001C. Thirty-two machines are on file, mostly from the WD series, including the WD-14030D6 and WD-14130FD6, the WD-12021D6, the WD-1409NPW and WD-1475NPW, and the WD-12490FD. Note that the AEG at the start of the part number is LG's own coding, not the AEG appliance brand.

LG front loader not heating water or tripping power?

The heater element sits in the bottom of the outer tub, under the drum, and warms the water for warm and hot programs. A temperature sensor reports back to the control board so it knows when to switch the heater off. When the element fails open circuit, the machine still runs but the wash stays cold, cycles take far longer, or a heating error such as tE appears. An element with a breakdown in its insulation tends to trip the safety switch as soon as heating starts. Scale from hard water on the element speeds up failure.

Part details

• Genuine LG part AEG73309904
• 2000W, 240V AC
• Linked to AEG33121506 and 5301ER1001C
• Listed for 32 LG WD series front loaders

Replacing the heater

Unplug the washer and turn off the tap. Depending on the model, the heater is reached by removing either the lower front panel or the back panel. Photograph the terminals, loosen the centre nut and ease the old element out of the tub. Slide the new one in so it locates in the bracket inside the tub, tighten the nut evenly and run a warm wash to test for leaks.

Questions about this part

Why does the part number start with AEG if it's an LG part?

AEG is simply a prefix LG uses in its own parts numbering. This element is made for LG washing machines and has nothing to do with the AEG appliance brand.
