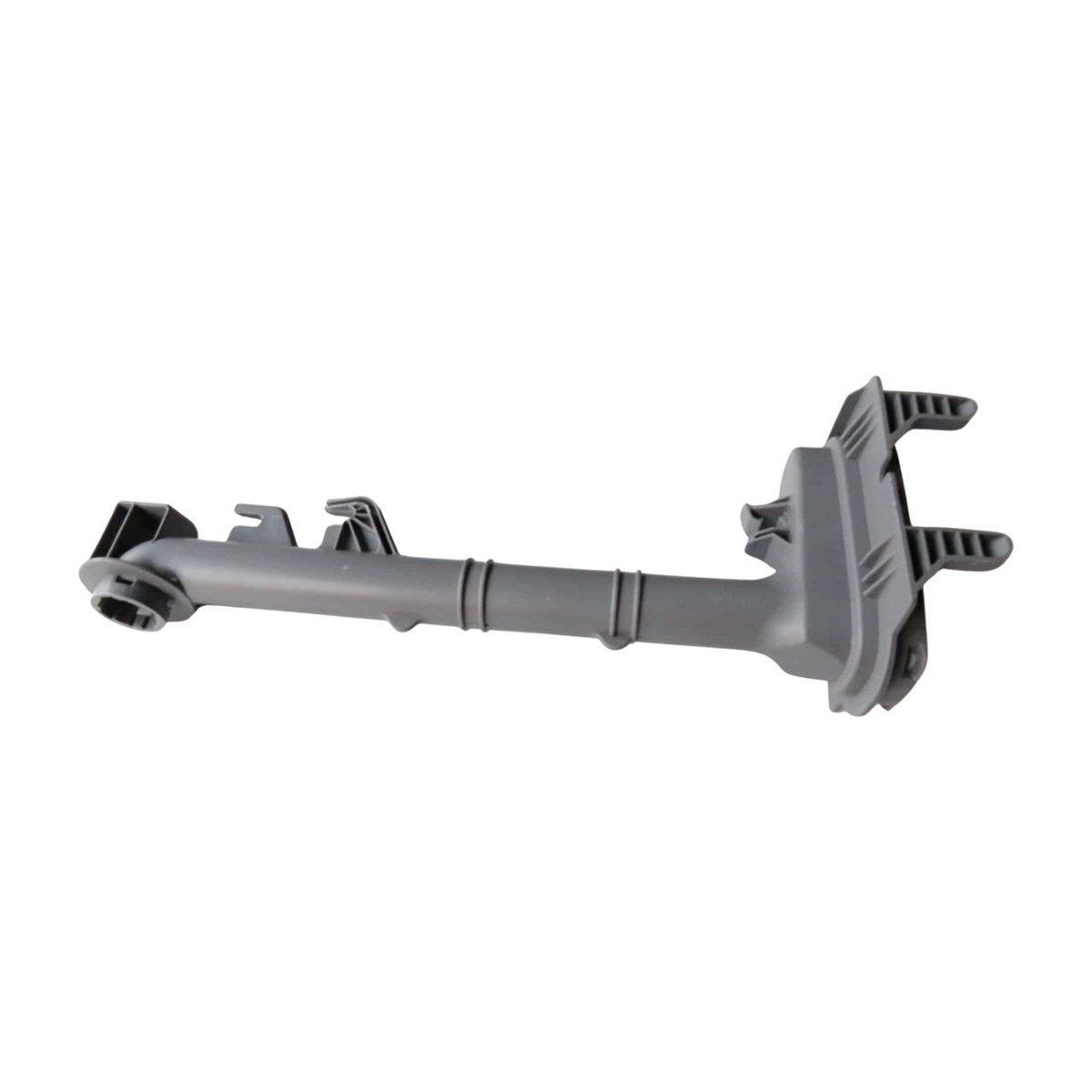

AEC74357501 Genuine Spray Arm Guide Assembly for LG Dishwashers XD3A15BS XD3A15MB XD3A25BS XD4B14PS XD4B24PS XD5B14PS XD5B24PS XD4B24WH
- Original part no.
- AEC74357501
- Part grade
- Genuine
- Appliance
- Dishwasher Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
LG lists AEC74357501 as the guide assembly for the spray arm in its XD series dishwashers. This genuine part is on file for 12 models, including the XD3A15BS and XD3A15MB, the XD3A25BS, the XD4B14PS and XD4B24PS, and the XD5B14PS and XD5B24PS. If the arm wobbles, catches or won't stay seated, the guide is worth checking.
LG dishwasher spray arm not spinning properly
Spray arms spin on water pressure alone, so they need to sit level and turn freely to spread water across the racks. The guide assembly helps locate the arm and keep it in position. If the guide cracks, wears or goes missing, the arm can sit off centre, rub against the rack or tub, or stop turning altogether. The result is dishes that come out dirty in patches, grinding or knocking noises during the wash, and food left on items in one part of the rack.
Part details
- Genuine LG part AEC74357501
- Spray arm guide assembly
- Suits LG XD3A, XD4B and XD5B series dishwashers
- Listed for 12 models including XD3A15BS and XD5B24PS
Fitting the guide assembly
Turn the dishwasher off at the wall and pull out the rack for clear access. Remove the spray arm, noting how the old guide sits and which way it faces. Clip or screw the new guide into the same position, refit the arm and spin it by hand to check it turns freely without touching anything. Run a rinse cycle to finish.
Questions about this part
How do I find my LG dishwasher model number?
Open the door and look for the label on the side edge of the inner door. On the machines this part suits, the model starts with XD, for example XD4B14PS. Match it to the list before ordering.
Specifications
| Original part number | AEC74357501 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | AEC74357501 |
| Appliance | Dishwasher Parts |
| Shipping weight | 0.15 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
