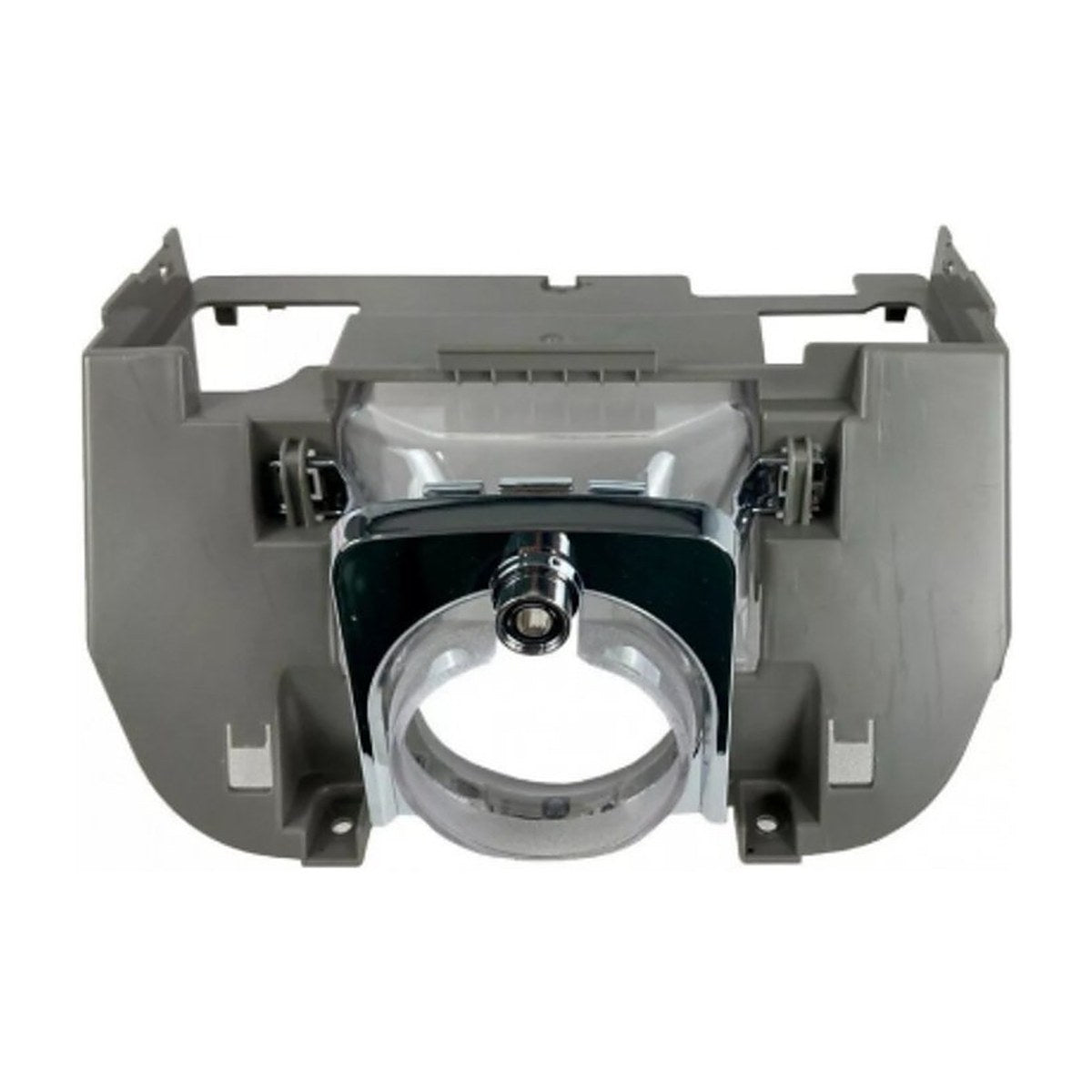

ADW73389901 Genuine Funnel Assembly with LED Light PCB for LG Fridges, LG Refrigerator Dispenser Funnel and Light Board

ADW73389901 is a genuine LG funnel assembly that comes with its LED light PCB included. LG uses funnel assemblies in the dispenser area of its fridges, so this suits fridges with a door dispenser and its built-in light. With the light board supplied, it's the part to reach for when the dispenser light has failed along with damage to the funnel itself. Check ADW73389901 against your old part or parts list first.

Dispenser light and funnel faults

The funnel guides ice and water from inside the door down to your glass, and the LED board lights up the dispenser recess so you can see what you're doing at night. Owners usually replace this assembly when the dispenser light stops working, flickers or only works some of the time, when the funnel housing is cracked or badly stained, or when a broken clip leaves it loose. If only the light has failed, check the wiring plug and the door or dispenser switch before blaming the board.

Part details

• Genuine LG part number ADW73389901
• LG description: Funnel Assembly
• Supplied with the LED light PCB
• Dispenser area part for LG fridges

Fitting the funnel assembly

Unplug the fridge at the wall before working on the dispenser, as the LED board runs from the fridge's power supply. Remove the drip tray and any trim around the dispenser, photograph the wiring connector, and unclip the old funnel. Connect the new LED board's plug before seating the assembly, then restore power and test the light, water and ice.

Questions about this part

Do I need to buy the LED board separately?

No. ADW73389901 comes with its LED light PCB, so the light board and funnel are replaced in one go. Check the part number on your old assembly or in your fridge's parts list to make sure it's the right one.
