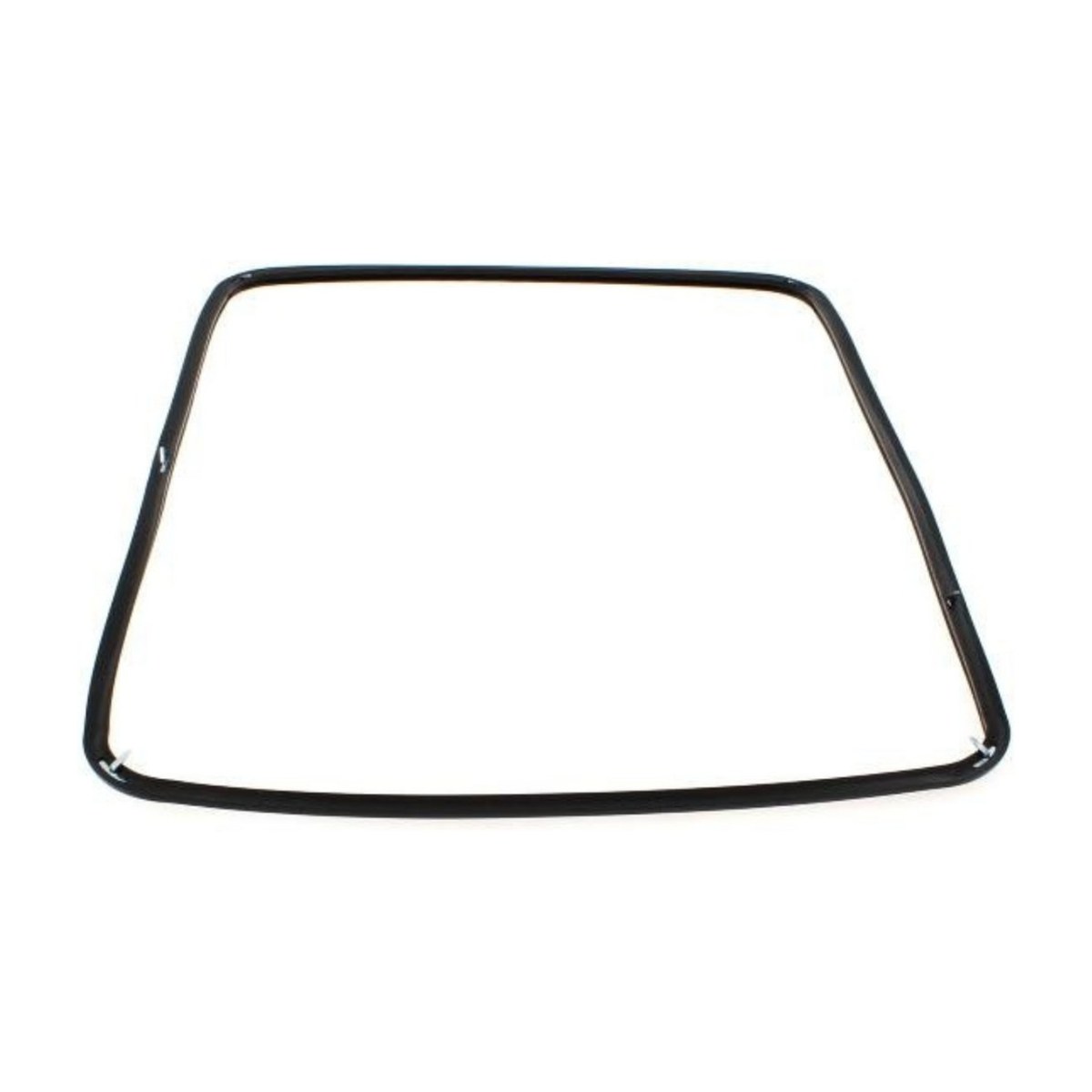

A311697 Genuine Oven Door Seal for Whirlpool, Ariston, IKEA Ovens AKP286IX02 AKP286IX03 AKP290IX AKP292IX AKP369IX AKP371IX AKP380IX 801.186.42

Whirlpool AKP ovens, Ariston models and the IKEA oven with article number 801.186.42 use this genuine door seal. It is listed here as A311697, and also goes by C00311697 and 481246688912. Models on file include the 6AKP238IX, the AKP252IX and AKP255IX, the AKP286IX02 and AKP286IX03, the AKP290IX and AKP292IX, the AKP369IX and AKP370IX, and the AKP371IX and AKP380IX.

Oven losing heat around the door?

The cavity seal runs around the front of the oven opening and the door closes against it to keep heat in. After years of high temperatures, the seal goes hard, flattens, tears or comes loose at the corners. Then hot air escapes around the door, so the oven takes longer to heat, cooks unevenly, and pushes heat onto the knobs and benchtop above. Steam and grease marks on the door edges or the front panel are also a giveaway. A new seal restores the closure and helps the oven reach temperature properly.

Part details

• Genuine Whirlpool group part, listed here as A311697
• Also numbered C00311697 and 481246688912
• Oven cavity door seal
• Listed for Whirlpool AKP ovens and IKEA 801.186.42

Changing the oven seal

Turn the oven off and wait until it is completely cold. Open the door wide, or remove it if that gives easier access. Look at how the old seal is held, usually by hooked clips pushed into holes around the oven front, and ease it out. Fit the new seal with its join in the same position as the old one, pressing each clip home evenly as you work around. Close the door and check it seals all the way round.

Questions about this part

What is the difference between A311697 and C00311697?

They refer to the same Whirlpool seal. C00311697 and 481246688912 are the manufacturer's numbers, and A311697 is the short code used on this listing. Any of the three will identify this part.
