A303520 Genuine Washing Machine Door Seal Bellows for Ariston Washing Machines 5WT6X00GB BIWDIL75125MEA BIWDHG751482EUN C00303520 482000023456
- Original part no.
- A303520
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

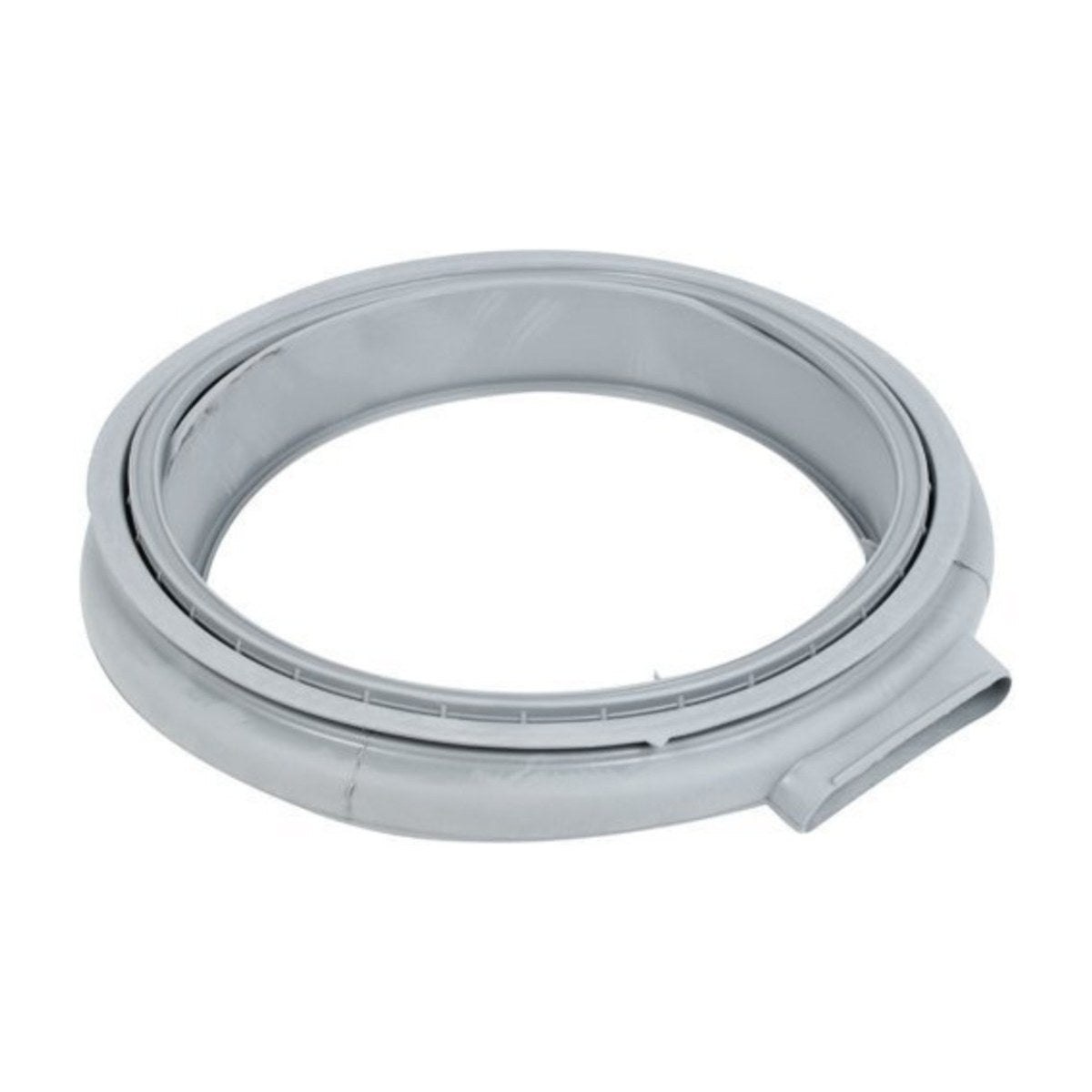

A303520 is the genuine door bellows for Ariston front loading washing machines, the thick rubber seal that closes against the door glass. You'll also see it numbered C00303520, and its Whirlpool group reference is 482000023456. It's listed for the 5WT6X00GB along with the BIWDIL75125MEA, BIWDHG751482EUN and BIWDWG751482EUN. If any of those numbers appear on your old seal or machine, this is the match.
Ariston washing machine leaking from the door?
The bellows forms a watertight seal between the outer cabinet and the drum opening, flexing as the drum moves during washing and spinning. Over time the rubber can split, perish or get torn by coins, underwire and zips caught in the folds. A damaged seal usually shows up as water on the floor in front of the machine, often only during the wash or rinse stages when the water level is highest. Mould that won't clean off and a musty smell are other reasons people replace it, as black spots can work deep into the rubber.
Part details
- Genuine door bellows, part A303520
- Also numbered C00303520 and 482000023456
- Rubber door seal for Ariston front loading washing machines
- Four models on file, among them the 5WT6X00GB
Changing the door bellows
Switch the washer off at the wall and turn off the taps. The bellows is normally held by an outer clamp band at the front panel and an inner band around the drum lip, so take photos before removing them. Most seals have a mark or tab that sits at the top, so match the orientation of the old one. Seat the inner lip fully, refit both bands, then run a rinse cycle and check for drips.
Questions about this part
Can I fit the door seal myself?
Handy home owners often do, though it takes patience. You'll need to release the two clamp bands, work the old seal off the drum lip and seat the new one evenly all the way round. If the front panel has to come off on your model, allow extra time or book a technician.
Specifications
| Original part number | A303520 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | A303520 |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.7 kg |
