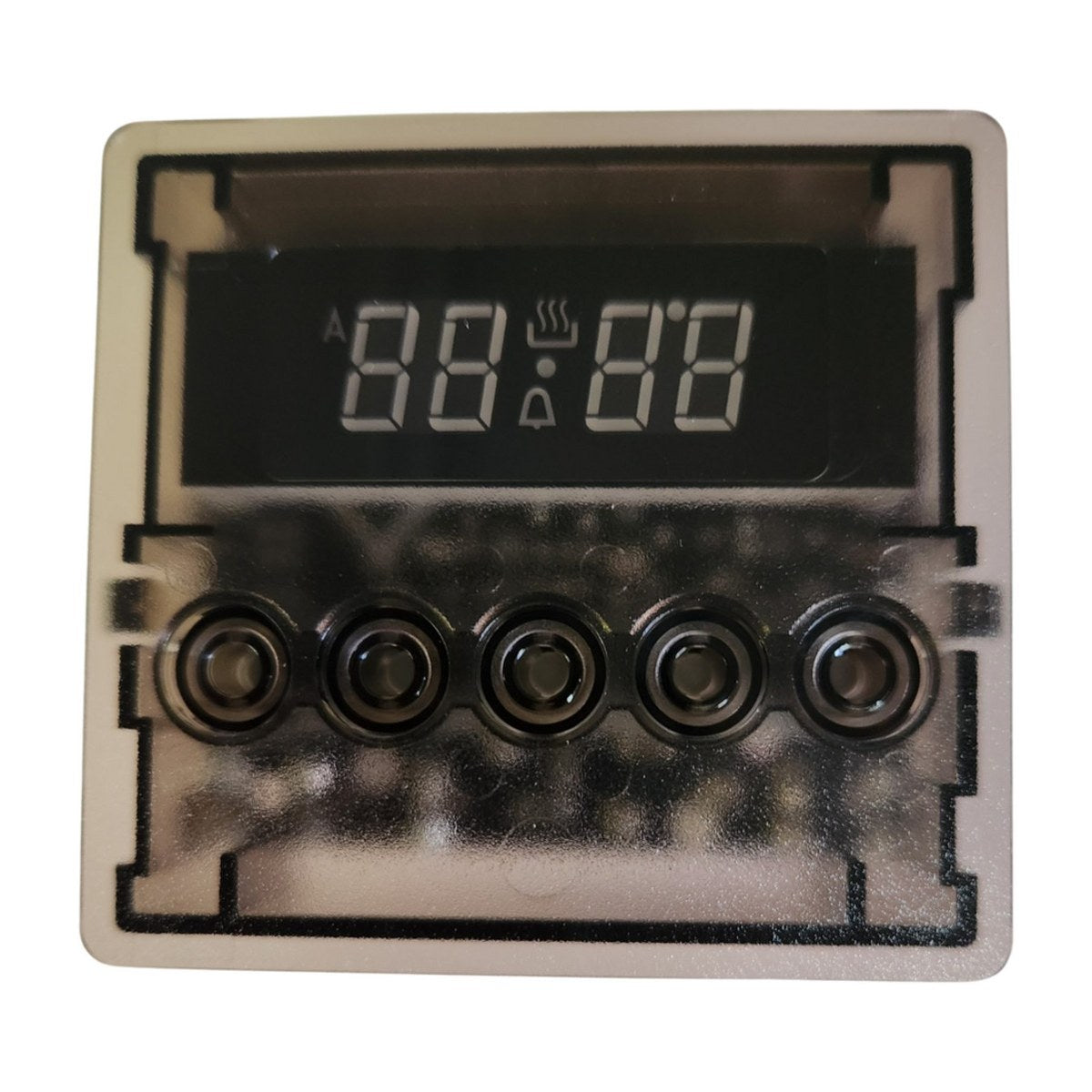

A/446/29 Genuine 5 Button Digital Oven Clock Timer for ILVE Ovens P90FWMP/I PN90FMP PL90FMP 900WMP JC906WMP T90WMP EA543100700000

ILVE fits the A/446/29 five button digital clock timer to a long list of its ovens and cookers. It's a genuine ILVE part, also marked EA543100700000 or EA543100400000, and it's on file for models including the P90FWMP/I, PN90FMP, PL90FMP, PF90FMP, PN120FMP, 900WMP, 800WMP, JC906WMP, T90WMP and NT906WMP/B. Count the buttons on your current clock, as the five button layout is the easiest way to tell it apart.

ILVE oven clock blank, flashing or won't let the oven heat

The clock timer on an ILVE oven does more than show the time. It runs the minute minder and the automatic cooking program, and on many ovens with a programmable timer the elements won't power up until the clock is set or switched to manual. When the timer fails, the display may go blank or show faded segments, buttons stop responding, the time resets after a blackout, or the oven won't heat even though the light and fan come on. Moisture and heat around the control panel are the usual causes.

Part details

• Genuine ILVE part A/446/29
• Five button digital clock timer
• Also marked EA543100700000 and EA543100400000
• On file for a long list of ILVE ovens and cookers

Fitting the clock timer

Switch the cooker off at the isolator or circuit breaker first. ILVE cookers are often hard-wired, so a licensed electrician should handle the job. Photograph the wiring on the back of the old timer before disconnecting it, transfer each wire to the same terminal on the new one, then set the time and run the oven in manual to test.

Questions about this part

How do I set the clock after fitting?

Setting steps vary by model, so follow the instructions in your ILVE user manual. If the oven stays cold after fitting, set the time or select manual mode first, as many ovens with a programmable timer won't heat until that is done.
