A/401/14 Genuine Daisy Chain Ignition Micro Switch for ILVE Gas Cookers P90CCMP P90FMP PD90FNMP P90WVG/1 PD90WMP/1 NT906WMP
- Original part no.
- A/401/14
- Part grade
- Genuine
- Appliance
- Upright Cooker Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

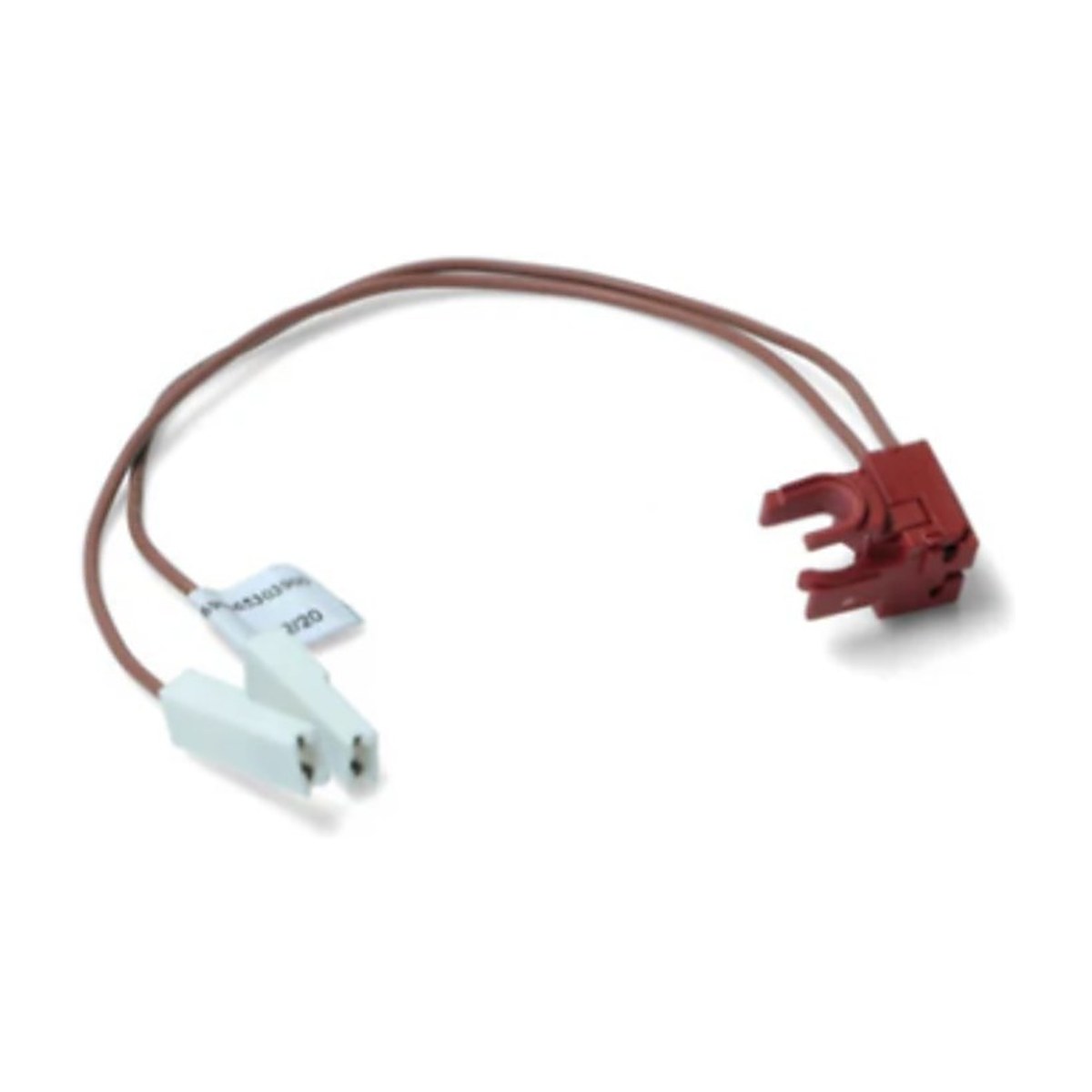

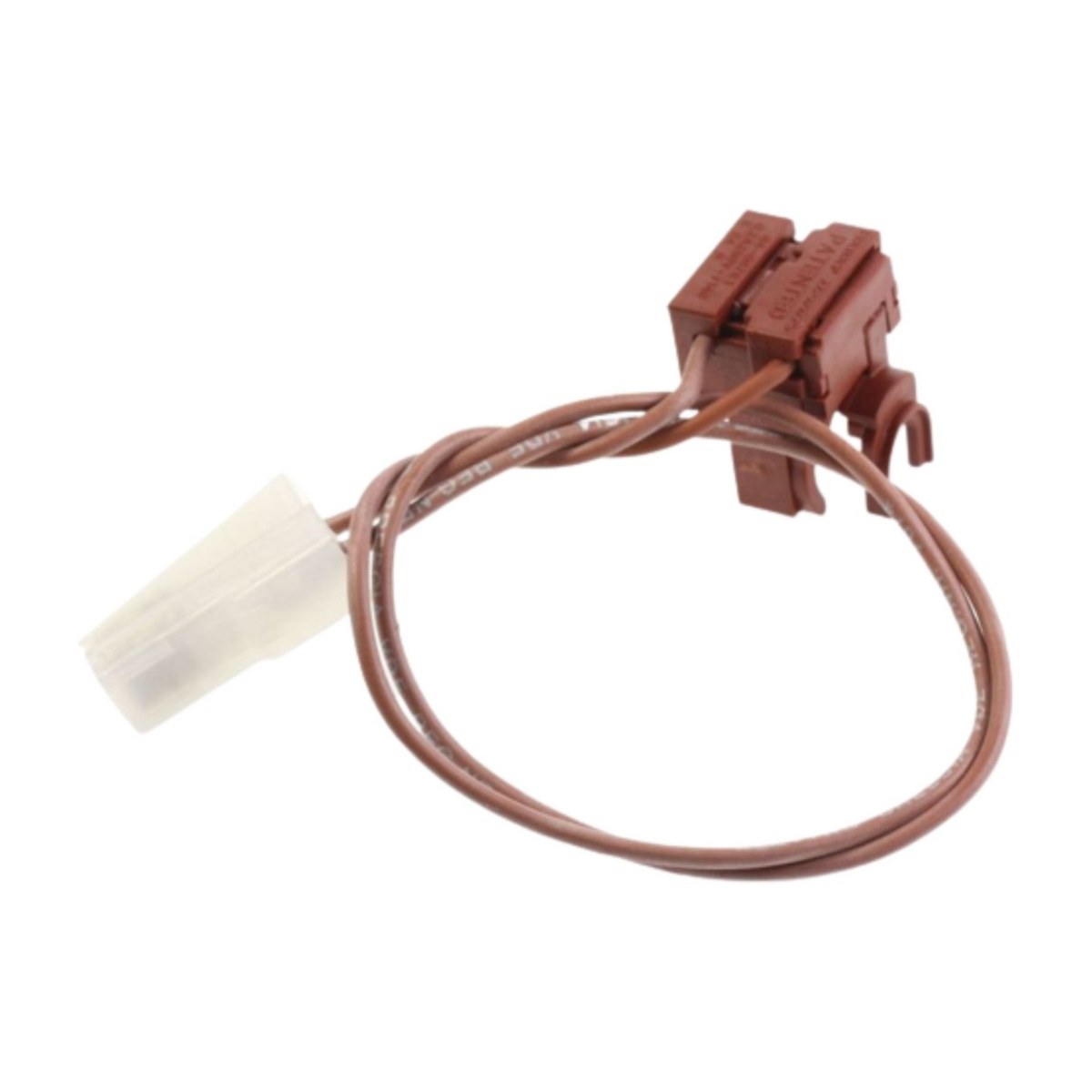

A/401/14 is the genuine ILVE ignition micro switch in a daisy chain layout, used on the gas taps of ILVE cookers. It's listed for P90 series cookers such as the P90CCMP, P90FMP, P90FNMP-A and P90WVG/1, along with the PD90FNMP, PD90WMP/1, NT906WMP, 800WMP/1 and PTW1006MP-1. You'll also find it under 3070012 and EA4330002000000.
ILVE cooktop clicking nonstop or not sparking
Each gas tap has a micro switch that closes when you push the knob in, telling the spark generator to fire the igniters. Daisy chain switches are wired in a line along one harness. Moisture from boil overs and cleaning sprays is their main enemy. A switch that stays closed makes the igniters click continuously even with every knob off, while one that won't close leaves that burner with no spark. Because the switches share a harness, one faulty switch can affect the whole cooktop.
Part details
- Genuine ILVE part A/401/14
- Also listed as 3070012 and EA4330002000000
- Daisy chain style ignition micro switch
- Suits ILVE P90, PD90 and similar gas cookers
Replacing ignition switches
Turn off the power at the wall and close the gas supply before starting. The knobs and control panel come off to reach the switches on the gas tap spindles. Photograph the harness routing first. Work on a gas cooker should be done by a licensed gas fitter, who can also check the burners and ignition once it's reassembled.
Questions about this part
My cooktop keeps clicking after cleaning, do I need this part?
Not always. Water in a switch can cause clicking that stops once it dries out, so leave the cooker switched off at the wall for a day or two. If the clicking keeps coming back or never stops, the micro switch has probably failed.
Specifications
| Brand | ILVE |
|---|---|
| Original part number | A/401/14 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | A/401/14 |
| Appliance | Upright Cooker Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
