A/034/08 Generic Multifunction Selector Switch suits ILVE Ovens 800LMP 700LMP PDW90IMP PDL90RE3 PD1006NMP PFE60MP MT76DMP PNE80MP
- Original part no.
- A/034/08
- Part grade
- Generic
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Quality checked generic part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

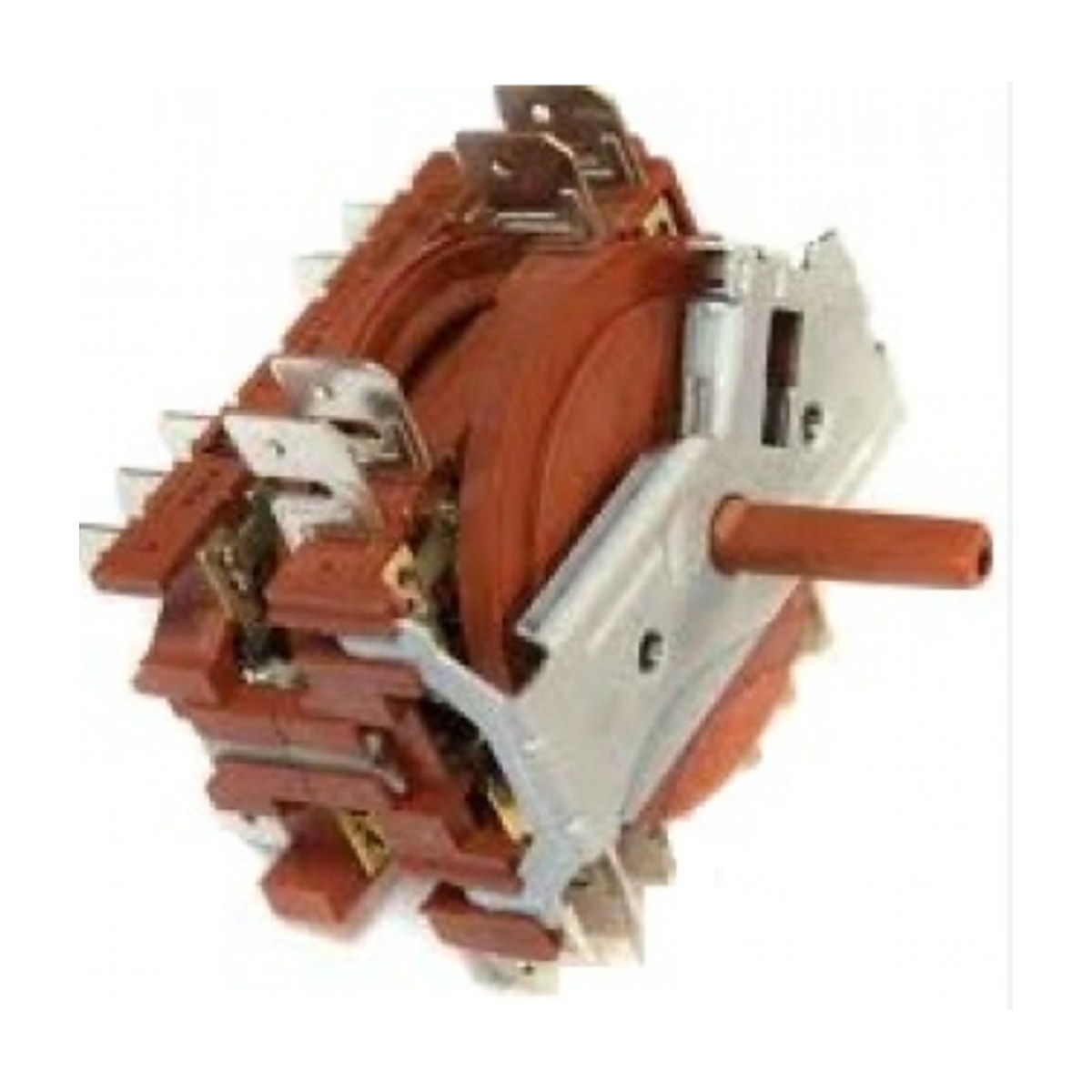

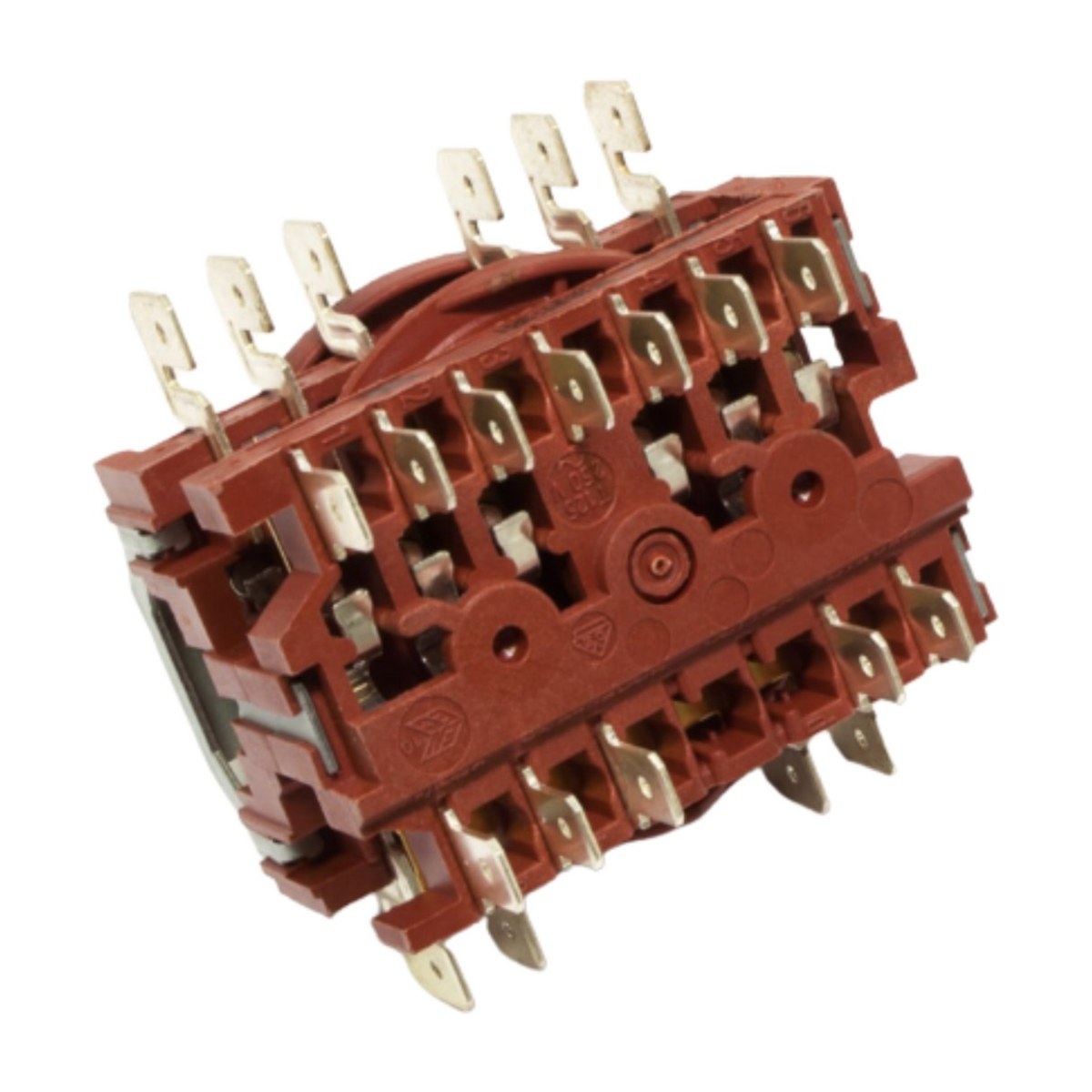

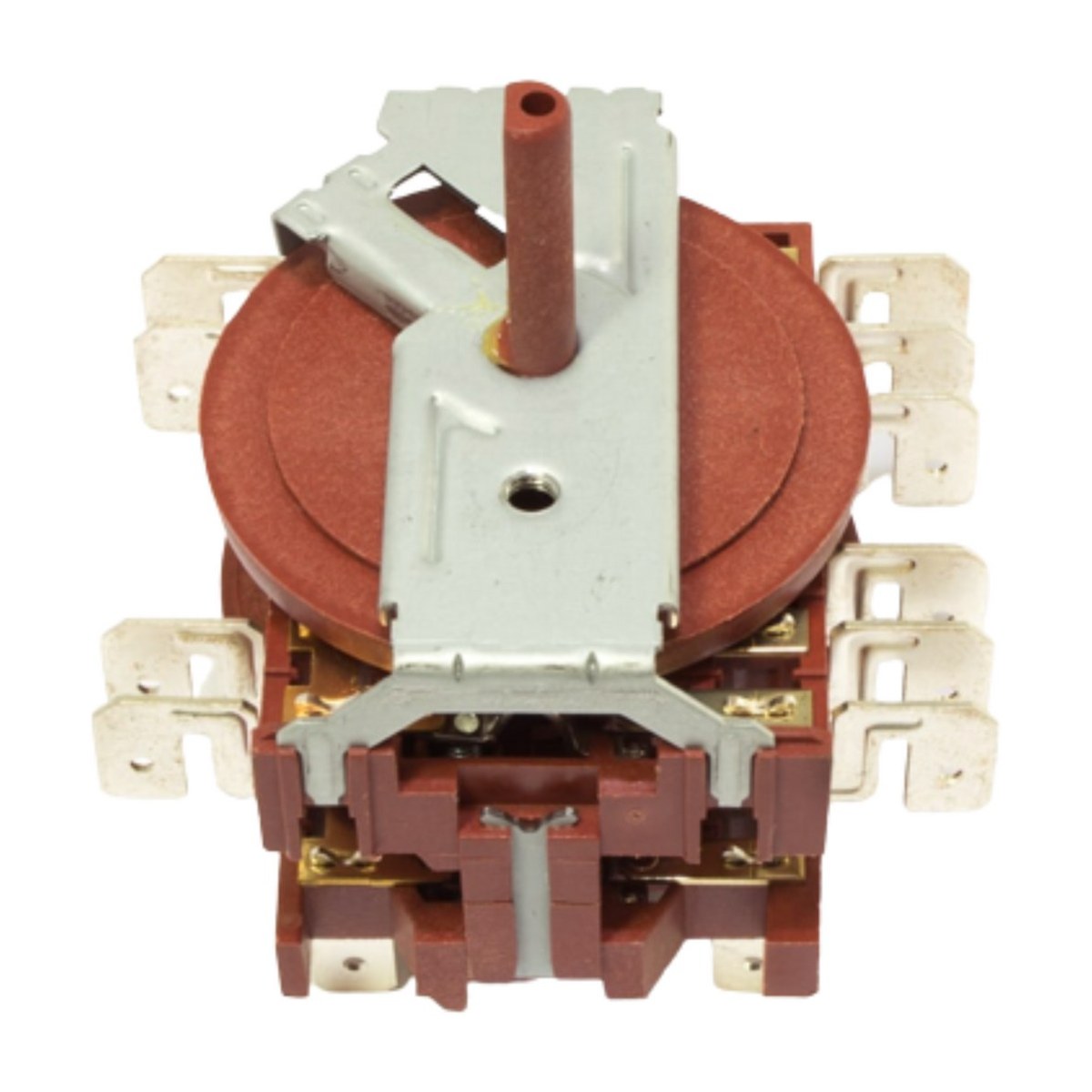

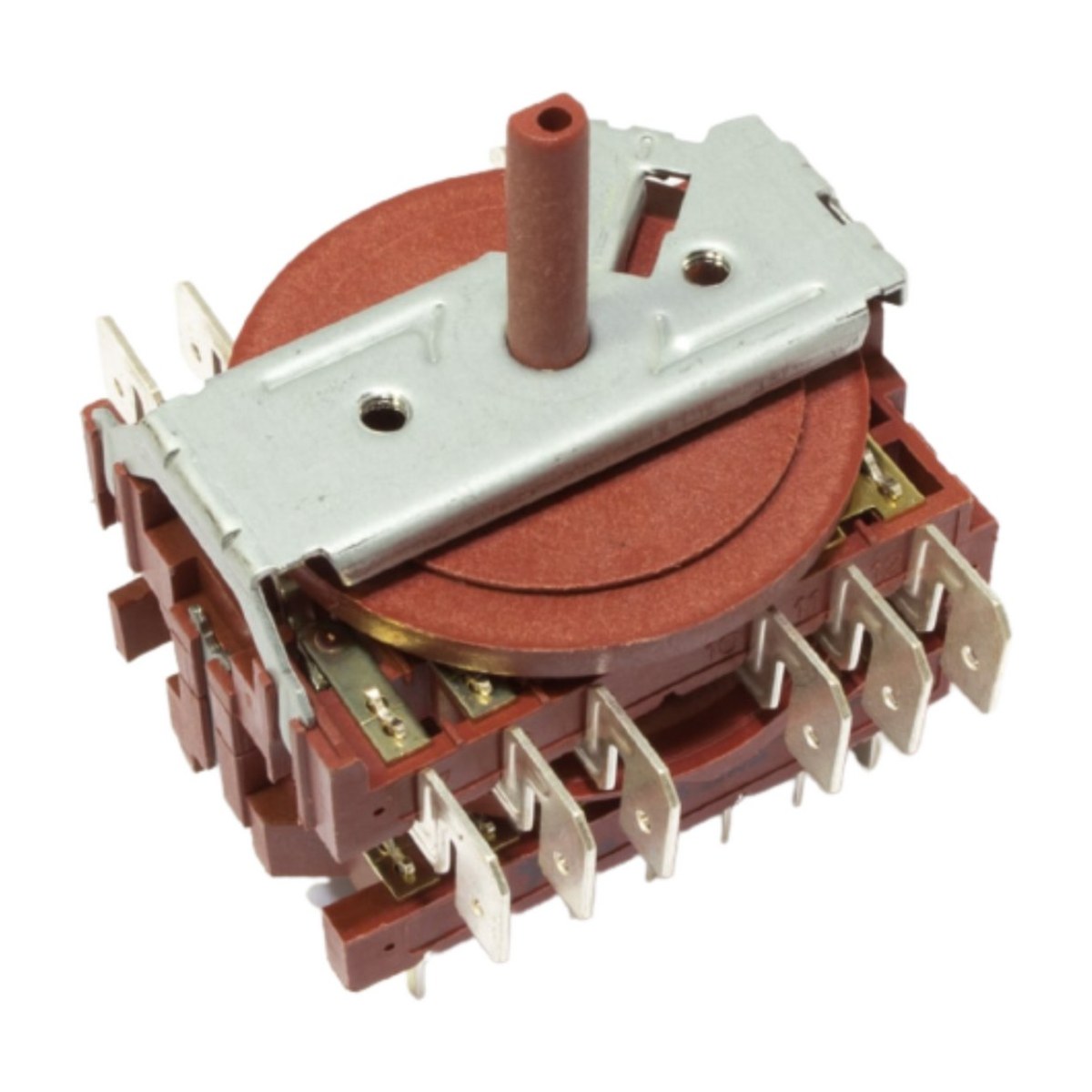

This generic multifunction selector switch replaces ILVE part A/034/08. It is an aftermarket switch, not one made by ILVE. On file it suits the 700LMP and 800LMP, the PDW90IMP, PDL90RE3 and PD1006NMP, the PFE60MP, the MT76DMP and the PNE80MP. The selector sits behind the oven function knob, so a fault here can leave the oven stuck on one mode or not heating at all.
ILVE oven functions not working? The selector switch could be at fault
When you turn the function knob on a multifunction oven, the selector switch connects different combinations of elements, the fan and the lamp, giving you fan forced, grill, bake and other modes. Inside, the contacts carry full element current, so over time they burn, pit or weld together. Typical signs are one or more functions not heating, the oven working only in certain knob positions, elements staying on when switched off, a crackling sound or burning smell behind the panel, or melted plastic on the switch body. Check the elements as well, since a burnt out element gives a similar no heat symptom.
Part details
- Replaces ILVE part number A/034/08
- Generic aftermarket multifunction selector switch
- Selects the oven function behind the control knob
- Listed for eight ILVE models, from the 700LMP and 800LMP to the PNE80MP
Fitting the selector switch
Ovens and cookers are usually hard-wired, so a licensed electrician should fit this switch. Isolate the appliance at the switchboard first. Before disconnecting the old switch, photograph it from several angles and label every wire with its terminal number, as selector switches have many connections. Transfer the wires one at a time, refit the knob and check each function heats as it should.
Questions about this part
Is this an ILVE branded switch?
No. It is a generic aftermarket switch that replaces ILVE number A/034/08. Compare the terminal layout and shaft of your old switch with the photos before ordering, and send your model through the parts enquiry form if you'd like it checked.
Specifications
| Brand | Universal |
|---|---|
| Original part number | A/034/08 |
| Part grade | Generic : Generic compatible replacement, a lower cost alternative to the original part. |
| SKU | A/034/08_G |
| Appliance | Oven Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
