A/018/02 OEM Gas Ignition Spark Plug 400mm suits ILVE Cookers and Cooktops M90FDVG MT90FDVG PD90FNVG P90NVG PN90FVG M120FDVG PDN90FVG
- Original part no.
- A/018/02
- Part grade
- OEM
- Appliance
- Upright Cooker Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- OEM, built to original spec
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

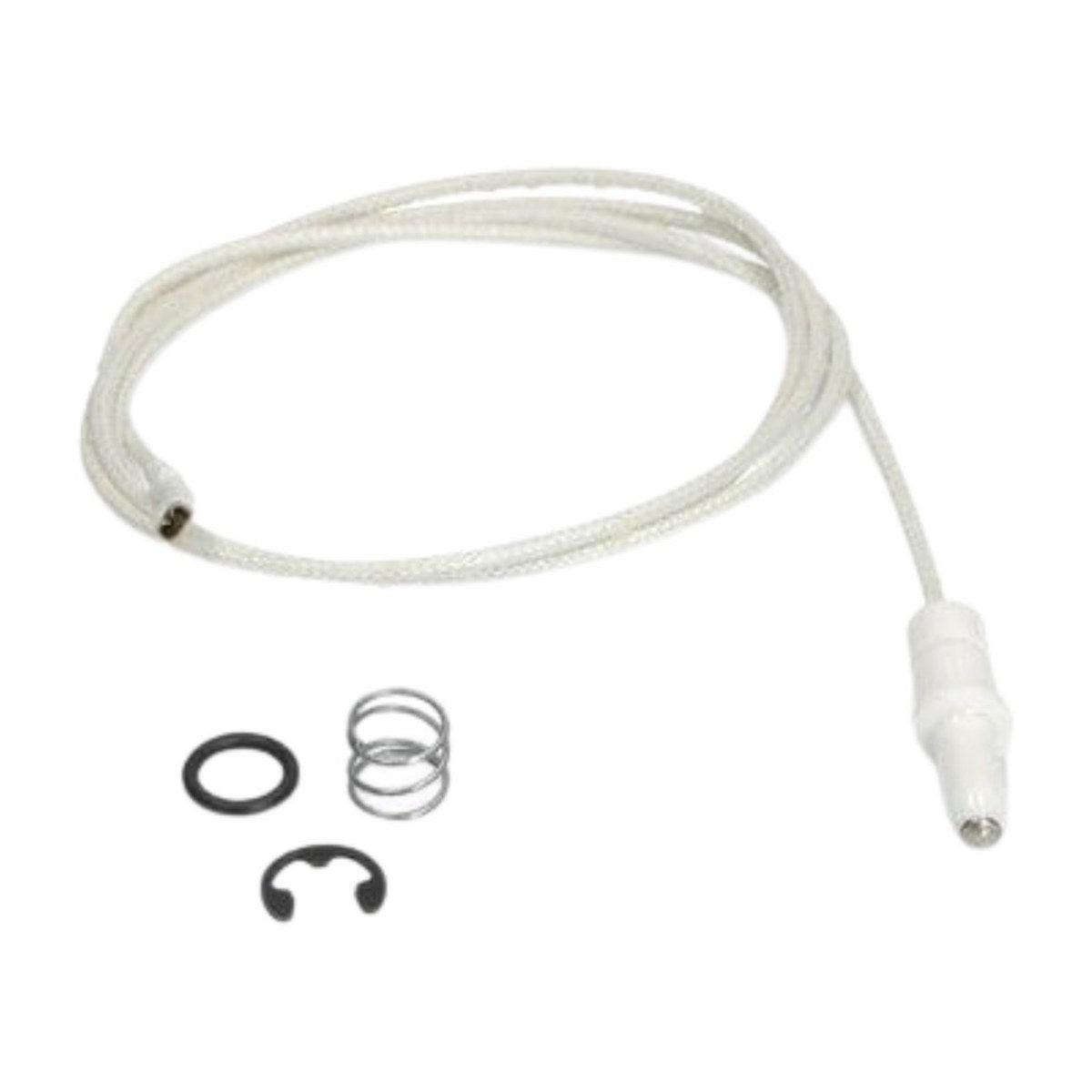

A/018/02 is an OEM ignition spark plug for ILVE gas burners, with a 400mm lead and the H=28 marking in its specification. It's an aftermarket electrode made to the original ILVE pattern, not an ILVE branded part. The fitting list runs to 75 ILVE models. Some of the most common are the M90FDVG, the MT90FDVG, the M120FDVG, the P90NVG, the PN90FVG and the PD90FNVG.
ILVE burner clicking but not lighting?
Each burner has its own spark plug sitting beside the burner head. When you press the ignition, the module sends a high voltage pulse down the lead and the plug sparks across to the burner, lighting the gas. If the ceramic is cracked, the tip is coated in grease or the lead is damaged, the spark may be weak, jump somewhere else or not happen at all. You'll notice a burner that needs a match, clicks without lighting or sparks only now and then. A spark that tracks to the cooktop instead of the burner also points to a failed plug.
Part details
- Part number A/018/02
- Ignition spark plug for gas burners
- 400mm ignition lead
- Specification marking H=28
- Aftermarket part made to suit ILVE cookers
| Lead length | 400mm |
|---|---|
| Height marking | H=28 |
Fitting the spark plug
Turn off the gas supply and isolate the power at the wall before starting. The plug usually clips or screws into the burner base, with the lead running back to the ignition module. Route the new 400mm lead the same way as the old one, away from hot surfaces and sharp edges. ILVE gas appliances should be worked on by a licensed gas fitter, who will test the burners after fitting.
Questions about this part
How do I know the lead length is right?
Measure the lead on your old plug from the electrode to the connector. This one has a 400mm lead. A lead that's too short won't reach the ignition module, and one that's much too long can be hard to route safely.
Specifications
| Original part number | A/018/02 |
|---|---|
| Part grade | OEM : OEM part made to the original equipment specification, without the appliance brand's packaging. |
| SKU | A/018/02_O |
| Appliance | Upright Cooker Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
