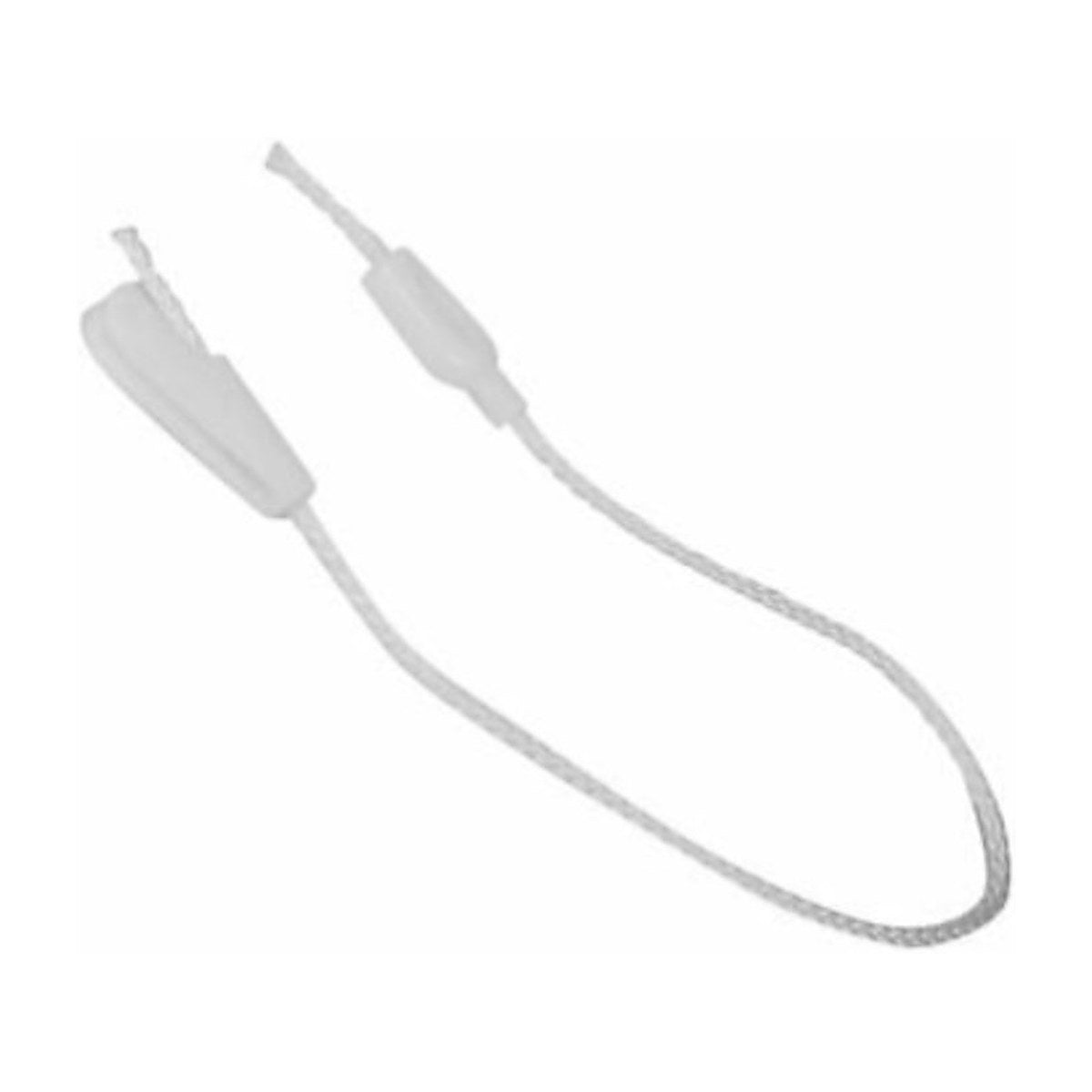

938820014 Genuine Hinge Cord for Smeg Dishwashers, Single Door Spring Cord Sold Individually, Smeg Door Hinge Cable

938820014 is a genuine Smeg hinge cord, sold as a single cord. On many built-in dishwashers the door is counterbalanced by springs, and a cord links each spring to the hinge so the door opens smoothly and stays where you leave it. Smeg's description marks this one as individual, so order two if both sides need replacing. Our record doesn't give a model list, so check the number first.

Dishwasher door falling open or slamming

The hinge cord carries the pull of the door spring onto the hinge arm, usually running over a small pulley or guide. Each time the door opens, the cord rubs and stretches, and eventually it frays or snaps. A broken cord leaves that side of the door with no spring support, so the door drops open hard, feels heavy or lopsided, won't stay part open, or springs shut. You may hear a bang when the door falls or find a loose cord end and spring under the dishwasher. Fixing it promptly prevents damage to the hinge and the door panel.

Part details

• Genuine Smeg part 938820014
• Hinge cord, sold individually
• Links the door spring to the hinge
• Order two to replace both sides

Replacing a hinge cord

Turn the dishwasher off at the wall and turn off the tap. Slide the dishwasher out of its cavity to reach the side of the hinge. Unhook the spring first to release the tension, then remove the old cord and route the new one the same way over the pulley. Reconnect the spring and test the door. If one cord has broken, the other is usually close behind.

Questions about this part

Should I replace both hinge cords?

It's a good idea. Both cords have done the same number of door openings, so if one has snapped the other is likely to be worn. This part is sold individually, so order two for a matching pair.
