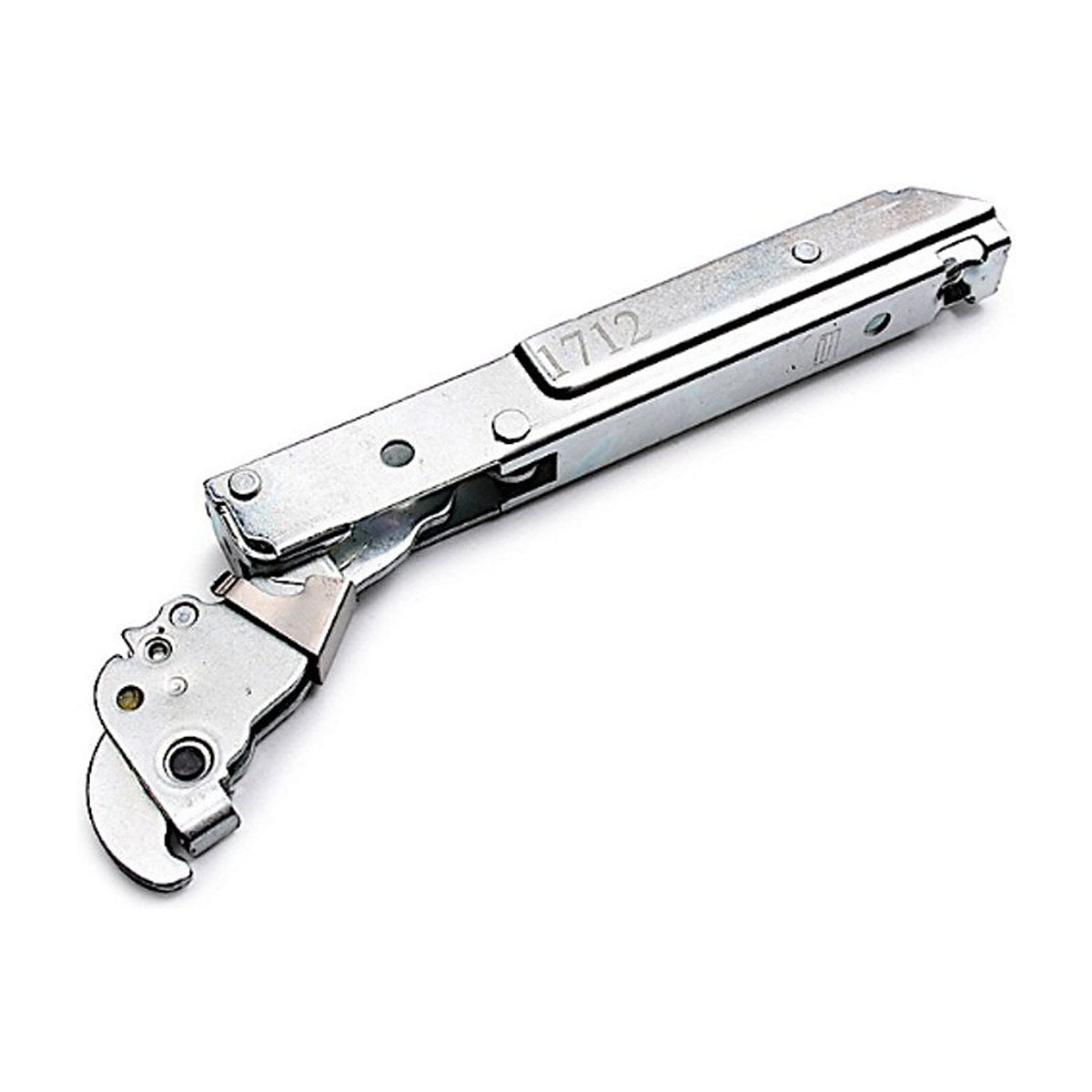

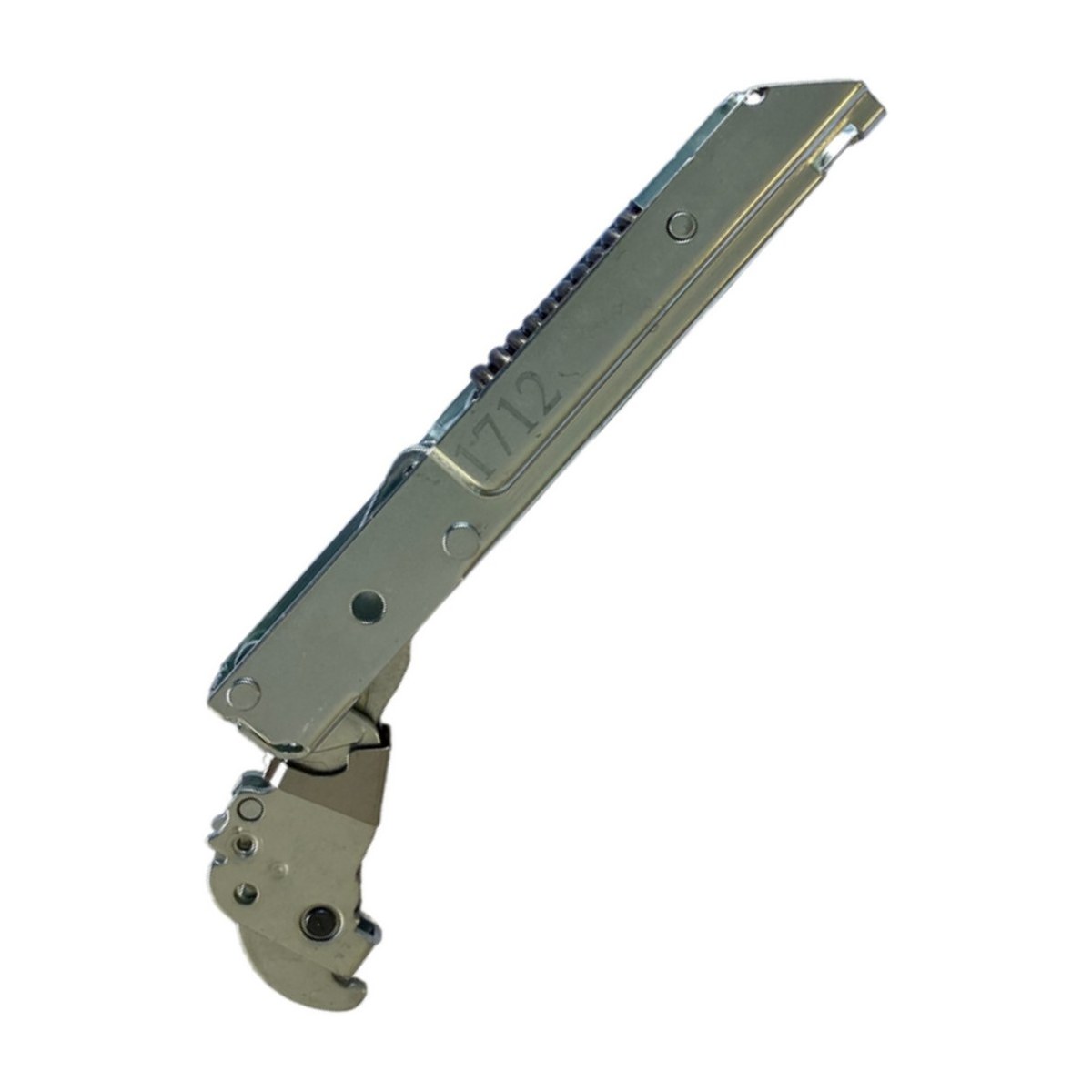

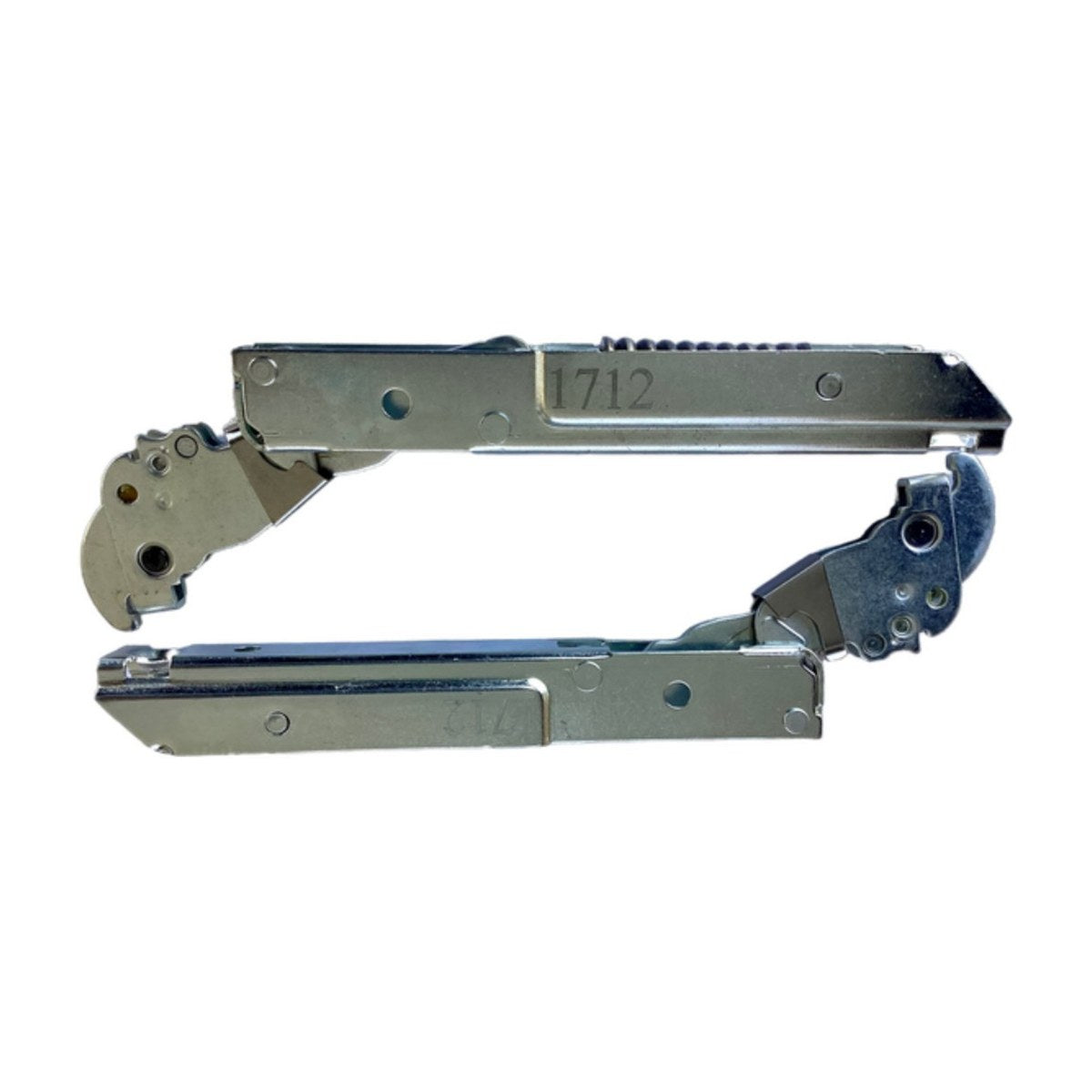

931331712 Genuine Oven Door Hinge for Smeg Cookers CS9GMXA CS9GMXHA CS90GMXA CS95GMXNA FS9606XS FS9608XS FS9010XS CS9IMXA CS9GVXA

Smeg's genuine oven door hinge, part 931331712, is used on Smeg cookers in the CS9, CS90, CS95 and FS9 families. Models on file include the CS9GMXA and CS9GMXHA, the CS9GMNA, CS9GMBHA, CS9GVXA and CS9IMXA, the CS90GMXA, the CS95GMXNA and CS95GMBNA, and the FS9606XS, FS9608XS, FS9010XS and FS9010CER. The door hangs on one hinge each side, so check how many you need.

Smeg oven door dropping open or not sealing?

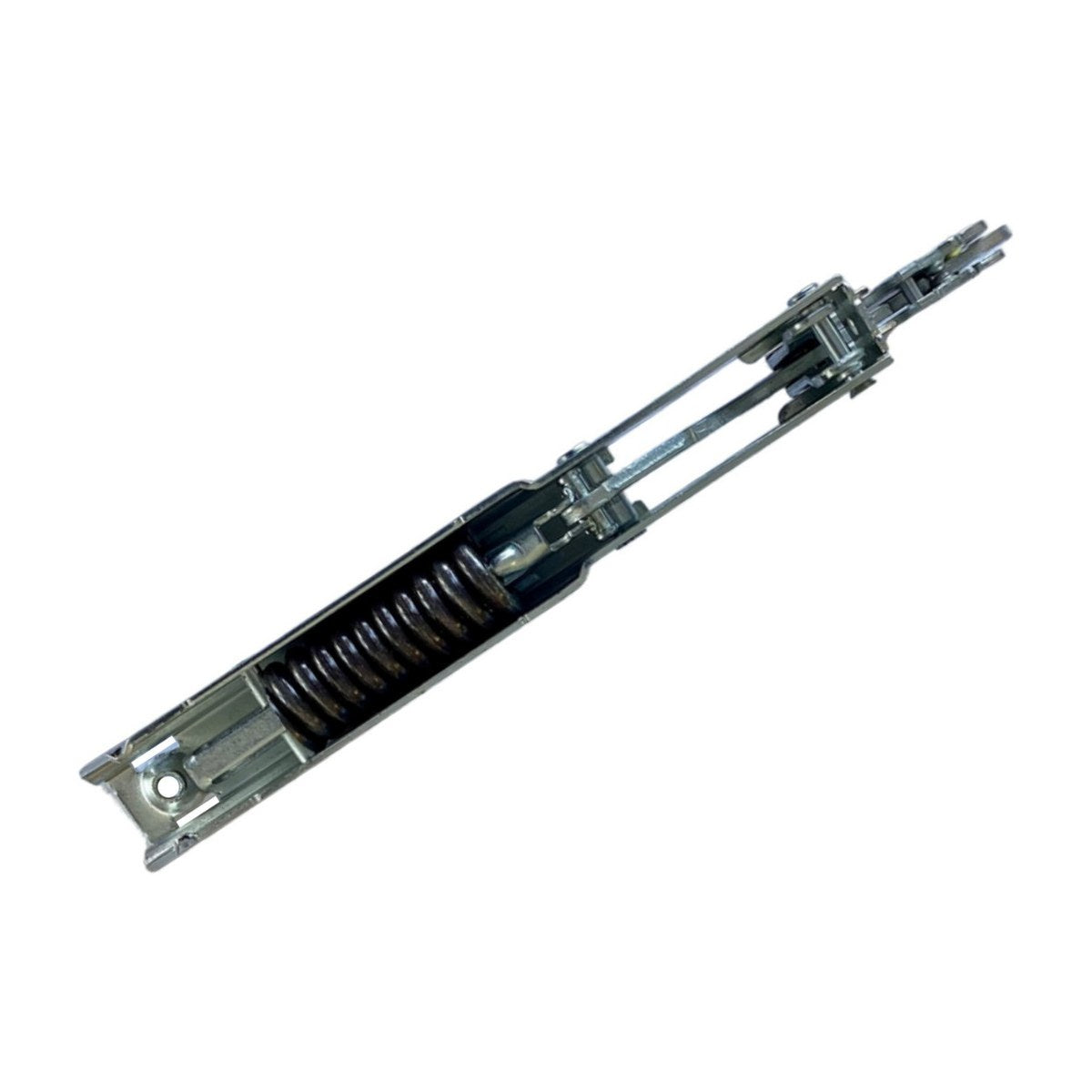

A heavy oven door is held up by two hinges, and each hinge relies on a stiff spring to balance the door's weight. After years of opening and closing, the spring tires or the hinge arm and pivot wear. The door then falls open on its own, slams down, sits unevenly, or leaves a gap at the top where heat escapes onto the knobs. A hinge can also be damaged by a heavy knock, such as someone leaning on the open door. Check both sides, as the second hinge has usually done the same amount of work.

Part details

• Genuine Smeg part 931331712
• Oven door hinge for Smeg cookers
• 19 models on file across the CS9, CS90, CS95 and FS9 ranges

Changing a Smeg oven hinge

The oven should be off and fully cool. Open the door wide and engage the hinge locks before lifting the door away, as the springs are strong enough to snap shut on fingers. Some models need the side panel loosened to reach the hinge receiver. Fit the new hinge, rehang the door, release the locks and check the door closes evenly against the seal.

Questions about this part

Where do I find my Smeg model number?

Look for the rating label, usually on the frame around the oven opening with the door open, or in the storage compartment on some cookers. It shows the model code, such as CS9GMXA, along with a serial number.
