878372P Genuine Ranco K59 Thermostat for Fisher & Paykel Fridges C240B C250T C370 C380B C390T N249T N325T N369B N395B N405T

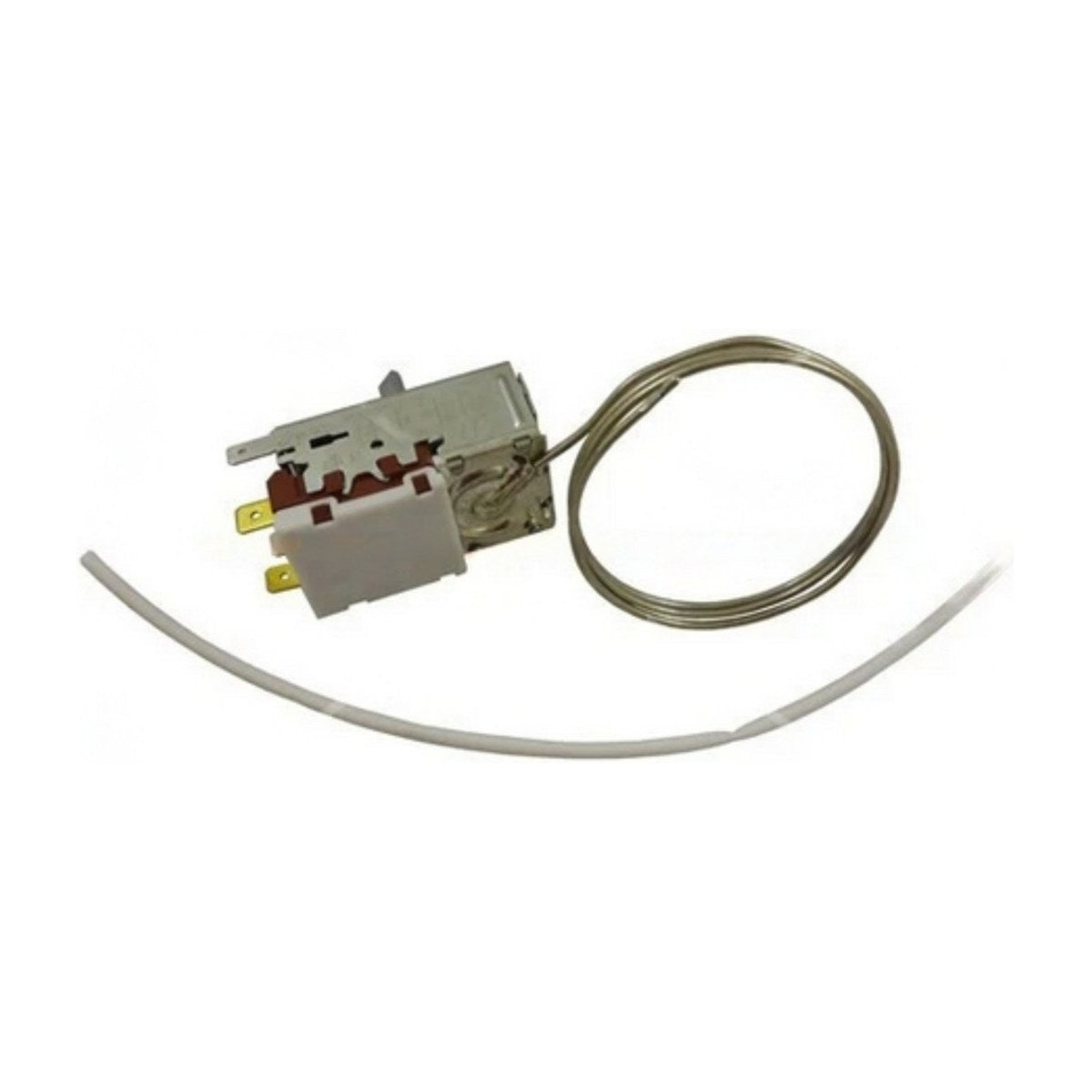

This genuine Fisher & Paykel thermostat, part 878372P, is a Ranco K59 control for older F&P fridges. It replaces both 883710P and 878259. The part is listed for 18 C and N series models, including the C170T, the C240B and C250T, the C370, the C380B and the C420T, and the N169T, N249T and N325T, plus the N369B, the N395B and the N405T.

Older F&P fridge running warm or not switching off?

This mechanical thermostat uses a gas-filled capillary tube to sense the temperature inside the fridge and opens or closes a switch to run the compressor. With age the contacts burn or the capillary loses its charge. The fridge then runs warm, cycles erratically, never switches off and freezes everything, or won't start at all even though the light comes on. Turning the dial without hearing a click is another hint. Before ordering, make sure the compressor and its starting relay aren't the real fault.

Part details

• Genuine Fisher & Paykel thermostat 878372P
• Ranco K59 series control
• Replaces 883710P and 878259
• Listed for 18 C and N series fridges

Replacing the thermostat

Unplug the fridge at the wall. Remove the dial and thermostat housing, then carefully withdraw the capillary tube, noting exactly where and how far it was clipped or inserted. Move the wires across one at a time. Route the new capillary in the same position without kinking it, refit the housing and give the fridge 24 hours to settle before adjusting the dial.

Questions about this part

Can I use this to replace 883710P or 878259?

Yes. 878372P is the current number that replaces both of those earlier thermostats, so it's the one to order if your old part carries either number and your fridge is on the list.
