869406P Genuine Fridge Water Filter Manifold 90 Degree for Fisher & Paykel Fridges RF610ADUX5 RF522ADUX5 RF610ADUSX5 E402BRXFDU5 E442BLXFDJ5

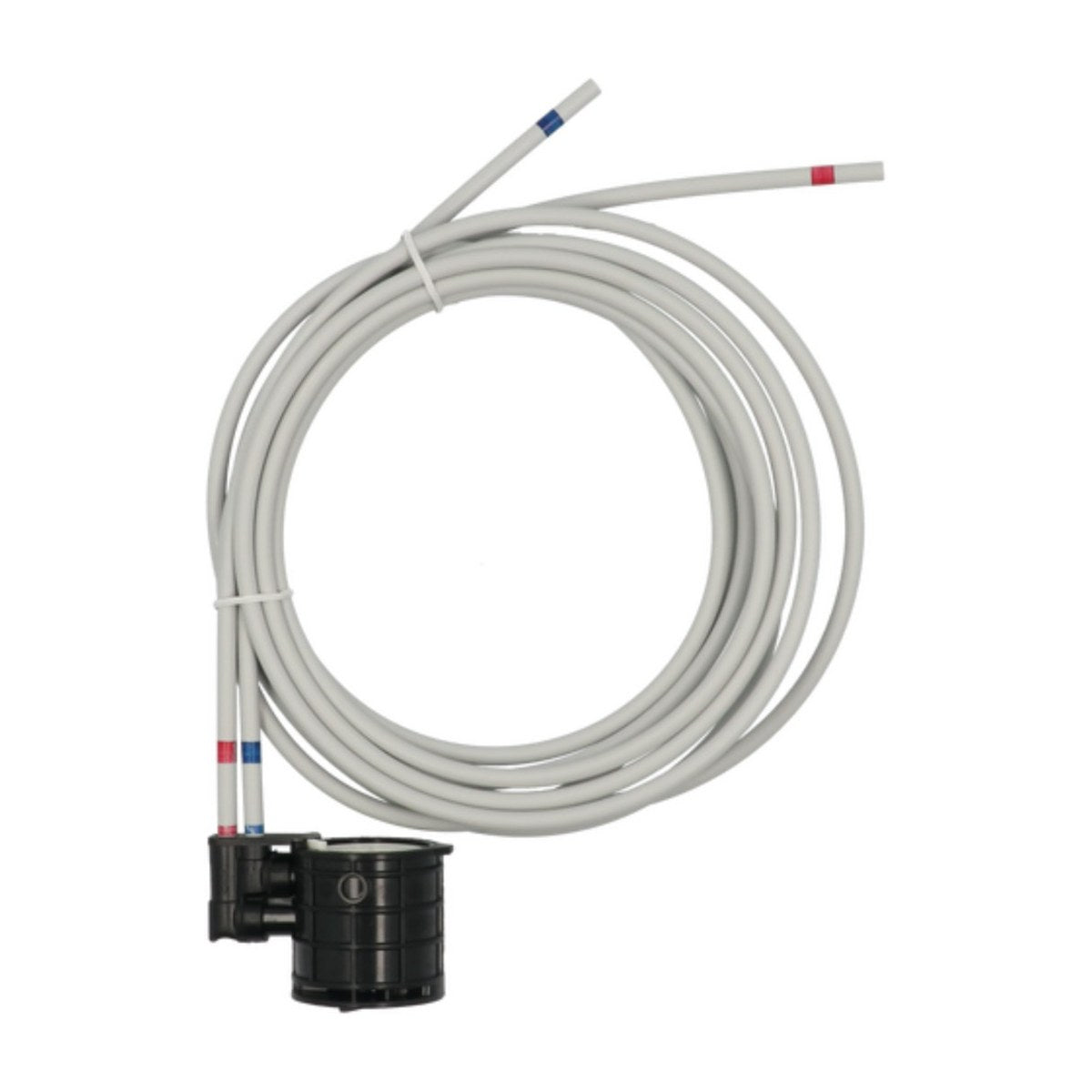

The 869406P is Fisher & Paykel's genuine water filter manifold, the 90 degree head that the filter cartridge locks into inside the fridge. It accepts the 847200 or 847201 cartridge. Models on file include the RF610ADUX5 and RF610ADUSX5, the RF522ADUX5 and RF522ADUB5, the RF522WDLUX4 and RF522WDLUX5, and the E402BRXFDU4, E402BRXFDU5 and E442BLXFDJ5. Fisher & Paykel number 847312 is linked to it.

Fridge filter leaking or cartridge won't lock in

All the water heading to the dispenser and ice maker passes through this manifold. The supply line feeds into it, the water runs through the cartridge, and the filtered water leaves on the outlet side. Over time the plastic can crack, the internal seals can wear, and the locking lugs can break. That shows up as water pooling in the fridge or underneath it, a cartridge that won't turn into place or drops out, a dispenser that spits air, or no water at all. When a new cartridge doesn't cure the leak or the fit, replace the manifold.

Part details

• Genuine Fisher & Paykel part 869406P
• 90 degree water filter manifold for an internal filter setup
• Accepts 847200 or 847201 cartridges
• Linked to Fisher & Paykel number 847312

Fitting the manifold

Shut the water supply valve feeding the fridge and switch the power off at the wall. Remove the cartridge and lay a towel down to catch spills. Note which line goes to the inlet and which to the outlet before you disconnect them, then unclip the old manifold. Mount the new one, reconnect each line fully, fit the right cartridge for your fridge and flush several litres through the dispenser while checking for leaks.

Questions about this part

What's the difference between 869406P and 847312?

847312 is listed against this manifold as a related Fisher & Paykel number. Confirm your fridge model is on the list, and make sure the cartridge you fit is the one specified for your fridge.
