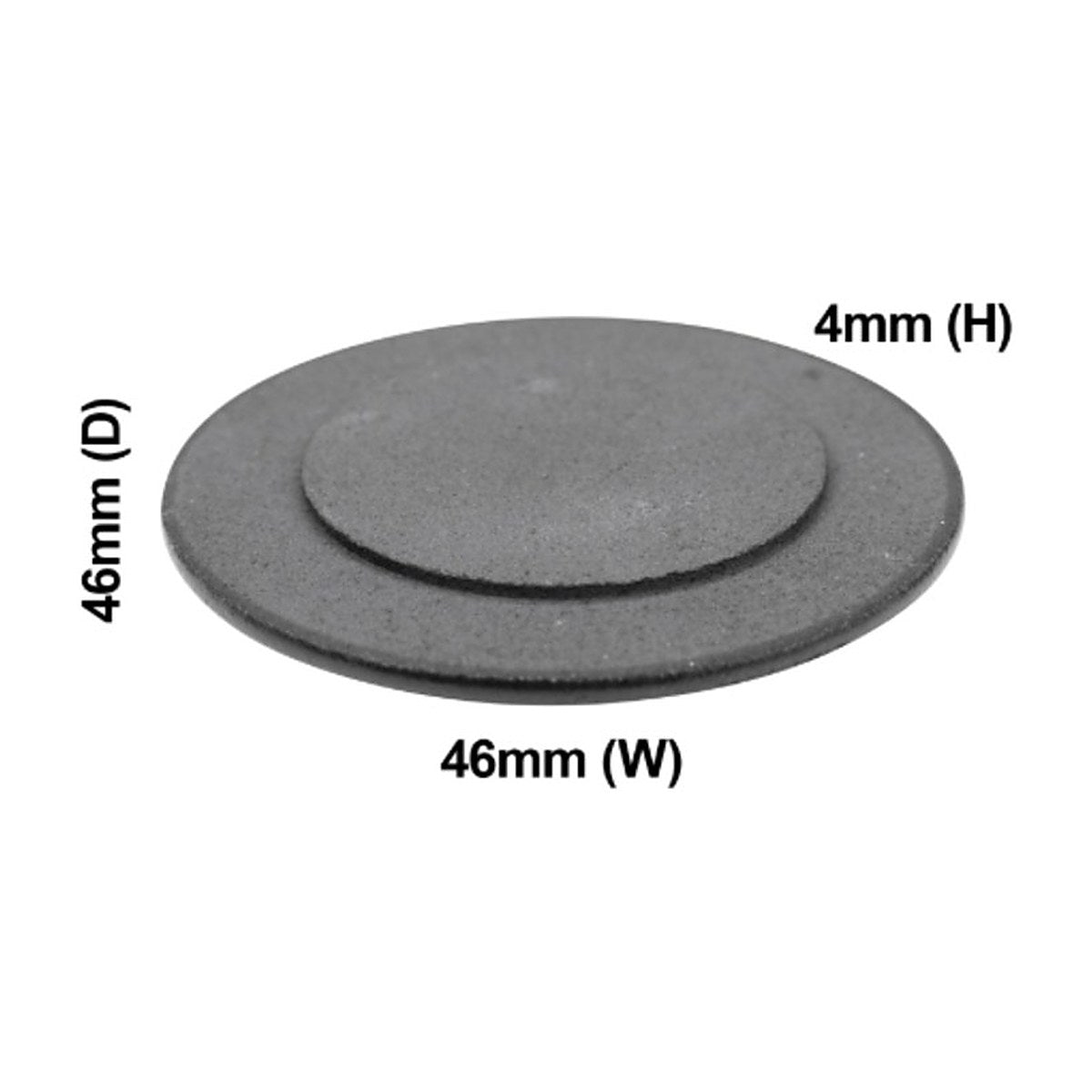

8583890513077 Genuine Inner Burner Cap for Triple Ring Wok Burner, Electrolux Group Gas Cooktops

The centre of a triple ring burner needs its own small cap, and this is it. Part 8583890513077 is a genuine Electrolux inner cap for the triple burner on Electrolux group gas cooktops. It sits in the middle of the burner, inside the outer flame rings. Triple burners differ between cooktops, so confirm 8583890513077 in your parts list or compare it with your old inner cap before ordering.

Triple burner centre flame uneven or lifting?

A triple ring burner, often called a wok burner, has three rings of flame to deliver high, even heat. The inner cap covers the centre crown and shapes the innermost ring. If it's chipped, rusted, warped or not sitting flat, the centre flame can burn yellow, lift off the burner or go out on low. Caps often get lost or mixed up during cleaning, and a cap from another burner won't seat correctly. Replacing the inner cap usually brings the flame pattern back.

Part details

• Genuine Electrolux part 8583890513077
• Inner cap for the triple ring burner
• For Electrolux group gas cooktops
• Check your model's parts list for a match

Seating the inner cap

Make sure the burner is off and cold. Clean the centre crown with warm soapy water, dry it thoroughly and clear any blocked ports with a soft brush. Place the inner cap so it sits flat and centred without rocking, then refit the outer cap. Light the burner and check each ring burns evenly. Any work on the gas supply or injectors needs a licensed gas fitter.

Questions about this part

Do I need to replace the outer cap as well?

Only if it's damaged too. This listing is the inner cap only. Look at the outer cap for chips, rust or warping, and if it needs replacing, check your parts list for its separate part number.
