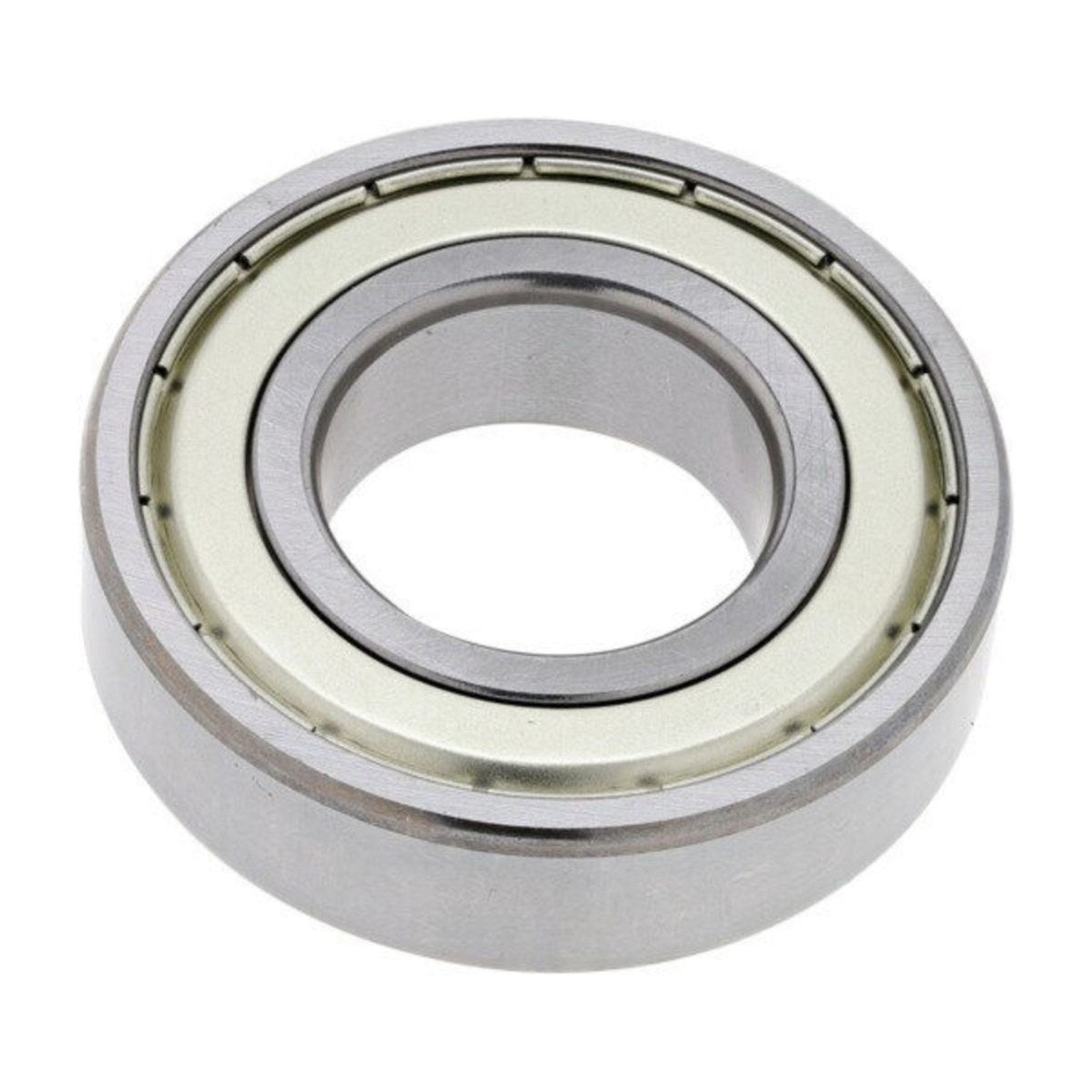

8583790802109 Genuine Drum Bearing 6206-2Z 30x62x16mm for Electrolux, Simpson, Westinghouse Washing Machines EWF14013 EWF12822 SWF12843

8583790802109 is the genuine 6206-2Z ball bearing, sized 30 x 62 x 16mm, used on the drum shaft of Electrolux, Simpson and Westinghouse front load washing machines. It is also listed as 3790800217. Models on file include the EWF12822 and EWF14013, the EWF14822, the EWF1042BDWA and EWF9024Q5WB, the EWW14912 and the SWF12843, along with a long list of product numbers starting 91490.

Front loader roaring on spin? Worn drum bearings

The drum shaft runs through two bearings pressed into the rear of the tub, with a seal in front to keep water out. When the seal starts to leak, water washes the grease out and the bearings rust and wear. The first sign is usually a rumble or roar that gets louder as the spin speeds up. Later you may feel play when you lift the drum at the front edge, see rust streaks from the back of the tub, or hear grinding. Left too long, worn bearings can damage the shaft and tub.

Part details

• Genuine Electrolux group bearing 8583790802109
• Bearing size 6206-2Z, 30 x 62 x 16mm
• Also listed as 3790800217
• Listed for Electrolux EWF and EWW models, plus Simpson and Westinghouse models on file

Planning a bearing replacement

Bearing replacement is a major job. Unplug the machine and turn off the water, then the tub has to be removed and split to reach the bearings, so check that your tub can be separated before buying. Replace both bearings and the shaft seal together, and inspect the shaft for wear where the seal runs. Press bearings in evenly on the outer race, never by hitting the inner race.

Questions about this part

Do I need two of these?

Usually not. Most front loaders use two bearings of different sizes, plus a shaft seal, and this is the 6206-2Z size. Check the second bearing and the seal for your model, or send your model and product number through the parts enquiry form and we will match the full set.
