8583740637316 Genuine Ceramic Cooktop Element 210mm 2300W 240V for Electrolux, Westinghouse Cooktops EHC947U WHC642BA WHC642BC PHR284U

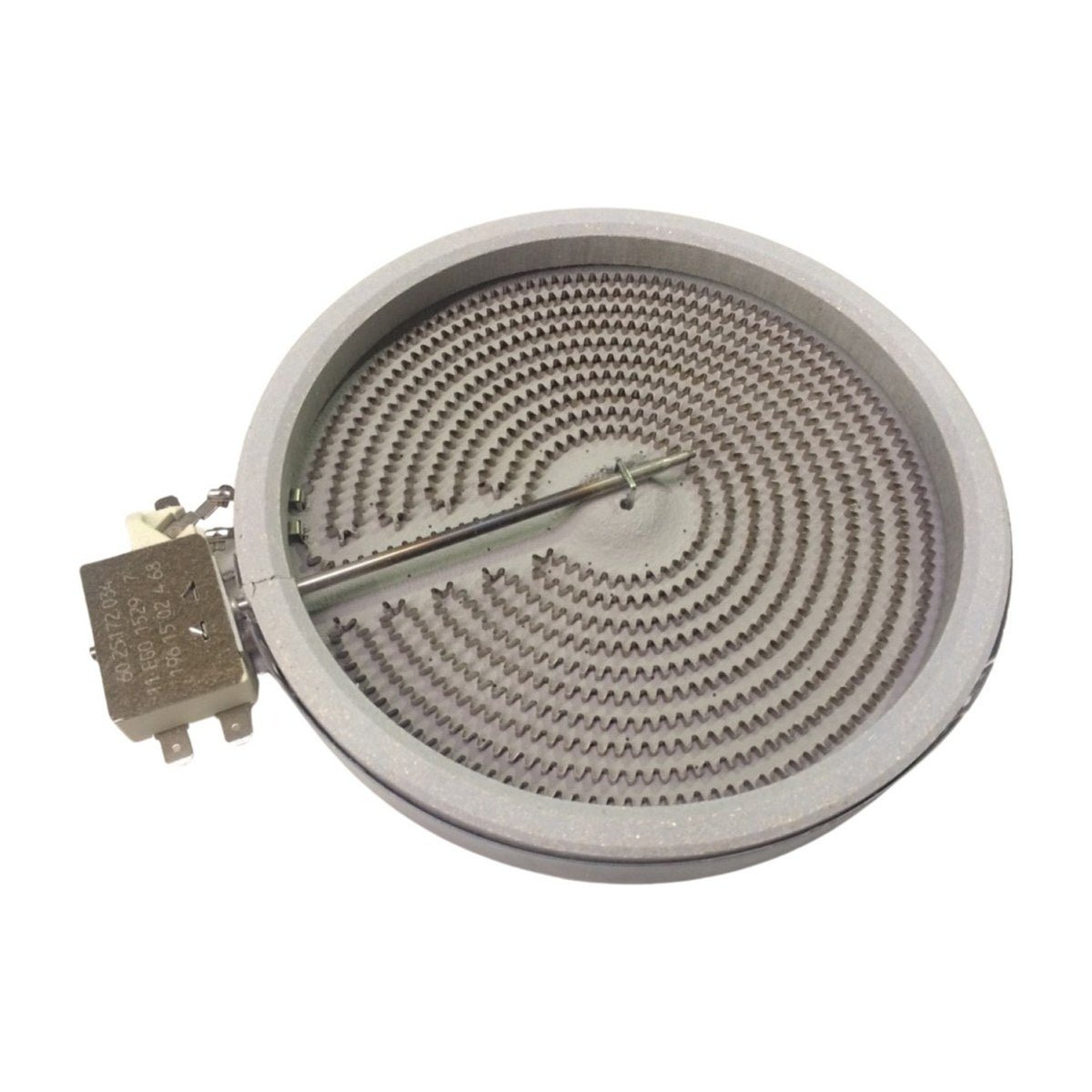

Part 8583740637316 is a genuine 210mm radiant element rated at 2300W and 240V, made to sit under the glass of Electrolux and Westinghouse ceramic cooktops. It is listed for the EHC947U, the WHC642BA and WHC642BC, and the PHR284U. The element is also known by the numbers 4055539342 and 3740637214, one of which may be printed on the label of your old element.

Ceramic cooktop zone not glowing or heating

Under each zone of a ceramic cooktop sits a radiant element, a coiled ribbon set into an insulated dish. When powered it glows red and heats the glass above. Many elements also carry a limiter rod across the top that cuts power if the glass gets too hot. A burnt out element leaves the zone dark and cold, while a partly damaged one may glow only in patches. If the zone lights briefly then switches off over and over, the limiter may be at fault. Test the element and regulator before deciding which has failed.

Part details

• Genuine Electrolux group element 8583740637316
• 210mm diameter
• 2300W at 240V
• Cross references 4055539342 and 3740637214
• Listed for the EHC947U and PHR284U, plus WHC642BA and WHC642BC

Fitting a radiant element

Isolate the cooktop at the circuit breaker, as it is hard-wired, and have a licensed electrician do the job. The glass top usually has to come off to reach the elements, so lift it carefully onto a soft surface. Note the wiring to the element and any limiter, transfer it across and seat the new element flat in its position. Refit the glass and check the zone heats evenly.

Questions about this part

Is this the right size for my cooktop zone?

This element is 210mm across. Measure the dish of your old element or check the circle printed on the glass, then confirm your model on the rating plate under the cooktop. Listed models are the EHC947U and PHR284U, plus the Westinghouse WHC642BA and WHC642BC.
