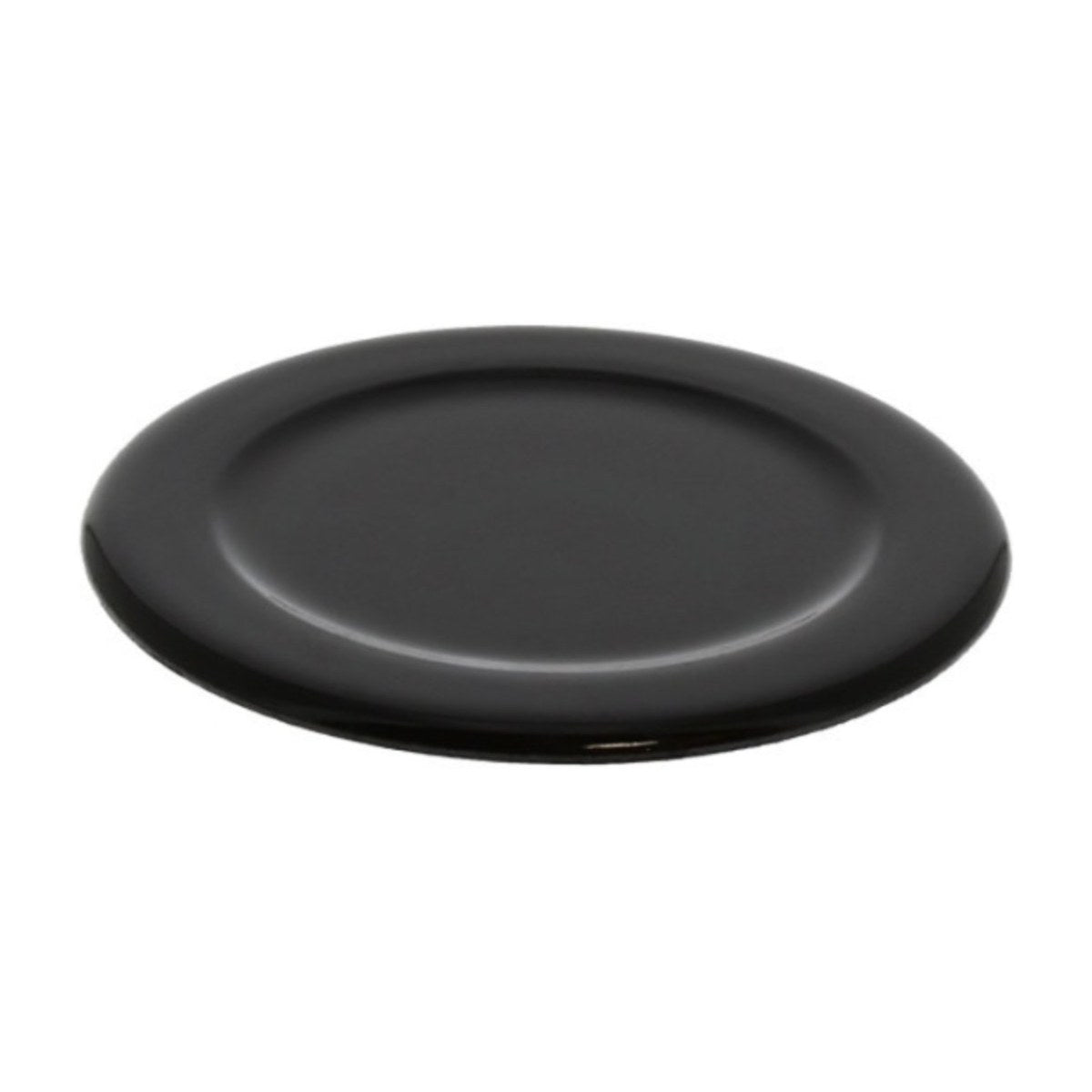

8583540170054 Genuine Semi Rapid Burner Cap 2mm Black for Chef Gas Cookers CFG501WBLP CFG503WBNG CFG504SBNG CFG517SBLP CFG517WBNG
- Original part no.
- 8583540170054
- Part grade
- Genuine
- Appliance
- Upright Cooker Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Chef CFG501, CFG503, CFG504 and CFG517 gas cookers use burner cap 8583540170054 on their semi rapid burners. It's a genuine black cap, listed as the 2mm version, and it's on file for both the natural gas (NG) and LPG versions of these models. The short number is 354017005.
Uneven flames on a Chef cooktop? Check the burner cap
The cap sits on top of the burner head and spreads the gas out to the flame ports in an even ring. A cap that is warped, chipped, badly corroded or sitting off-centre gives patchy, lifting or yellow flames, and can make the burner slow to light or keep clicking after it lights. Caps also go missing or get damaged during cleaning. The semi rapid burner is the medium sized burner on most cooktops, so make sure you're replacing the cap on the right one.
Part details
- Genuine Chef part 8583540170054
- Short number 354017005
- Semi rapid burner cap, black, listed as 2mm
- Listed for CFG501, CFG503, CFG504 and CFG517 cookers, NG and LPG
| Burner | Semi rapid |
|---|---|
| Colour | Black |
| Listed size | 2mm |
Fitting the burner cap
Make sure all burners are off and the cooktop is cold. Lift off the old cap, clean the burner head and its ports with a soft brush, and dry everything fully. Seat the new cap so it sits flat and centred. Light the burner and check for an even blue flame all the way round. If the flame still looks wrong, have a licensed gas fitter check the burner.
Questions about this part
Will a cap from another burner fit?
No. Burner caps are sized to suit each burner, so a semi rapid cap won't sit correctly on a rapid or auxiliary burner. Check which position your old cap came from before ordering.
Specifications
| Original part number | 8583540170054 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 8583540170054 |
| Appliance | Upright Cooker Parts |
| Shipping weight | 0.15 kg |
