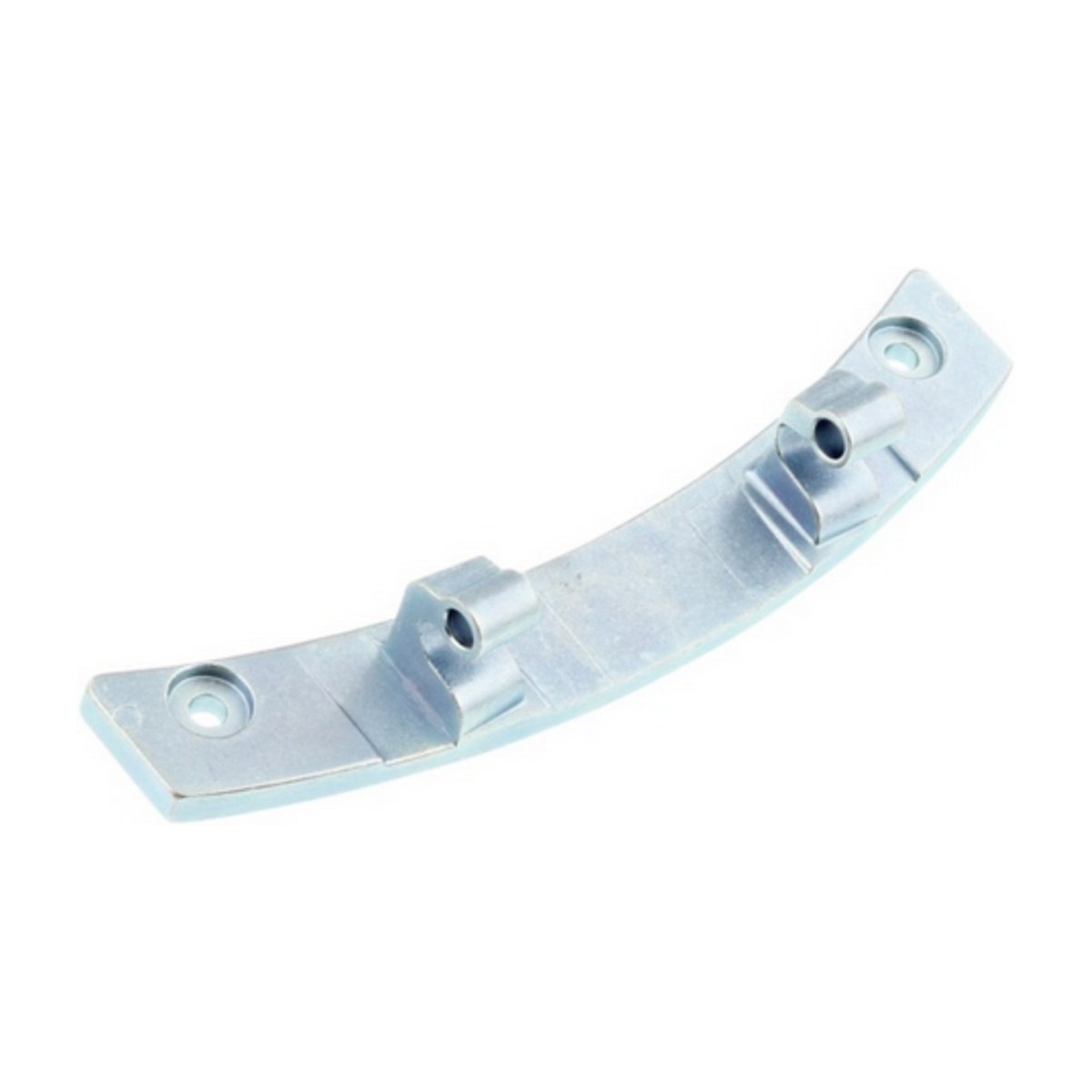

8581366253236 Genuine Dryer Glass Door Hinge for AEG, Electrolux Dryers EDH3586GDW EDH3786GDW EDC2086GDW EDC2075GDW EDH3896GDW T86280IC T96690IH

8581366253236 is the genuine hinge for the glass door fitted to a number of AEG and Electrolux dryers. You may also see it listed as 1366253233 or 1366253209. Electrolux models on file include the EDC2075GDW and EDC2086GDW, along with the EDH3586GDW, EDH3786GDW and EDH3896GDW. For AEG, it suits the T76280AC and T86280IC, the T96690IH and T97689IH, and the TE1120.

Dryer door sagging, not latching or hanging loose

A glass dryer door is heavier than a plain plastic one, and the hinge carries all of that weight each time the door swings open for loading. Leaning on the open door, draping washing over it or knocking it with a basket can crack the hinge or work its screws loose. You might notice the door dropping at the latch side, rubbing as it closes, failing to catch, or the dryer refusing to start because the door switch isn't being pressed. A hinge that has cracked right through can let the door fall off completely.

Part details

• Genuine Electrolux group part 8581366253236
• Alternative numbers 1366253233 and 1366253209
• Hinge for dryers with a glass door
• Listed for 10 AEG and Electrolux dryer models

Swapping the door hinge

Unplug the dryer first. Support the door while you undo the hinge screws so the glass doesn't drop. Some models need the front panel or door trim removed to reach the hinge, so take photos as you go. Fit the new hinge, tighten the screws evenly and check the door lines up with the catch and closes without rubbing.

Questions about this part

Where is the model number on my AEG or Electrolux dryer?

Open the door and look around the door opening for the rating label. It shows the model, such as EDH3786GDW or T86280IC, along with a product number. Match the model to the list, or send both numbers through the parts enquiry form.
