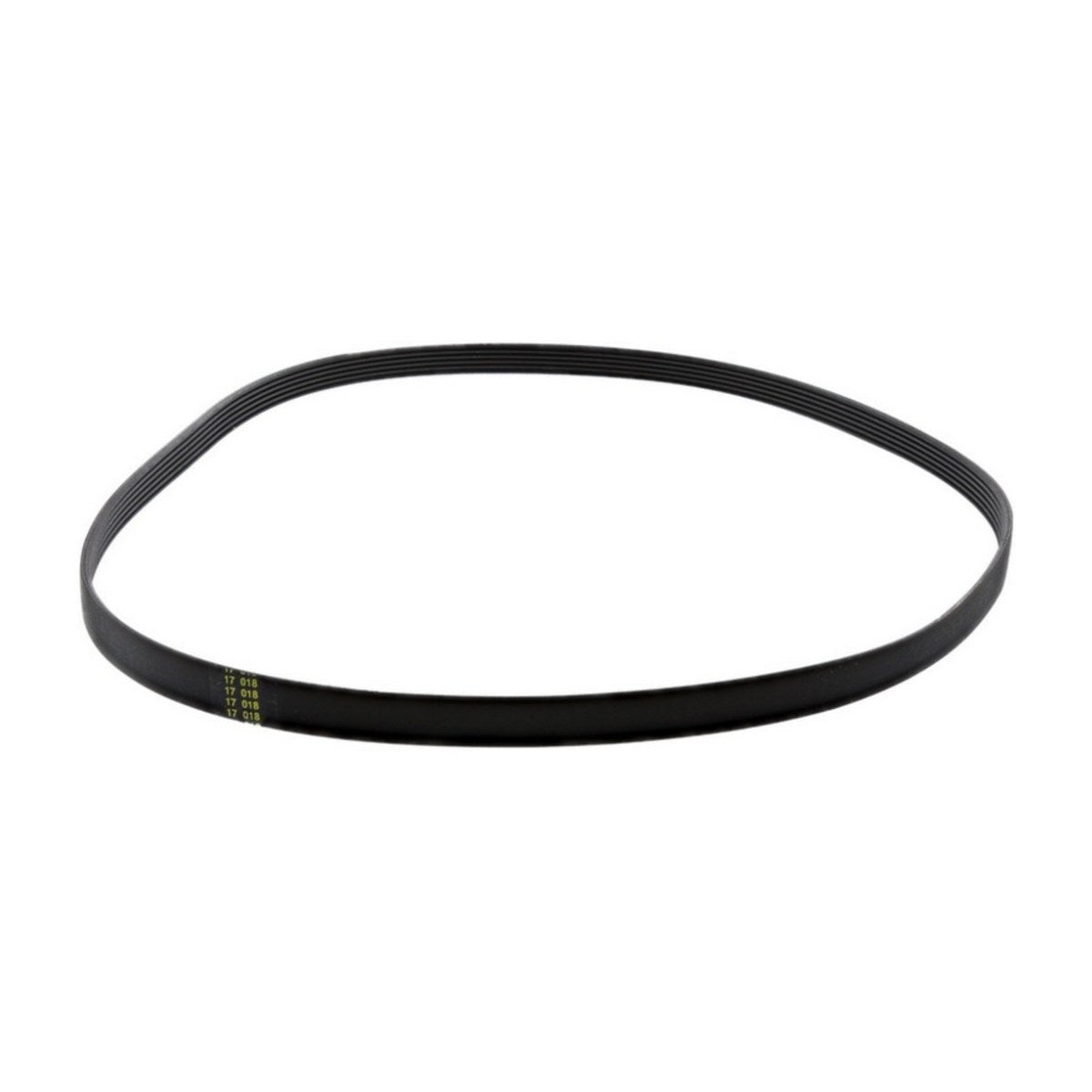

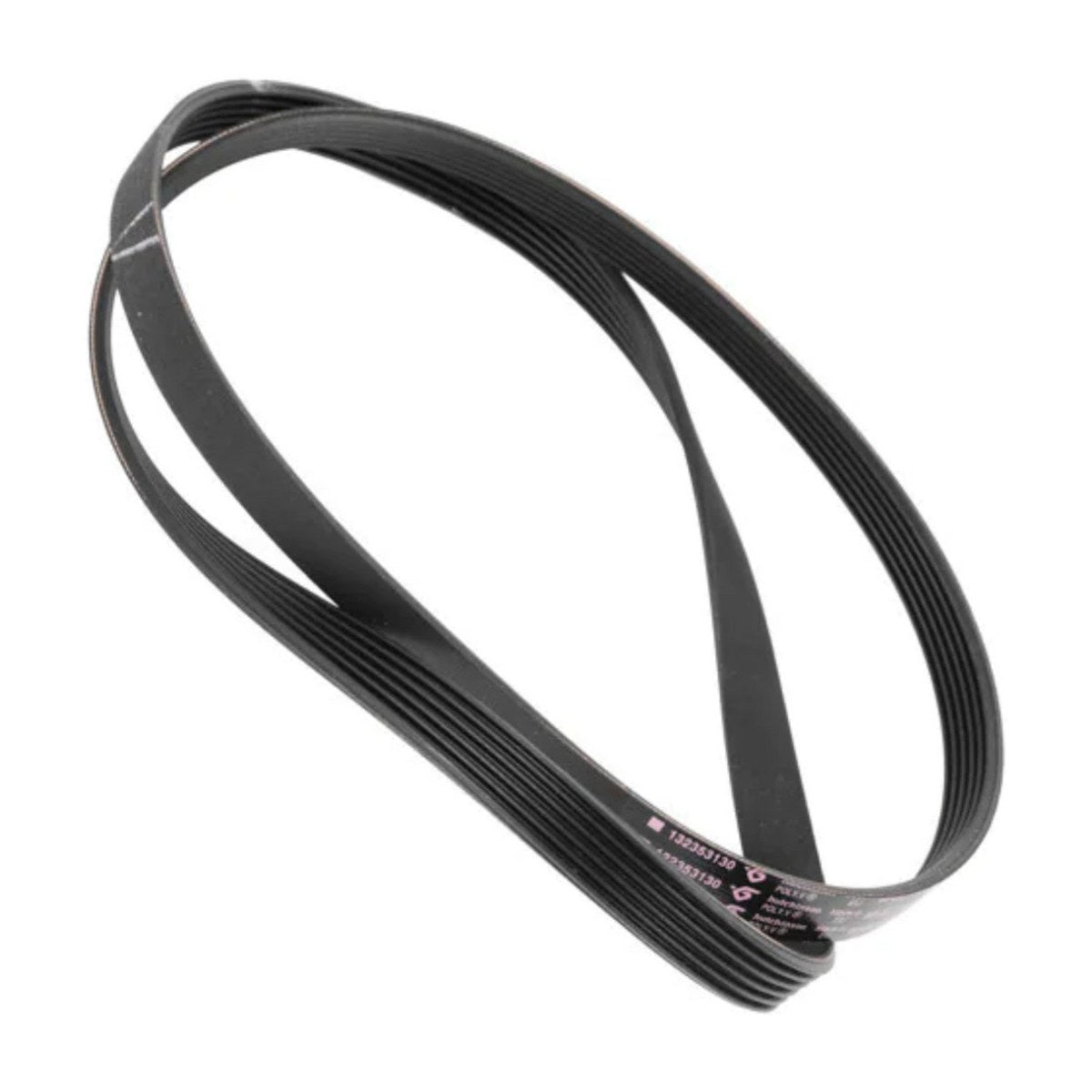

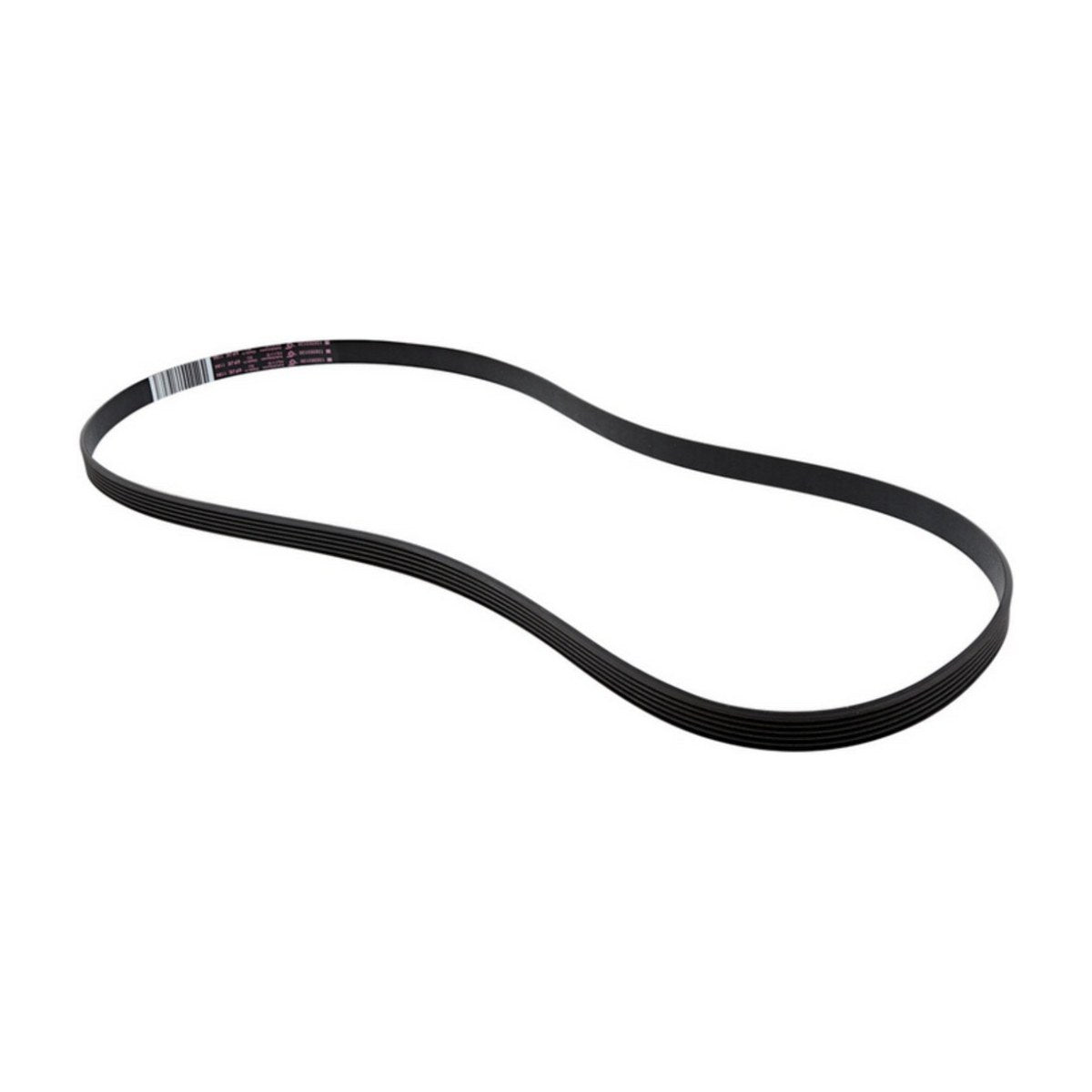

8581323531302 Genuine Washing Machine Drive Belt 1184J6 for Electrolux, AEG, Simpson Washers EWF1083 EWF10831 EWF12821 EWF14811 SWF10832 L62800

Part 8581323531302 is the genuine rubber drive belt for a range of Electrolux, AEG and Simpson washing machines, coded 1184J6. Electrolux also lists it as 1323531309. It is listed for 22 models. These include the Electrolux EWF1074 and EWF1083, the EWF10831, EWF12821 and EWF14811, and the EWW1273, the Simpson SWF1076 and SWF10832, and AEG models such as the L62800 and LAV76760.

Washing machine drum not spinning but the motor runs?

On belt driven washers the motor sits under the tub and drives the large drum pulley at the back through this belt. When the belt stretches, frays or comes off, the drum stops turning or turns weakly while the motor still runs. You might hear the motor whirring with no drum movement, notice a burning rubber smell, find clothes still soaking wet after spin, or see the old belt lying in the base of the machine. A belt that keeps jumping off can point to a worn pulley, loose motor mounts or failing drum bearings, so check those too.

Part details

• Genuine Electrolux group part 8581323531302
• Also listed as 1323531309
• Belt code 1184J6, J section with 6 ribs
• Rubber drive belt
• Listed for 22 Electrolux, AEG and Simpson models

Fitting a washer drive belt

Unplug the washer and turn off the taps. Remove the panel that gives access to the pulleys, usually the rear one. Check the code printed on the old belt matches 1184J6. Seat the belt in the grooves on the motor pulley first, then roll it onto the big drum pulley while turning it by hand, keeping your fingers clear of the spokes. Turn the drum a few times to make sure it tracks straight.

Questions about this part

What does 1184J6 mean?

It is the belt size code. The 1184 is the length and J6 means a J profile belt with six ribs. Matching this code on your old belt is a reliable way to confirm the replacement before ordering.
