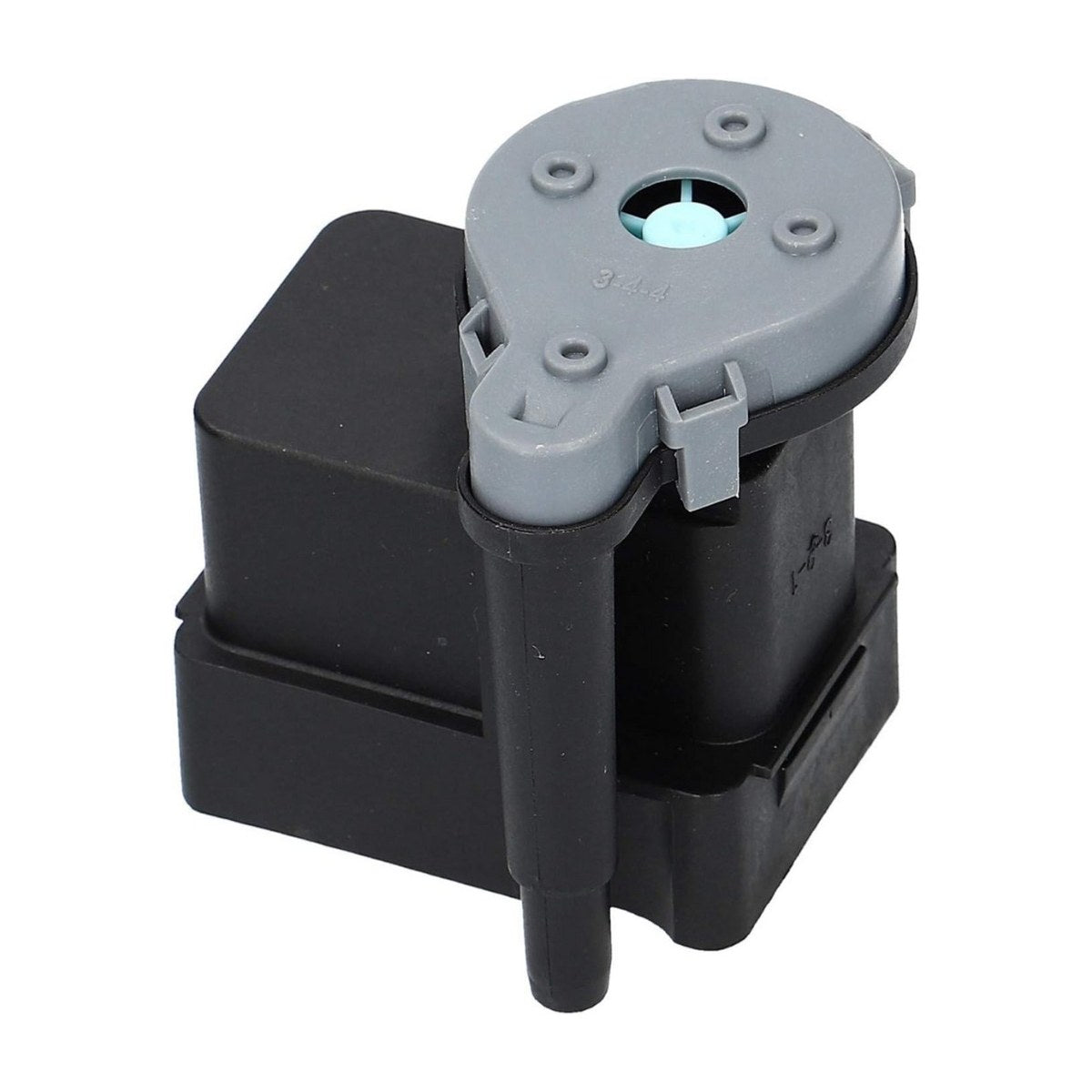

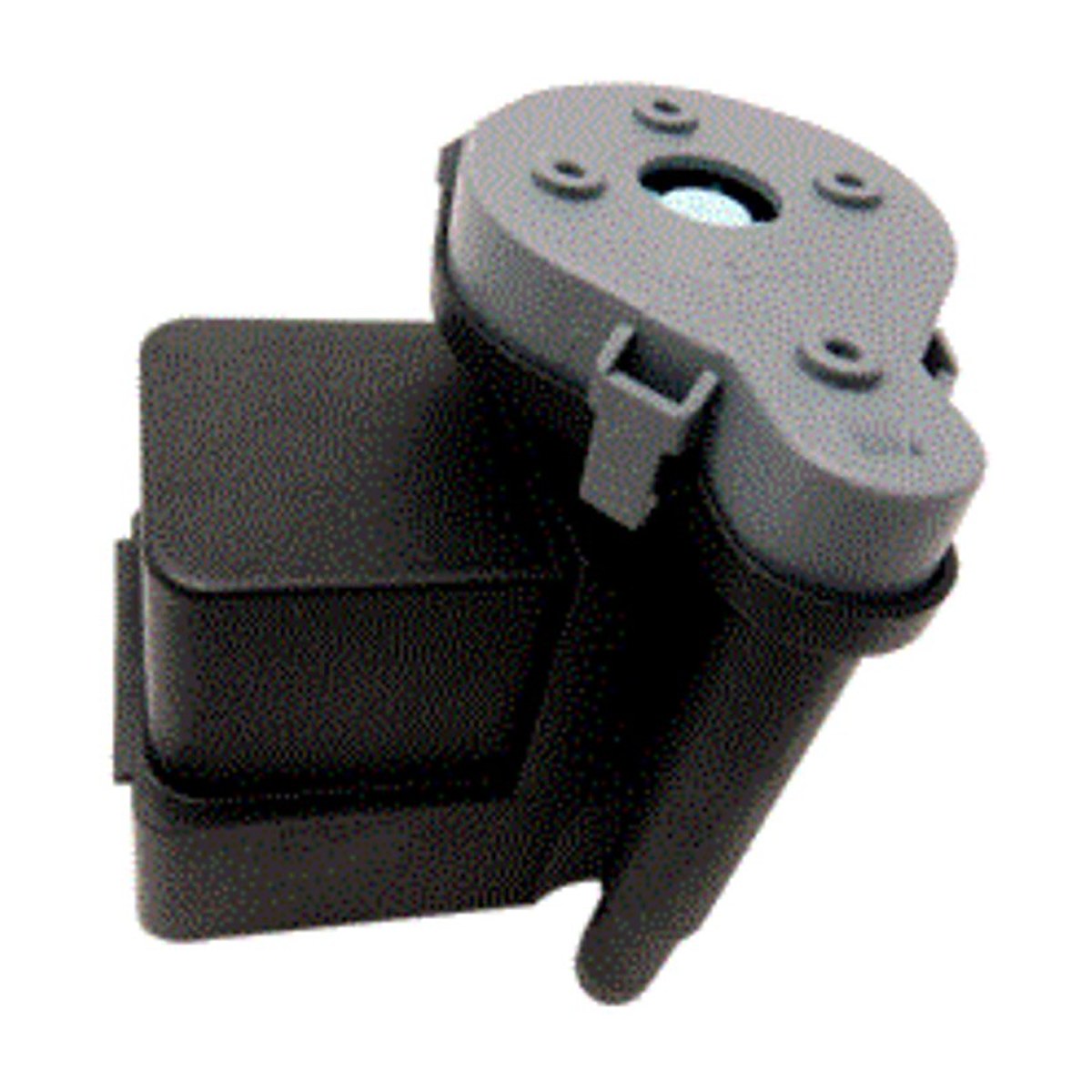

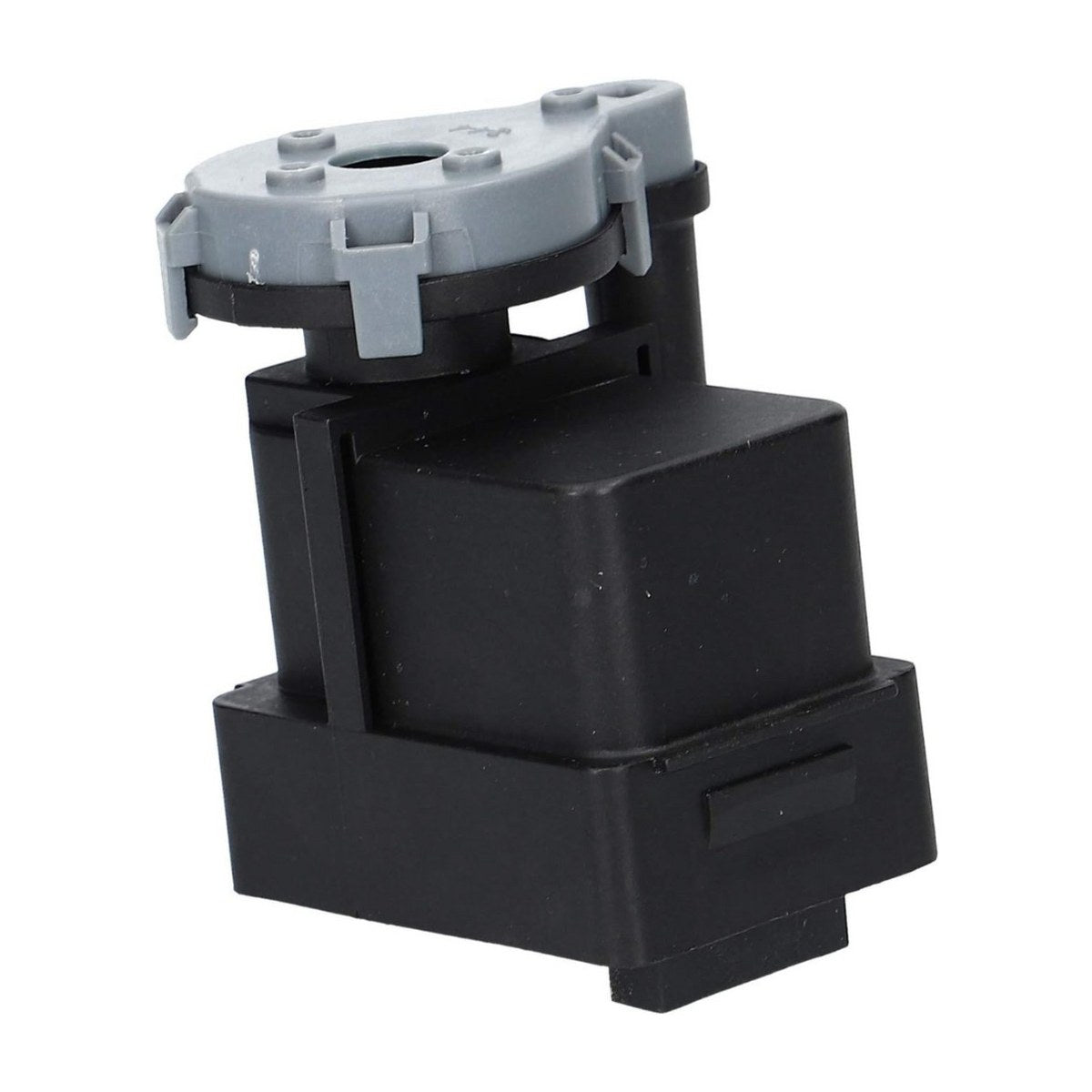

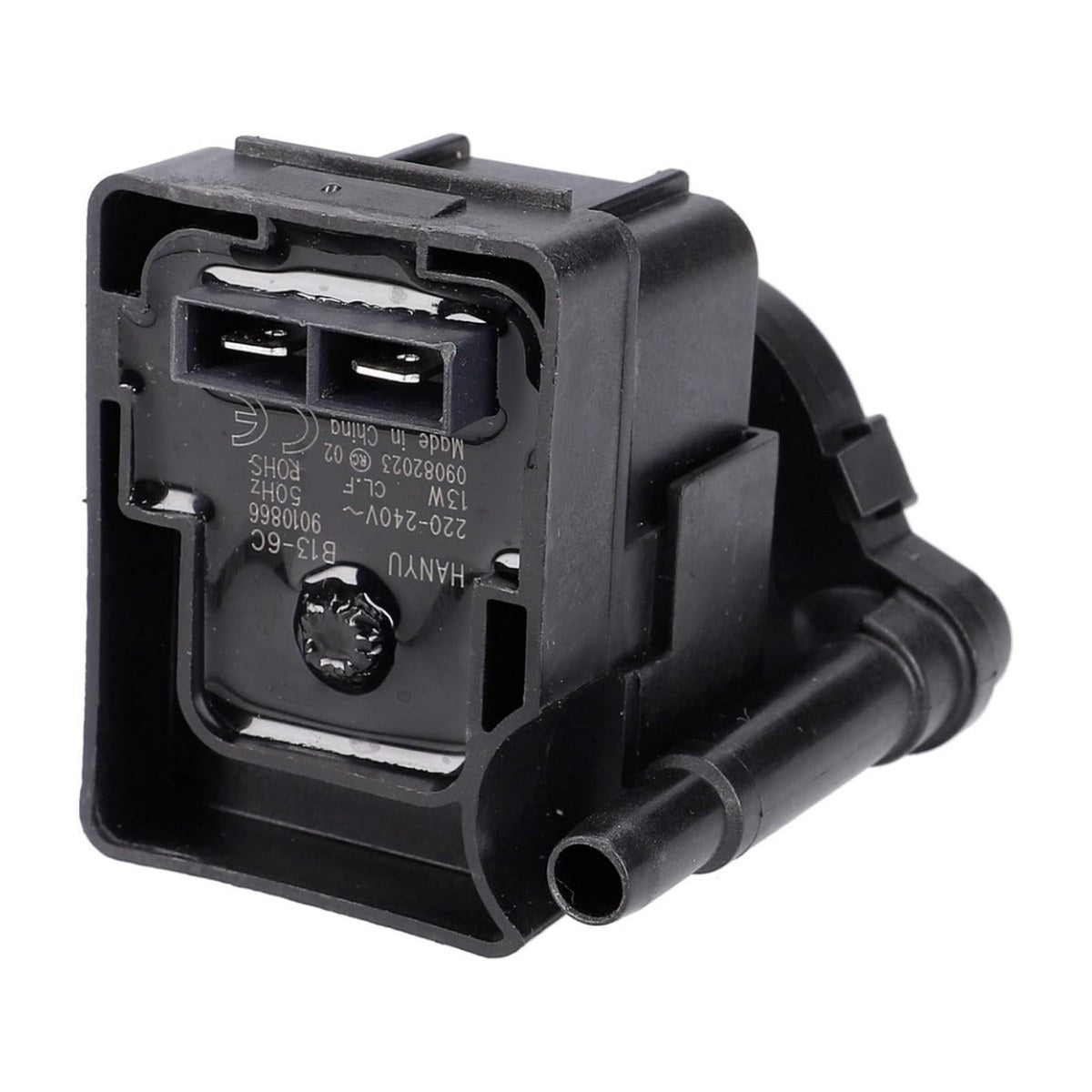

8581258349217 Genuine Condensation Pump for Electrolux, Westinghouse Dryers EDH3284PDW EDC2086PDW EDP2074PDW EDH903BEWA WDH904N7WA WDH804N8SA

Electrolux and Westinghouse condenser and heat pump dryers rely on this small pump to move water out of the base. Part 8581258349217 is the genuine Electrolux pump, also sold as 1258349214. It suits a list of models including the Electrolux EDC2086PDW, EDH3284PDW, EDP2074PDW and EDH903BEWA, plus Westinghouse WDH804N8SA and WDH904N7WA dryers.

Dryer water container not filling? Suspect the pump

Moisture taken out of the clothes condenses into water that collects in a sump at the bottom of the dryer. This pump lifts that water up to the removable container so you can tip it out. When the pump fails, the container stays dry even after a full load, the tank warning may come up anyway, or the dryer stops partway through. You may also hear the pump hum or buzz without moving any water, or find water pooling under the machine. Lint getting past the filters is a common culprit, so clean those as well.

Part details

• Genuine Electrolux part 8581258349217
• Also listed as 1258349214
• Condensation pump for condenser and heat pump dryers
• Suits Electrolux EDC, EDH, EDI and EDP models
• Also listed for Westinghouse WDH804N8SA, WDH904N7SA and WDH904N7WA

Replacing the condensation pump

Unplug the dryer and empty the water container. Expect some water to be sitting in the base, so lay towels down before you open it up. Photograph the wiring and hose positions, then swap the pump and clean any lint out of the sump and pump housing. Once it is back together, run a short drying program and check that water reaches the container.

Questions about this part

How do I know if it's the pump or a blocked hose?

If the pump runs and hums but the container stays empty, look for lint blocking the sump or the hose to the container first. A pump that stays silent while there is water in the base is more likely to have failed.
