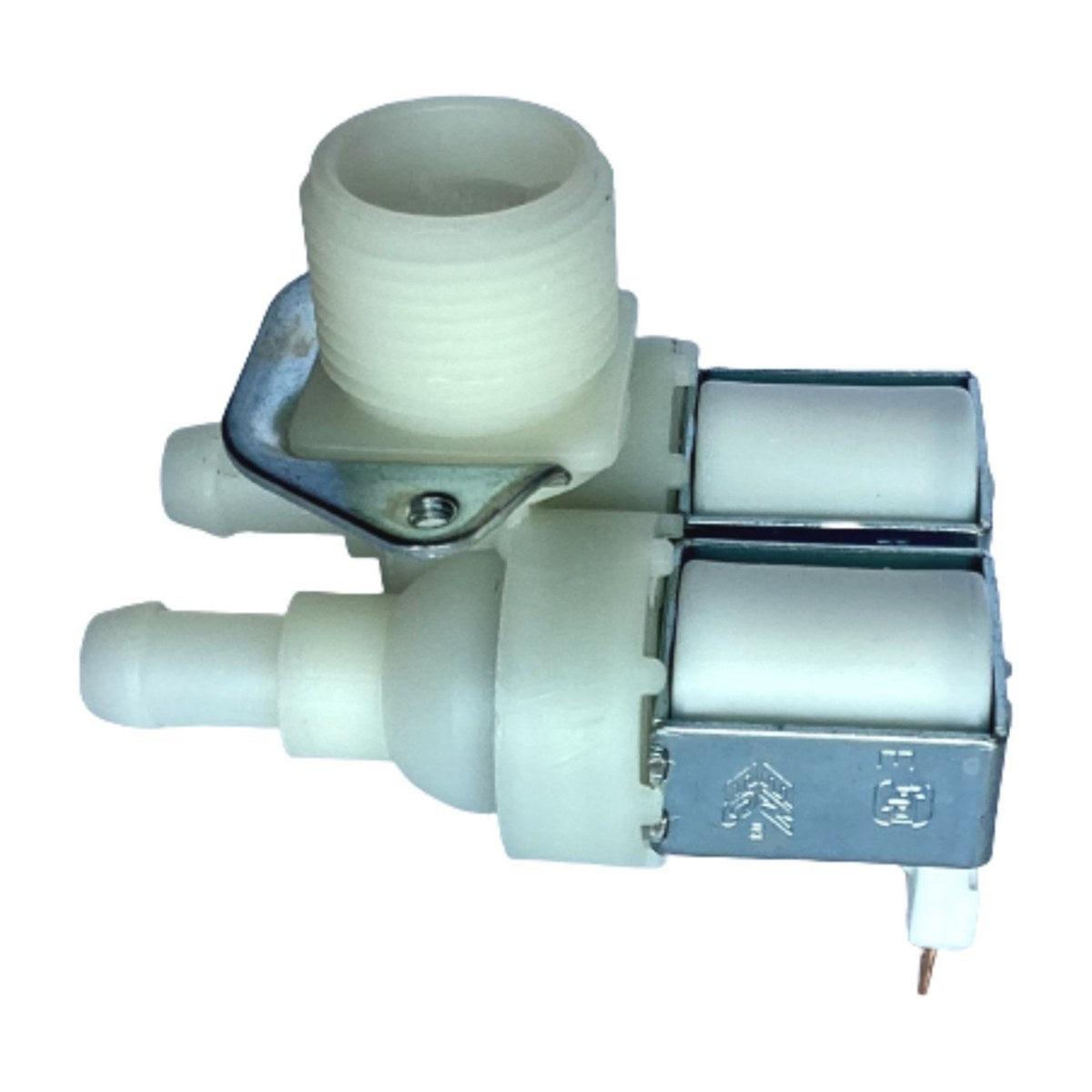

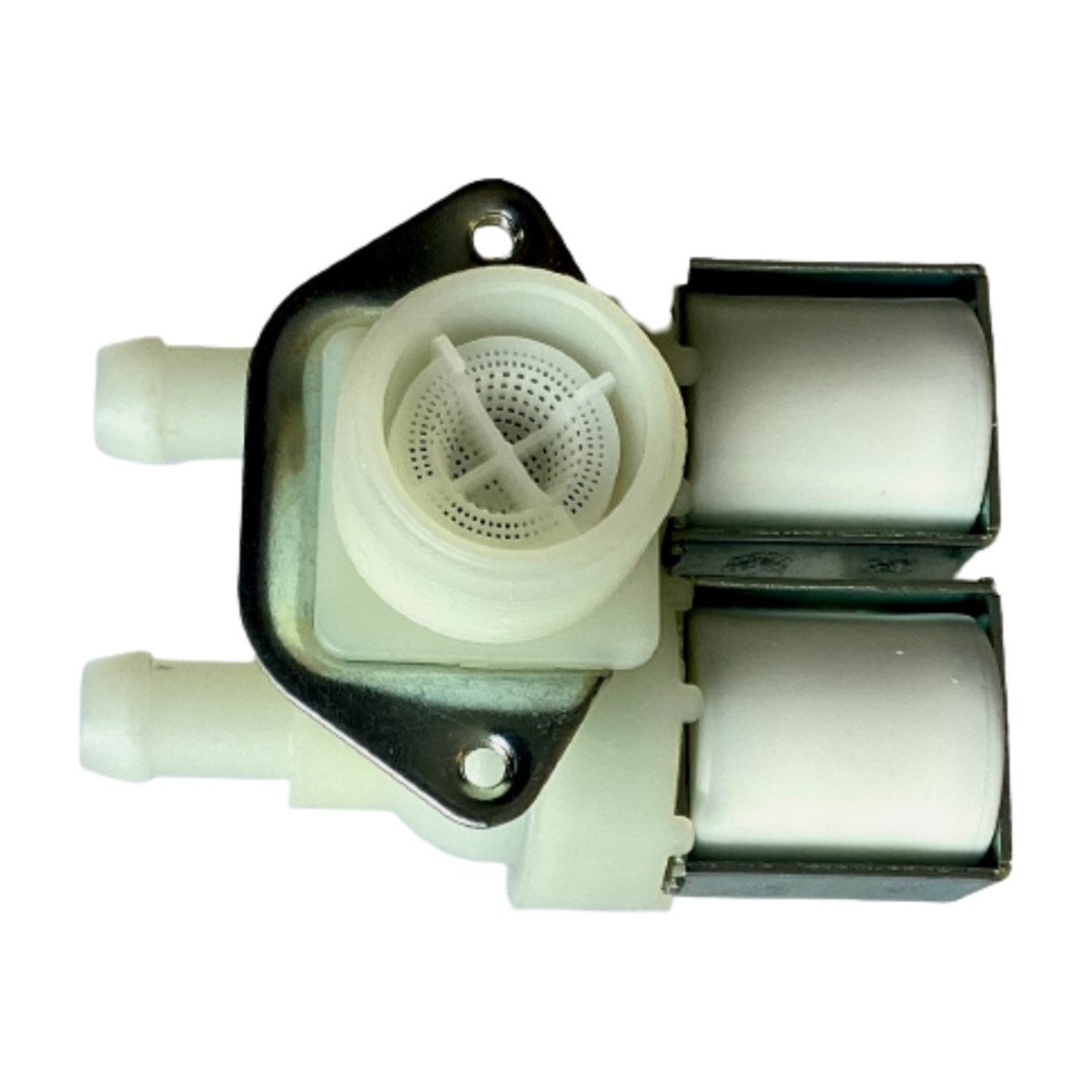

8581190308107 Genuine 90 Degree Dual Inlet Valve for Simpson, Westinghouse Washing Machines SWT954 SWT8542 SWT9542 SWT1012A WWT854 WWT8011

For Simpson and Westinghouse top load washers, 8581190308107 is the genuine double inlet water valve, a 90 degree mix type also known as 119030810. On the Simpson side it's listed for the SWT801 and SWT954, the SWT1012A, and the SWT7542 through SWT9542 machines. It also suits the Westinghouse WWT854 and WWT8011. The 90 degree layout matters, so compare it with your old valve.

Washer not filling or wrong water temperature

This valve controls both water supplies into the machine. Each side has its own solenoid coil, and the controller opens one or both to give the wash temperature you've selected. If a coil fails, you might get only cold water, only hot, or no fill at all on some programs. A valve that won't shut off completely lets water seep into the tub when the washer is idle, sometimes enough to overflow. Low or no fill can also be caused by closed taps, kinked hoses or blocked inlet screens, so check those before replacing the valve.

Part details

• Genuine Electrolux group part 8581190308107
• Dual inlet water valve, mix type
• 90 degree layout
• Also known as 119030810
• Suits Simpson SWT and Westinghouse WWT washers

Swapping the dual valve

Turn off both taps and switch the washer off at the wall. Disconnect the hoses, catching the water in a bucket. Before unplugging anything, photograph which wire goes to which coil and how the outlet hose is attached, so hot and cold stay the right way round. Fit the new valve, reconnect the hoses with good washers, and test both a warm and a cold fill.

Questions about this part

What does 90 degree mean on this valve?

It describes the valve's layout. Valves for these machines come in different shapes, and the angle has to suit how yours mounts and connects. Compare it with your old valve and check your model is on the list before ordering.
