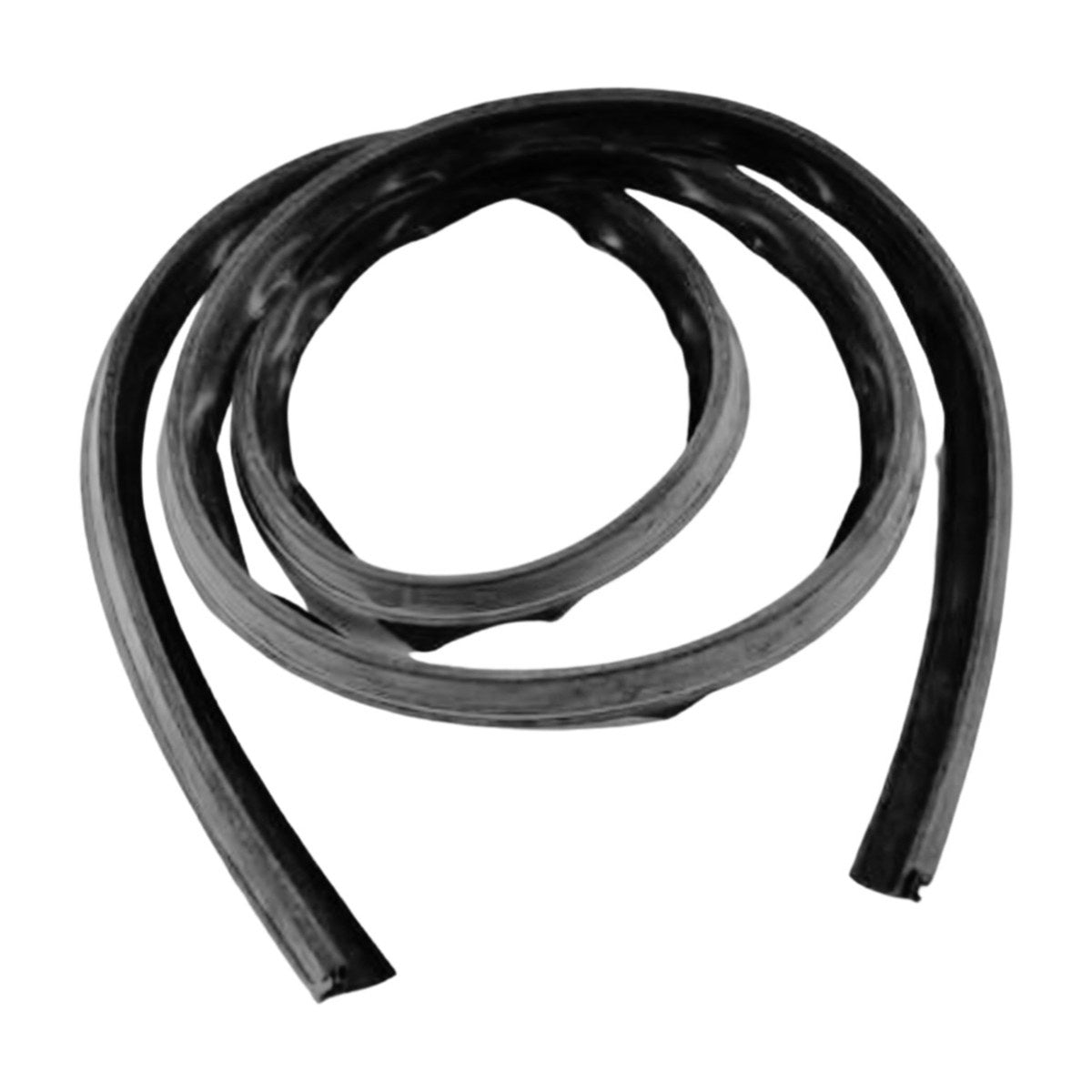

85802080033241 Genuine Oven Cavity Door Seal 1500mm for Westinghouse, Electrolux Ovens 63-805-100 63-904-000 75-800-100 75-804-000 62-850-110

Heat leaking around the oven door usually comes back to a tired seal. 85802080033241 is the genuine 1500mm cavity gasket, the seal that fits around the front of the oven cavity, for Westinghouse and Electrolux ovens. It's listed for the 63-805, 63-904, 75-800 and 75-804 model families plus 62-850-110, and carries the Electrolux reference 0208003324.

Signs your oven door seal needs replacing

A cavity gasket presses against the inside of the door when it closes, holding heat and steam in the oven. With age the material hardens, flattens or frays, and gaps open up. You'll notice the outside of the door and the knobs getting hotter than usual, steam or smoke escaping around the door edge, longer preheating and uneven cooking. Grease building up on the cabinet front above the door is another giveaway. A fresh seal also helps the oven use less power to hold its temperature.

Part details

• Genuine part 85802080033241
• Electrolux reference 0208003324
• Oven cavity gasket, 1500mm long
• Suits 63-805, 63-904, 75-800 and 75-804 models plus 62-850-110

Fitting the cavity seal

Turn the oven off at the isolator and let it go completely cold. Pull the old seal out gently and note how it is held, whether by clips or pressed into a channel, and where the ends meet. Clean the groove of grease and old debris. Start the new seal at the same point as the old one, work around without stretching it, and close the door to check it seals evenly.

Questions about this part

How do I know this is the right length?

This seal is 1500mm long. Measure around the groove where the old seal sits, or check its part number. If your oven model is one listed here, such as 63-805-100, it is the seal to order.
