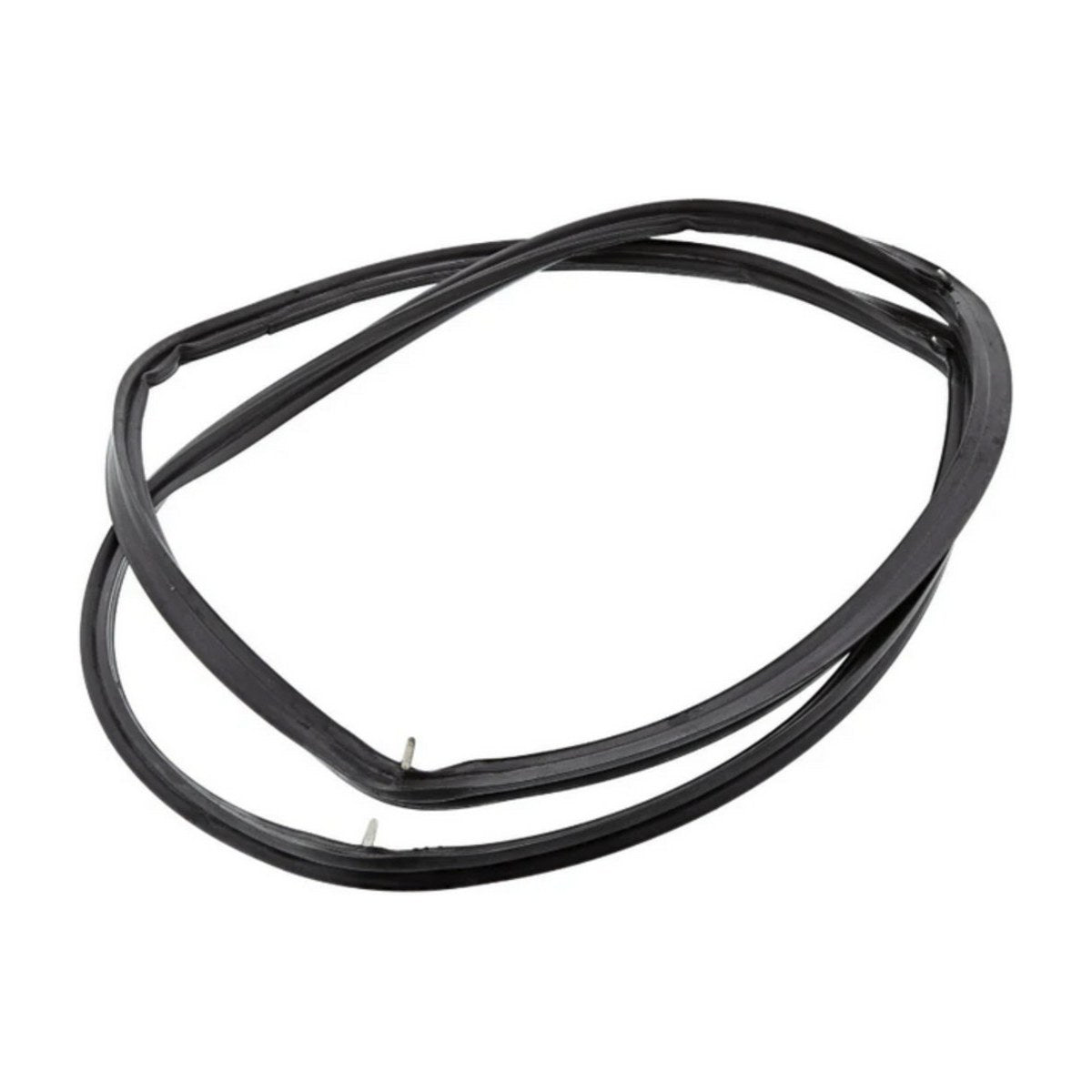

85801880022420 Genuine Oven Inner Door Glass Seal 1480mm for Westinghouse, Simpson Ovens POH668S POH698S GWH745S PGH658S 63C844S

For ovens where heat or steam is getting out around the inner glass, part 85801880022420 is the genuine 1480mm inner door glass seal. It's used in Westinghouse and Simpson ovens and cookers, with more than 130 models on file. Examples include the POH668S and POH698S, the PGH658S, the GWH745S and GWH476S, and numeric models in the 63C, 83E and 88E ranges. The shorter reference 0188002242 is the same seal.

What an inner door glass seal does

The inner glass is the pane you see when you open the oven, and the seal sits between it and the door frame. It keeps cooking vapour and grease from getting in between the glass layers and stops heat escaping into the door. When it hardens, shrinks or breaks, you'll often see a greasy film or condensation between the panes, the outer door getting hotter than usual, or a loose inner glass that rattles. Food can also take longer to cook when heat is lost through the door.

Part details

• Genuine Electrolux group part 85801880022420
• Also known as 0188002242
• Inner door glass seal, 1480mm long
• Suits Westinghouse and Simpson ovens
• 133 models on file

Fitting the glass seal

Make sure the oven is cold and isolated at the switchboard. Taking the door off and laying it on a towel gives you room to remove the inner glass. Lift out the old seal, clean the glass edge and frame of grease, then fit the new seal in the same position as the old one without stretching it. Refit the glass the way it came out, with any printed side facing the same direction as before.

Questions about this part

How do I know if my oven takes the 1480mm seal?

Measure the old seal along its full length without stretching it, and check your model number on the rating plate against the fit list. Inner glass seals differ in length between oven sizes, so both checks are worth doing before you order.
