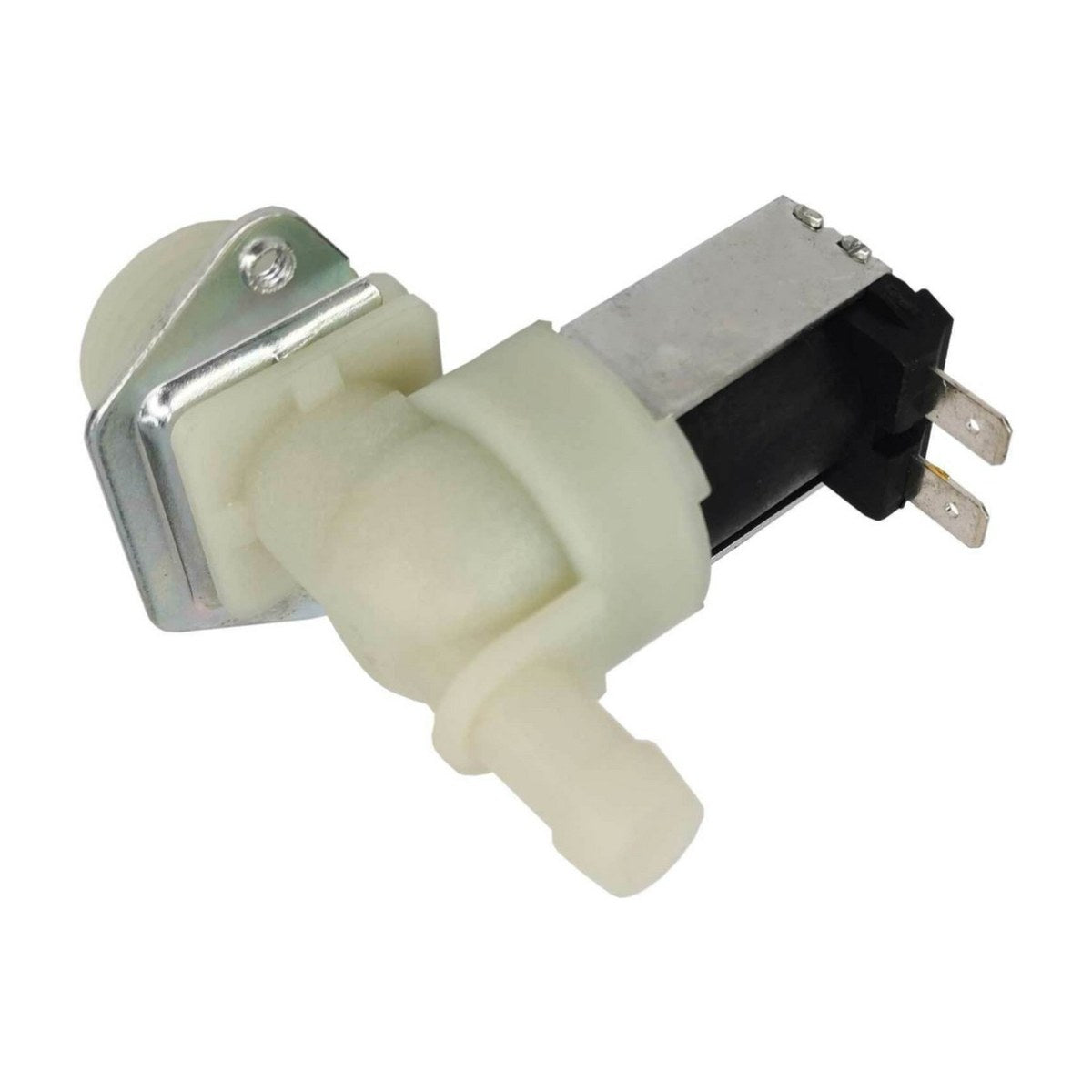

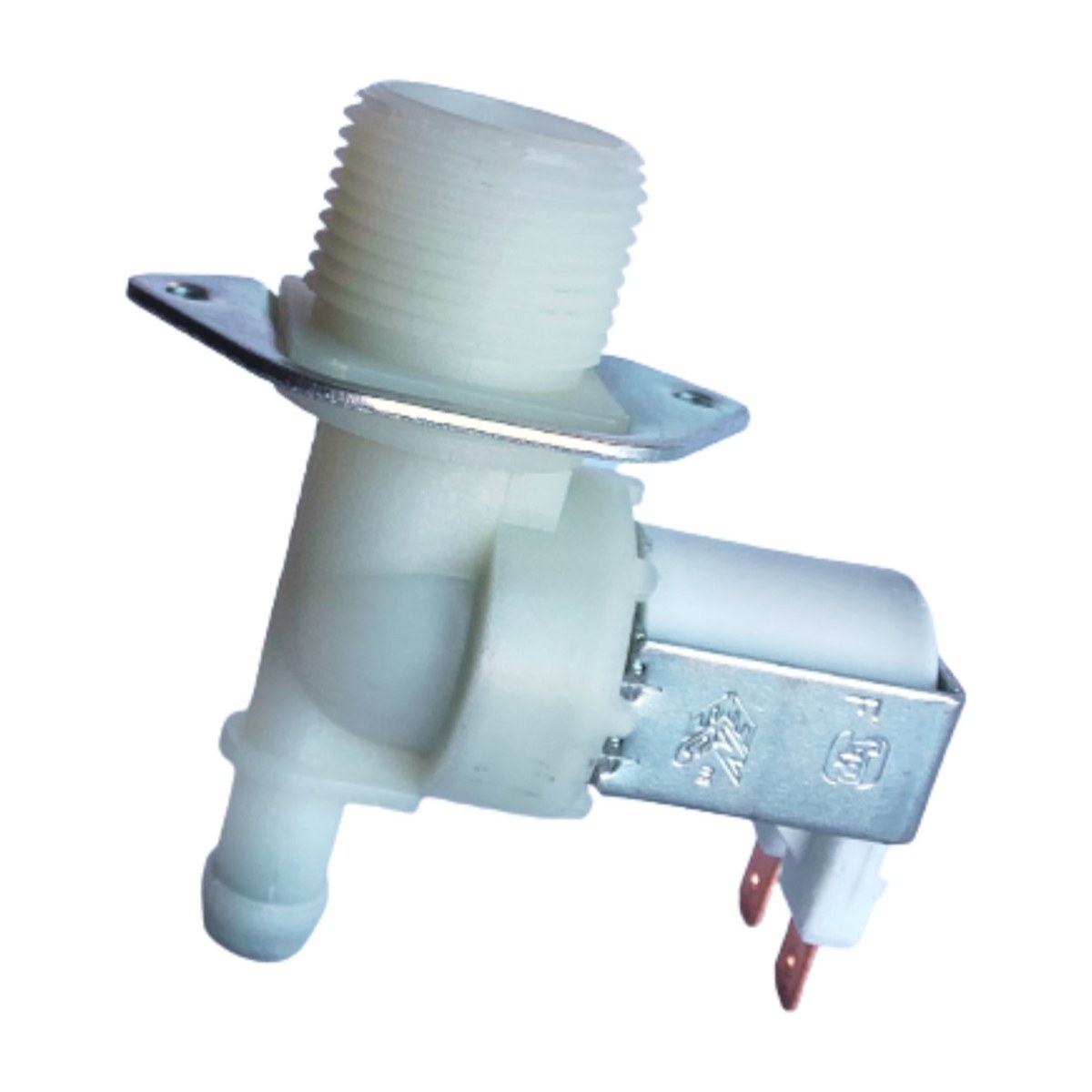

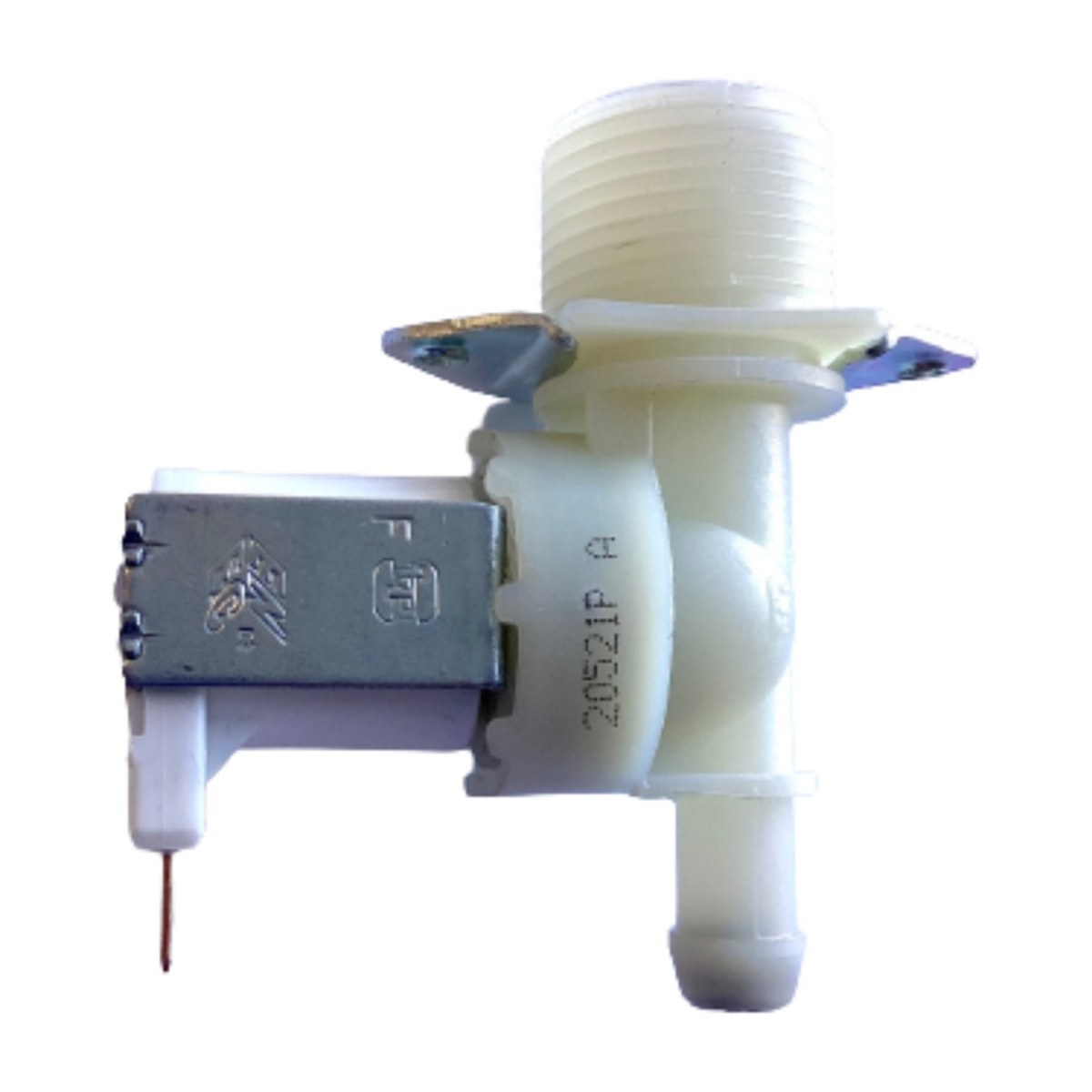

85801362000837 Genuine Single Inlet Valve 180 Degree 10mm for Simpson Washing Machines 36S514E 36S512E 36S502E 36A405P000 0136200083

Part 85801362000837 is a genuine single water inlet valve with a straight 180 degree outlet and 10mm connection. Many older Simpson washing machines use it, and it often turns up under its earlier 10 digit number 0136200083. Models on file include the 36S501E to 36S514E series, 22S701E to 22S714E machines, 36A405P000 variants and a long list of Simpson model codes in the 36-300, 36-610 and 37-500 style.

Washing machine won't fill or keeps filling?

The inlet valve opens when the control powers its coil and lets tap water flow into the machine, then shuts off once the right level is reached. When the coil burns out, the machine sits waiting and never fills. If the valve sticks or a speck of grit holds it open, water keeps trickling in even with the machine turned off, and the tub can overflow. Cracked bodies and worn connections cause drips at the back of the cabinet. Clean the hose filter screens first, as a blocked screen slows filling in the same way.

Part details

• Genuine Electrolux group part 85801362000837
• Earlier 10 digit number 0136200083
• Single valve with straight 180 degree outlet
• 10mm connection
• Listed for more than 80 Simpson model codes

Changing a single inlet valve

Turn the tap off and unplug the machine before you begin. Remove the inlet hose from the valve and the internal hose from its outlet, noting how the wires connect to the coil terminals. Check the outlet angle and size on the old valve match this one before fitting. Tighten the mounting screws evenly, reconnect everything, then turn the tap on slowly and watch for leaks while it fills.

Questions about this part

My old valve shows 0136200083. Is this the same part?

Yes. 0136200083 is the older 10 digit number for this valve and 85801362000837 is the current long number. Both refer to the same single 180 degree 10mm valve listed for these Simpson machines.
