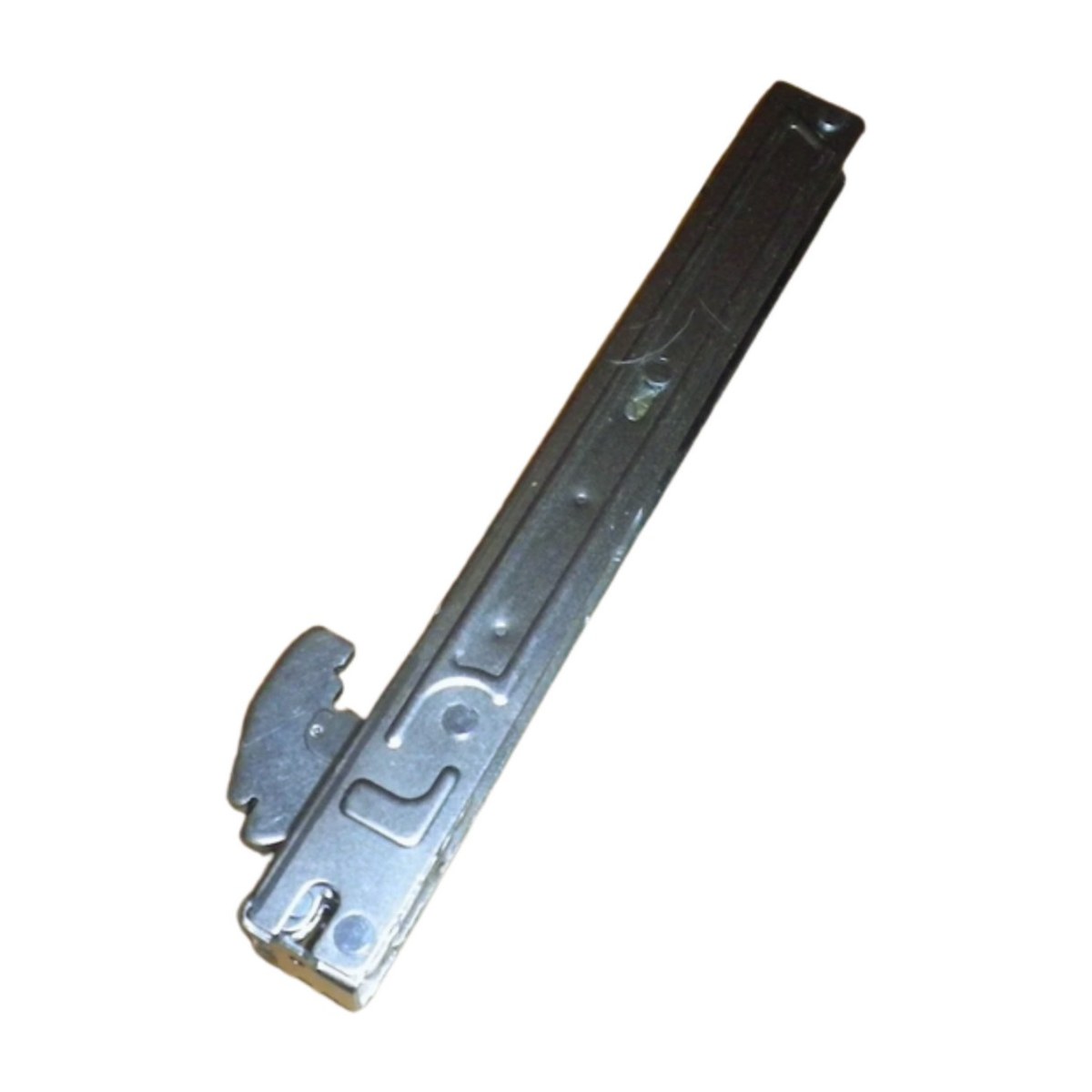

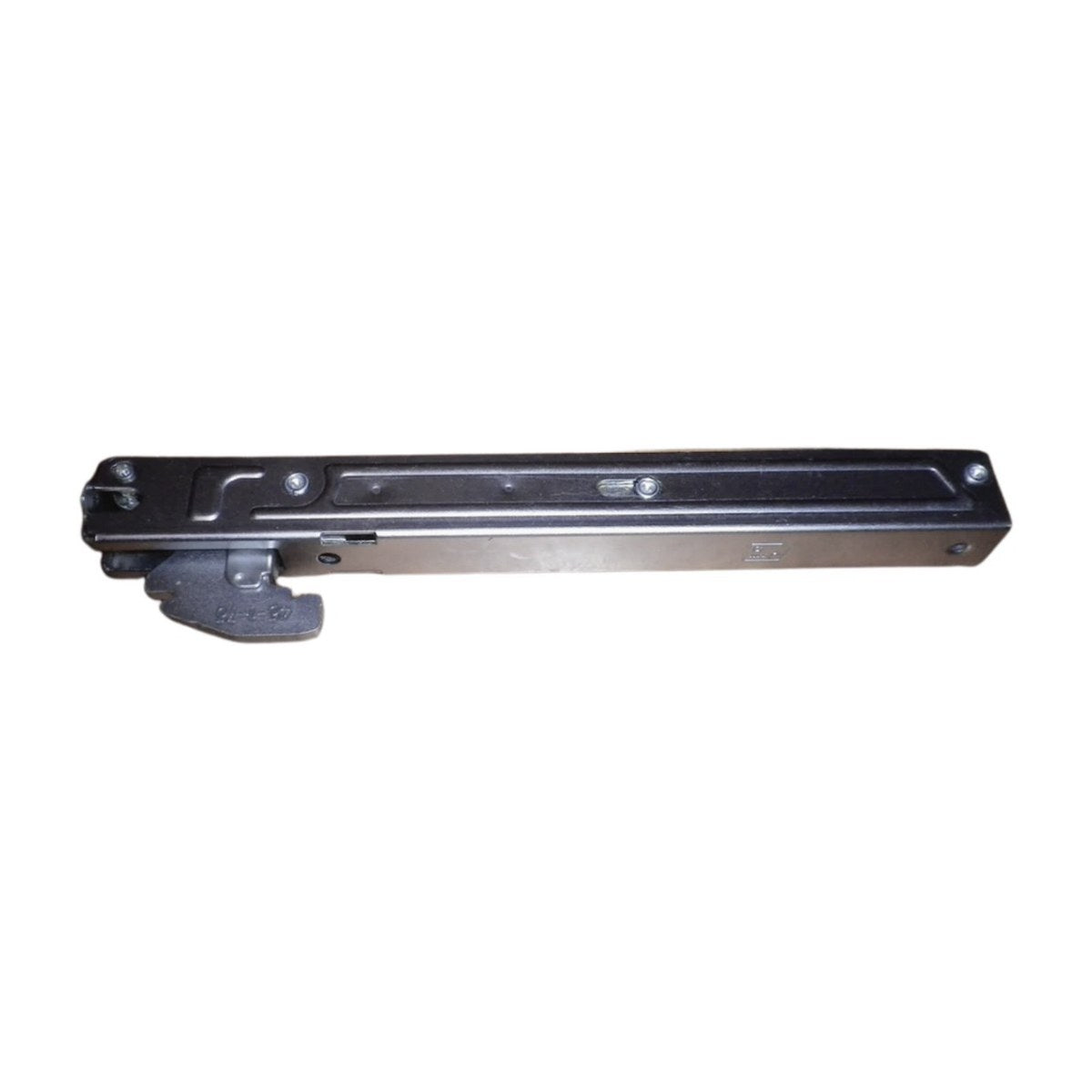

85800450010757 Genuine Oven Door Hinge Single for Chef, Westinghouse Ovens PEK1380W-L GEK1235WNG-L GEK1385WNG-R GEK1385WLP-L GBC5486WNG GBC5246WNG

This genuine single door hinge, 85800450010757, suits a wide range of Chef and Westinghouse ovens, with close to 200 model variants on file. Fit examples include the PEK1380W-L and GEK1235WNG-L, the GEK1385WLP-R, and the GBC5246WNG and GBC5266WNG. The older number is 0045001075. The hinge now supplied is a revised design, so read the compatibility notes below before you order.

Revised hinge design, check your oven before ordering

The original 0045001075 hinge became unavailable in 2019, and the version now supplied under this number has a shorter hinge housing without the pressed screw hole of the original. That change means it won't suit every oven on the older fit list. It is not suitable for doors with inner door panel 0038001859, it does not suit the PEK1350K, PAK557W, PAK520W*40, GXP650S or EBC5231W, and it won't fit ovens built before 2011. A worn hinge shows up as a door that drops, won't close firmly or lets heat escape at the top.

Part details

• Genuine part 85800450010757, older number 0045001075
• Single oven door hinge, sold individually
• Revised design with a shorter housing and no pressed screw hole
• Not suitable for ovens built before 2011 or doors with inner panel 0038001859
• Not for PEK1350K, PAK557W, PAK520W*40, GXP650S or EBC5231W

Fitting a single oven hinge

Isolate the oven at the switchboard and let it cool. Open the door fully, lock the hinge arms with their clips or levers as the design allows, and lift the door away. Compare the old hinge side by side with the new one before removing anything from the oven body. If the other hinge is also worn, replacing both keeps the door sitting evenly.

Questions about this part

Do I need one hinge or two?

This listing is for one hinge. Most oven doors hang on a pair, so if both are worn or the door sags on both sides, order two. Replacing them together helps the door close and seal evenly.

Will the revised hinge fit my oven?

Not every oven on the older list. It won't suit ovens built before 2011, doors with inner panel 0038001859, or the PEK1350K, PAK557W, PAK520W*40, GXP650S and EBC5231W. Send your model through the parts enquiry form if unsure.
