855203P Genuine Active Smart Temperature Sensor Kit for Fisher & Paykel Fridges RF610ADUX1 RF522ADUX1 E442BRXFDU RF381TCRW1 RF331TCLW1

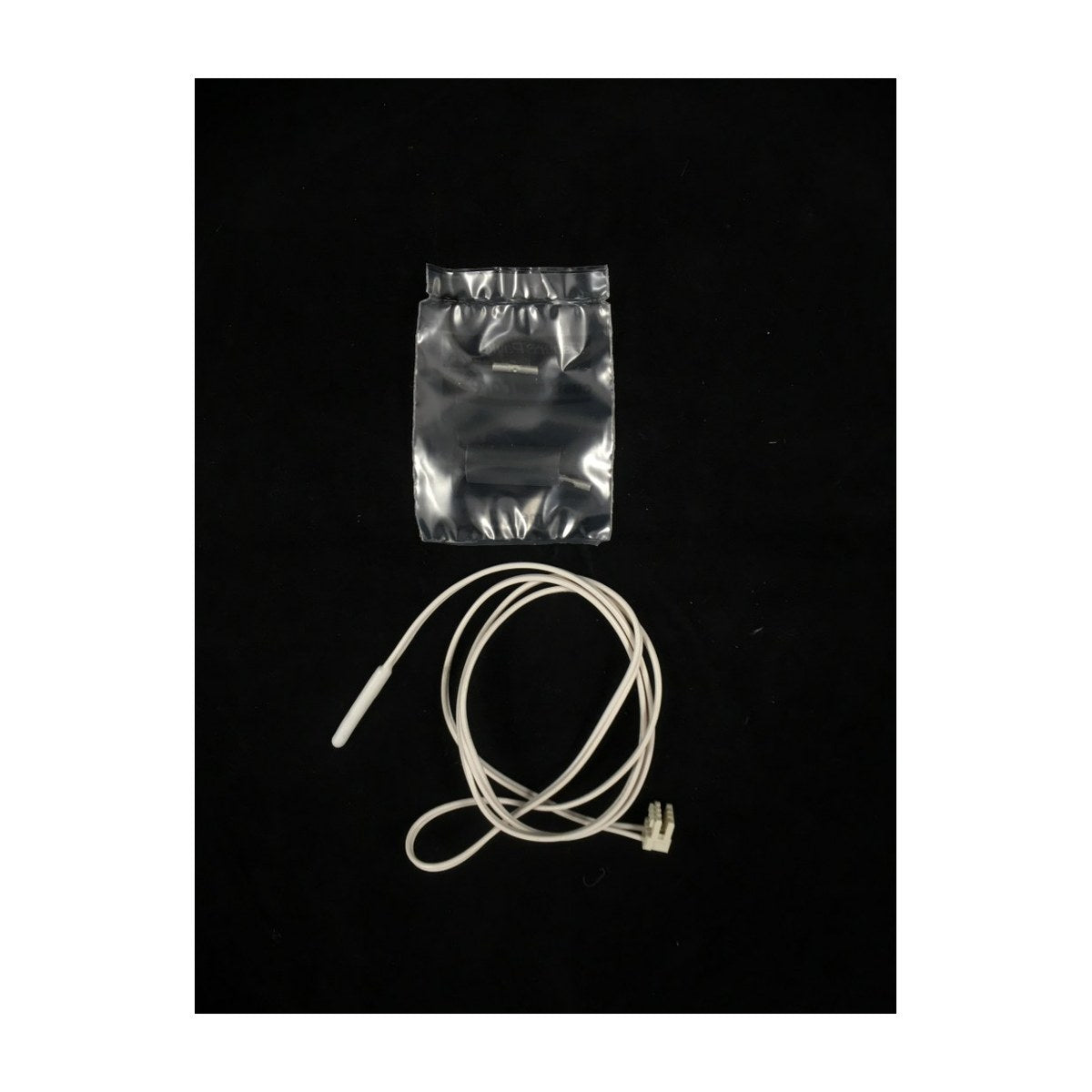

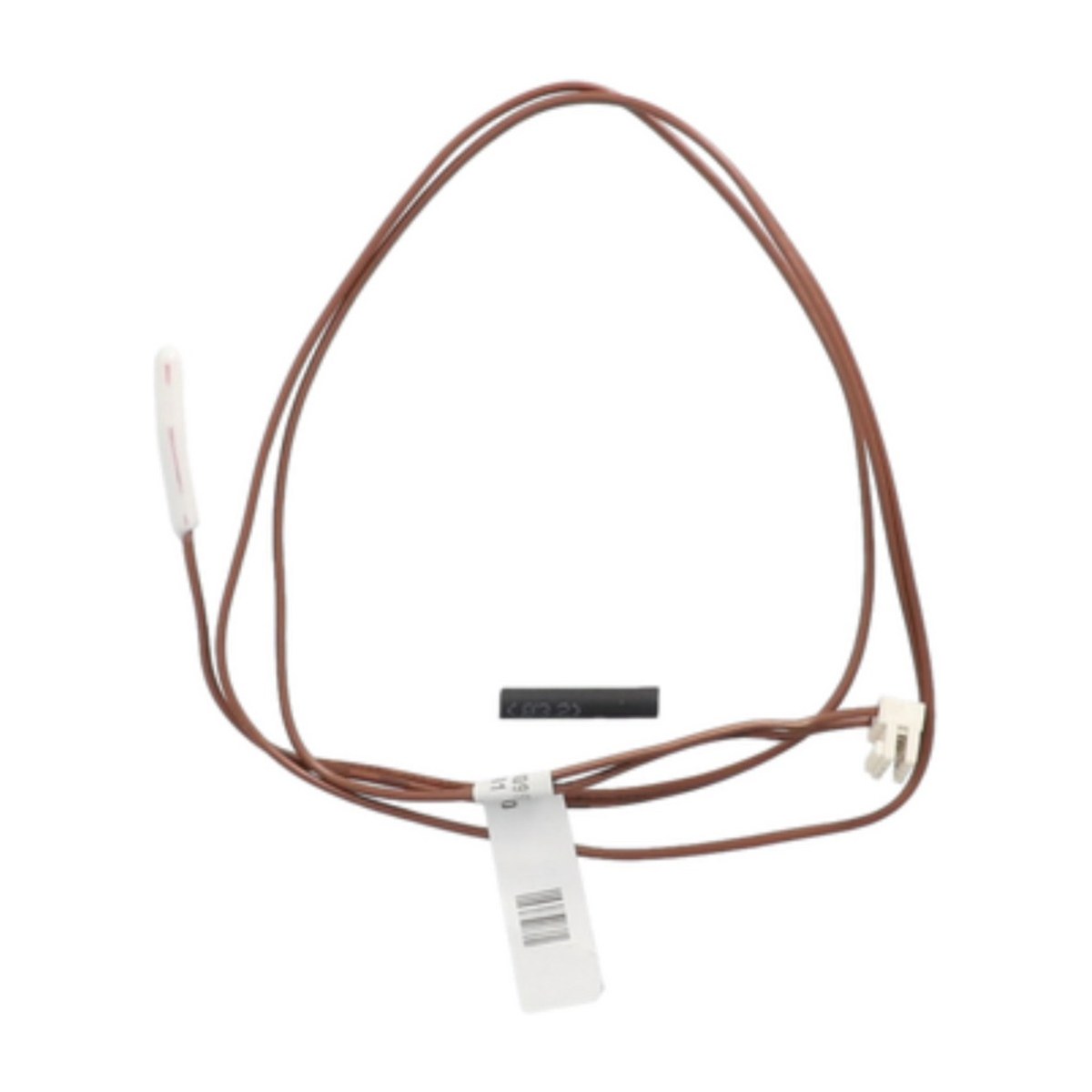

Part 855203P is the genuine Fisher & Paykel sensor kit assembly for Active Smart fridges. It's the temperature sensor set that feeds readings to the fridge's electronic control. Listed fits include the RF610ADUX1, RF610ADUM1, RF522ADUX1, RF522WDLX1, RF381TCRW1 and RF331TCLW1, plus the E442BRXFDU series. Compare the model number on your fridge with the full list before ordering.

Fisher & Paykel Active Smart fridge not cooling properly

Active Smart fridges don't use a mechanical thermostat. Instead, the control board reads temperature sensors and uses those readings to run the compressor, the fans and the defrost cycle. When a sensor drifts or fails, the board is working from bad information. The fridge may run warm and spoil food, freeze lettuce and milk, leave the freezer soft, run almost constantly, or build up ice because defrost isn't happening on time. Some models will also flash a fault or sound an alarm when a sensor reading is out of range.

Part details

• Genuine Fisher & Paykel part number 855203P
• Sensor kit assembly for Active Smart fridges
• Listed for RF610, RF522, RF521, RF381 and RF331 models
• Also listed for E442BRXFDU, E442BRXFDU3 and E442BRXFDUR6

Fitting the sensor kit

Unplug the fridge at the wall and move food into an esky. Remove the covers or panels needed to reach each sensor, and take photos of how the leads are routed and clipped before disconnecting anything. Fit the new sensors in the same spots, clip the wiring back away from fans and sharp edges, then refit the panels. Give the fridge several hours to settle before judging the temperatures.

Questions about this part

Where do I find the model number on my Fisher & Paykel fridge?

Open the fresh food door and look for the rating label on an inside wall of the cabinet, usually low down near the crisper bins. Active Smart model numbers start with letters such as RF or E, for example RF610ADUX1.
