848316P Genuine Freezer Fan Kit 3 Wire for Fisher & Paykel Fridges RF610ADX4 RF522ADX4 RF522ADX5 E522BRXFD5 RF522BRPX6 RF610ADUX5

This genuine Fisher & Paykel fan kit, part 848316P, is described for the 790 series fridge freezers and uses a 3 wire connection. Close to 50 models are on file. They include the RF610ADX4, RF610ADUX5 and RF610AZUB5, the RF522ADX4 and RF522ADX5, the E522BRXFD5 and E522BLXFD5, the RF522BRPX6 and RF522WDLX5, and the E442BLXFD4.

Freezer not freezing or fan noisy? The fan kit could be the cause

In a frost-free fridge freezer, the fan behind the freezer panel moves cold air over the evaporator and around the cabinet, and on many models through to the fridge section as well. When the motor fails, the evaporator still gets cold but the air barely moves, so the freezer warms up, ice cream softens and the fridge loses its chill. A motor with worn bearings often squeals, buzzes or ticks, especially with the door closed. Ice built up around the blade can stop the fan too, and heavy frost on the panel points to a defrost problem instead.

Part details

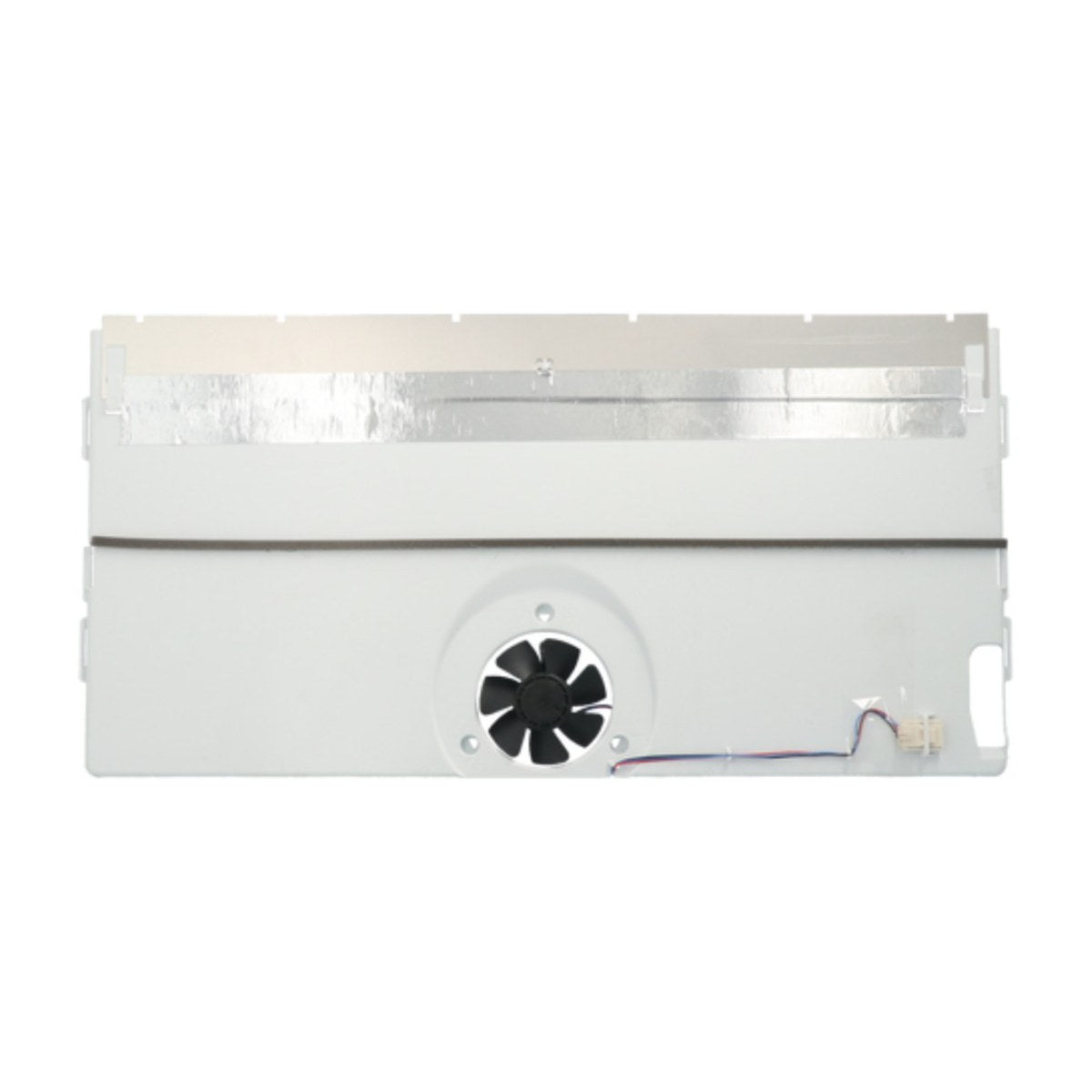

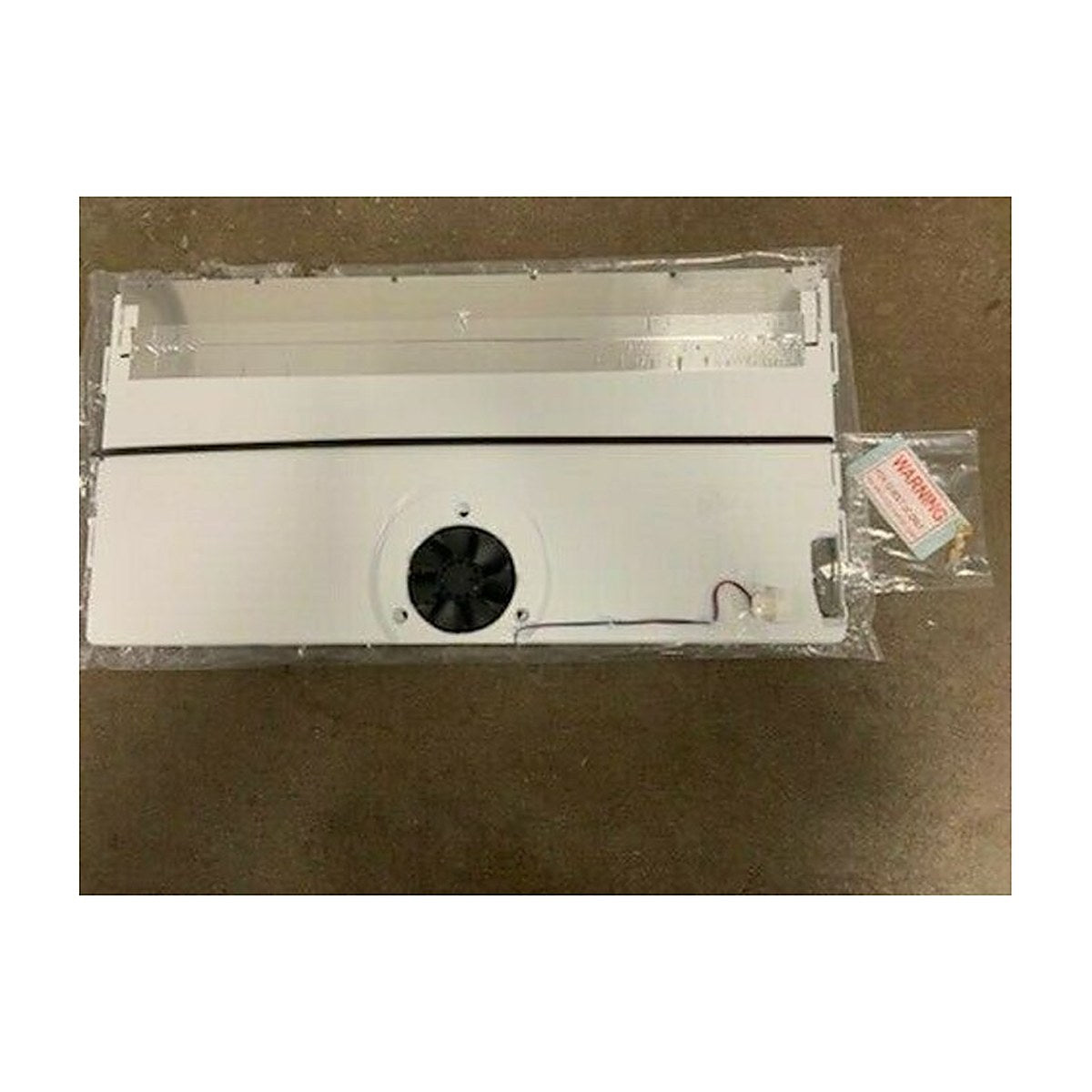

• Genuine Fisher & Paykel kit 848316P
• Fan kit described for 790 series fridge freezers

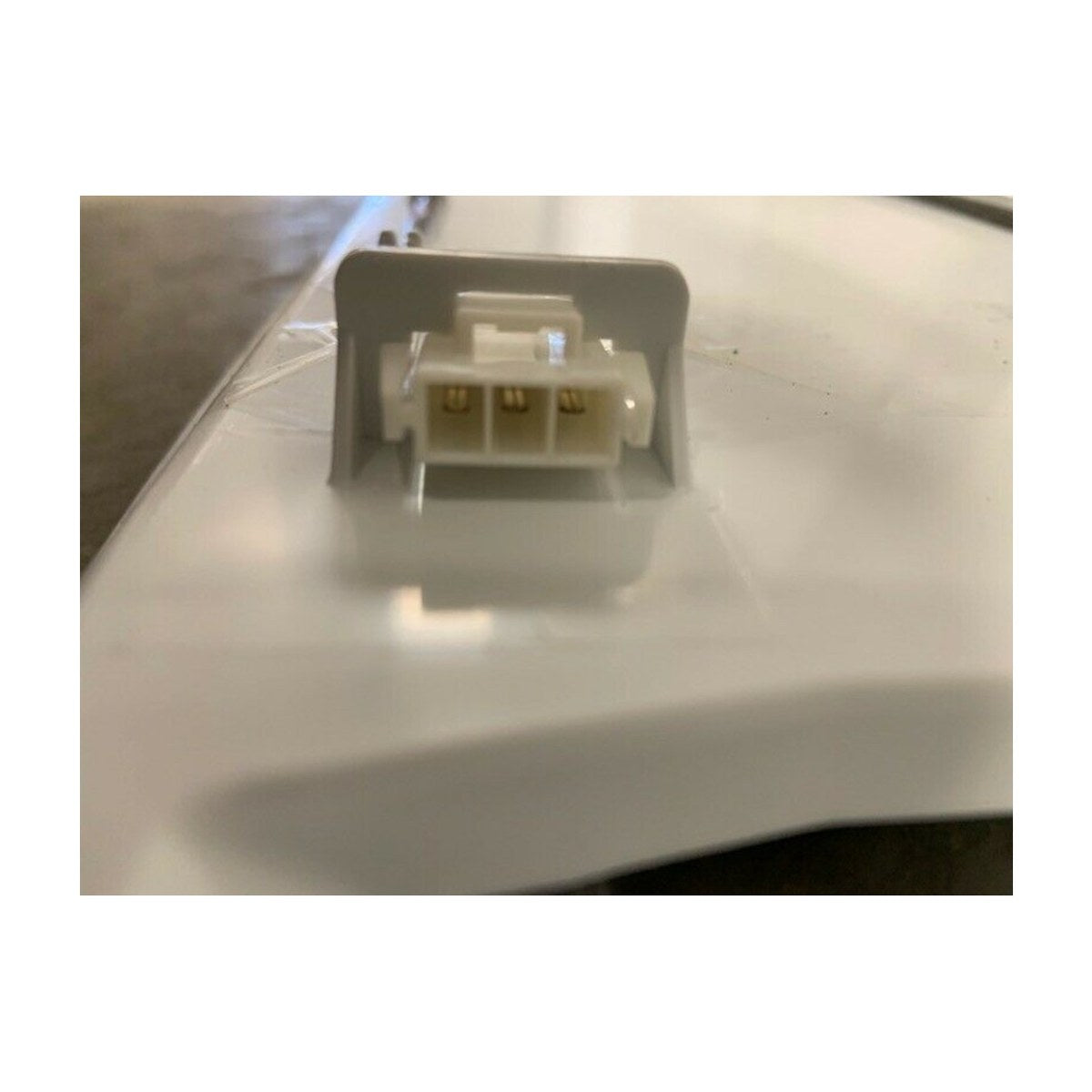

• 3 wire connection
• Listed for RF610AD, RF522AD, RF522BR, RF522WD, RF521T and E522B models

Installing the fan kit

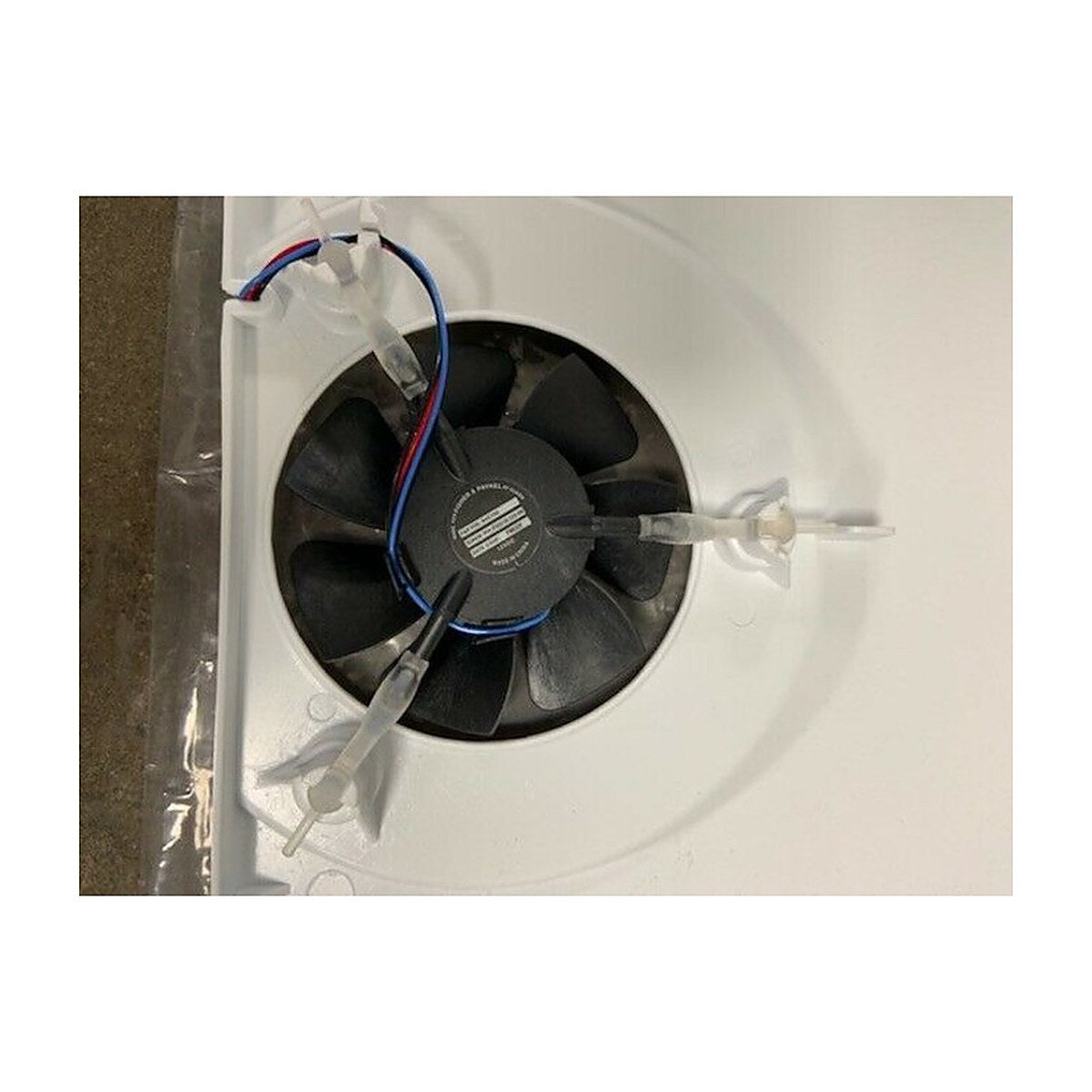

Switch off at the wall and unplug the fridge, and move frozen food somewhere cold while you work. Take off the freezer's rear panel to expose the fan. Photograph how the wiring and any brackets are arranged, then transfer them to the new kit. Check the blade spins freely and clears its housing, refit the panel and give the cabinet a few hours to pull back down to temperature.

Questions about this part

My old fan has 2 wires. Will this kit fit?

This kit is the 3 wire version described for the 790 series. If your existing fan has a different number of wires, it may belong to a different series, so send your model number from the label inside the fridge through the parts enquiry form before ordering.
