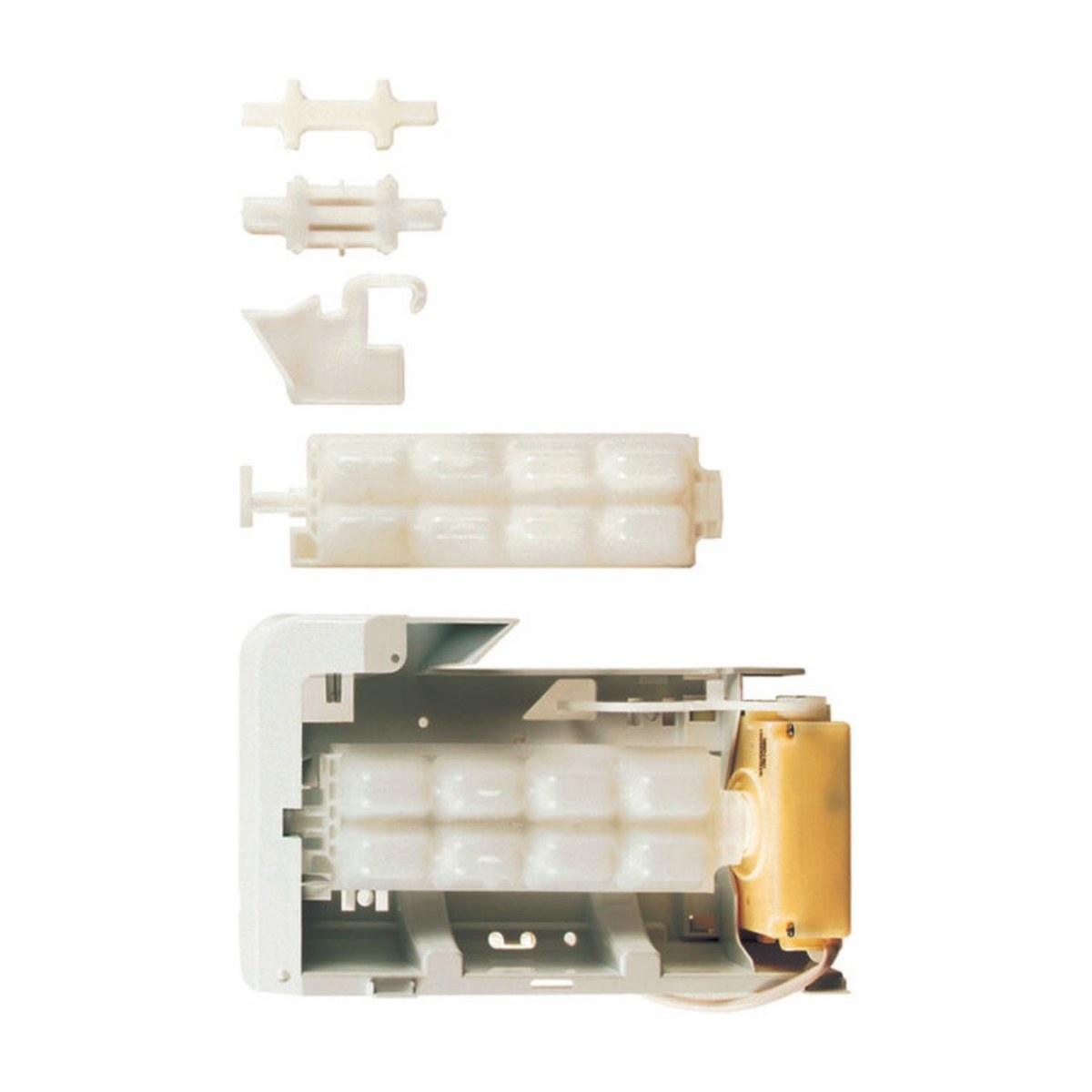

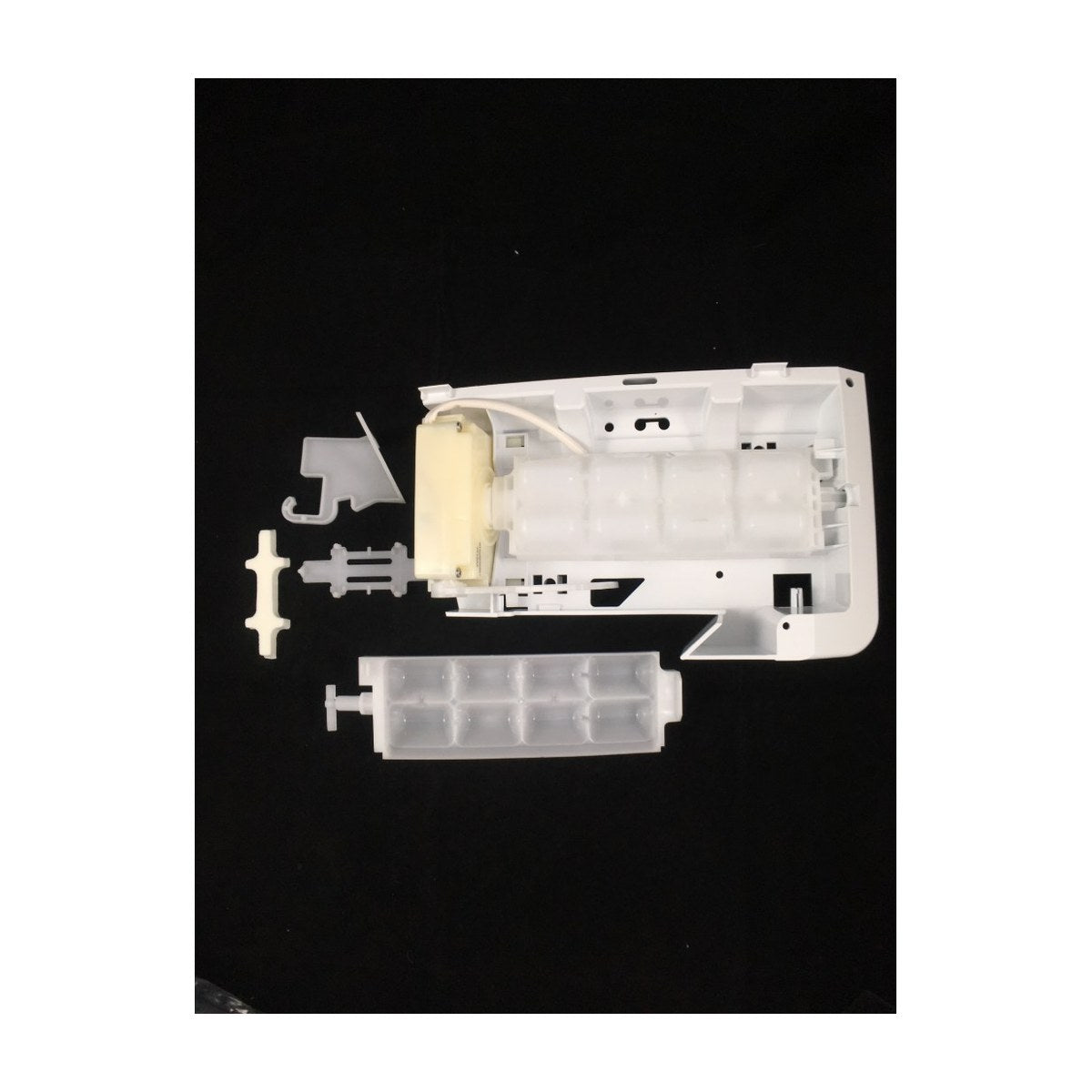

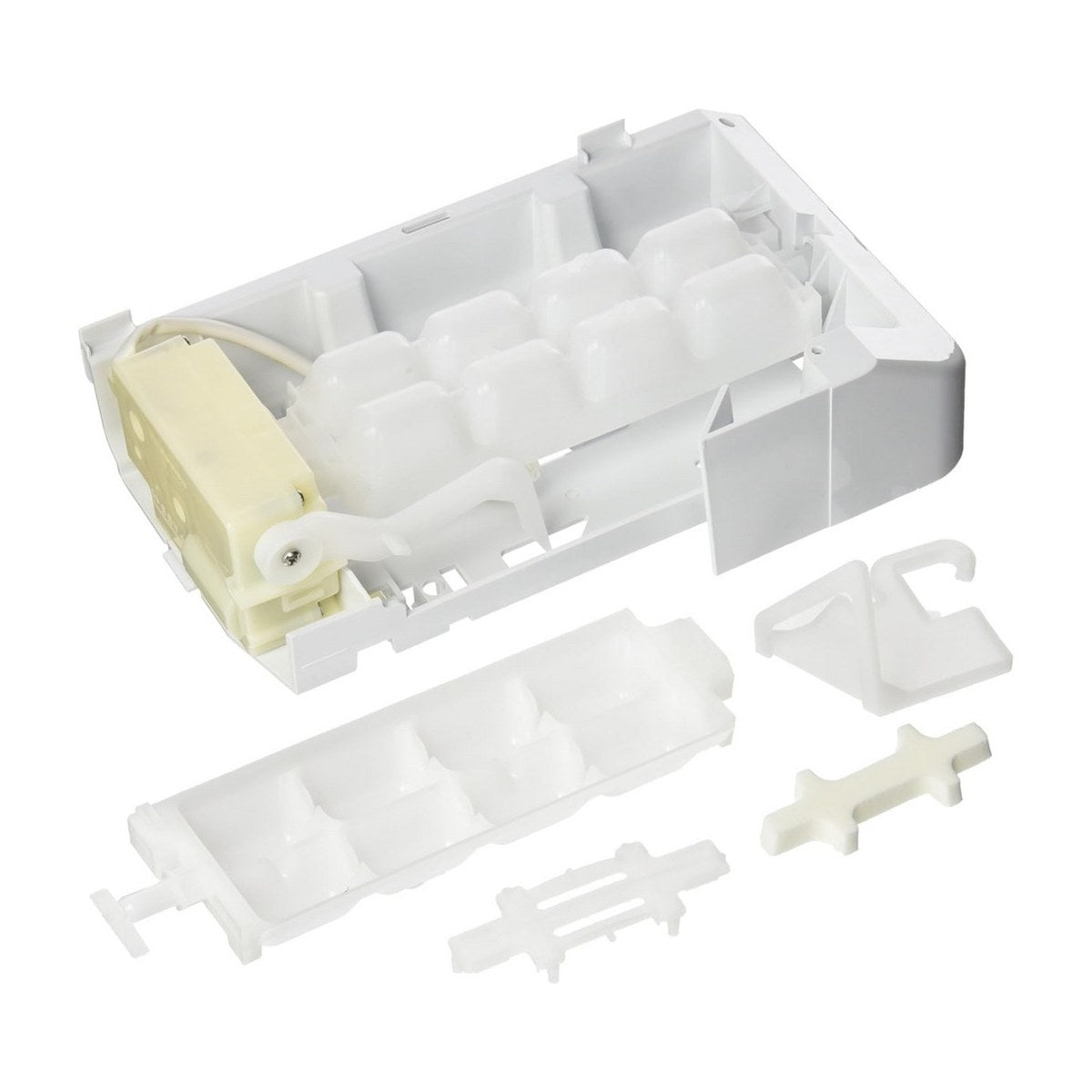

820833P Genuine Ice Maker Tray Assembly for Fisher & Paykel Fridges RF610ADUX5 RF522ADUX5 E522BRXFDU5 E442BRXFDU5 E402BRXFDU5 RF540ADUSX4

Part 820833P is Fisher & Paykel's genuine ice maker tray assembly for fridges with an automatic ice maker. It's listed for a long run of models, from the RF610ADUX5 and RF540ADUSX4 to the RF522ADUX5, through E522BRXFDU5, E442BRXFDU5 and E402BRXFDU5 versions, and back to older RF170AD and RF201A fridges. The foam and clip for the tray sensor, numbered 836909 and 837180, come with it.

Fridge ice maker not making ice or leaking water

The tray is where the ice maker fills with water, freezes it into cubes and then releases them into the ice bin. A sensor held against the tray reads its temperature so the ice maker can tell when the cubes are ready to harvest. A cracked or warped tray lets water drip into the bin, where it freezes the cubes into one solid lump. Other signs are hollow or undersized cubes, ice that won't release, or no ice at all even though water is reaching the tray. If the sensor foam or clip has come loose, harvest timing can go wrong too.

Part details

• Genuine Fisher & Paykel part 820833P
• Ice maker tray assembly
• Includes the sensor foam and clip (836909 and 837180)
• Listed for RF610A, RF522A and RF540A fridges, plus the E402B, E442B and E522B ranges

Swapping the ice maker tray

Turn the fridge off at the wall and shut off the water supply to it. Empty the ice bin and let the ice maker thaw if it's frozen up. Photograph how the sensor sits on the old tray before removing anything. Fit the new tray, then set the sensor in the same spot using the foam and clip supplied so it reads accurately. Restore power and water and throw out the first few batches of ice.

Questions about this part

What comes with 820833P?

The tray assembly comes with the foam and clip for the tray sensor, part numbers 836909 and 837180, so the sensor can be seated properly on the new tray. Check your fridge model number against the list before ordering.
