820681P Genuine Fan Motor and Fan 12V 84mm for Fisher & Paykel Fridge Freezers E521T E522B RS90AU1, with JST Plug
- Original part no.
- 820681P
- Part grade
- Genuine
- Appliance
- Fridge Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

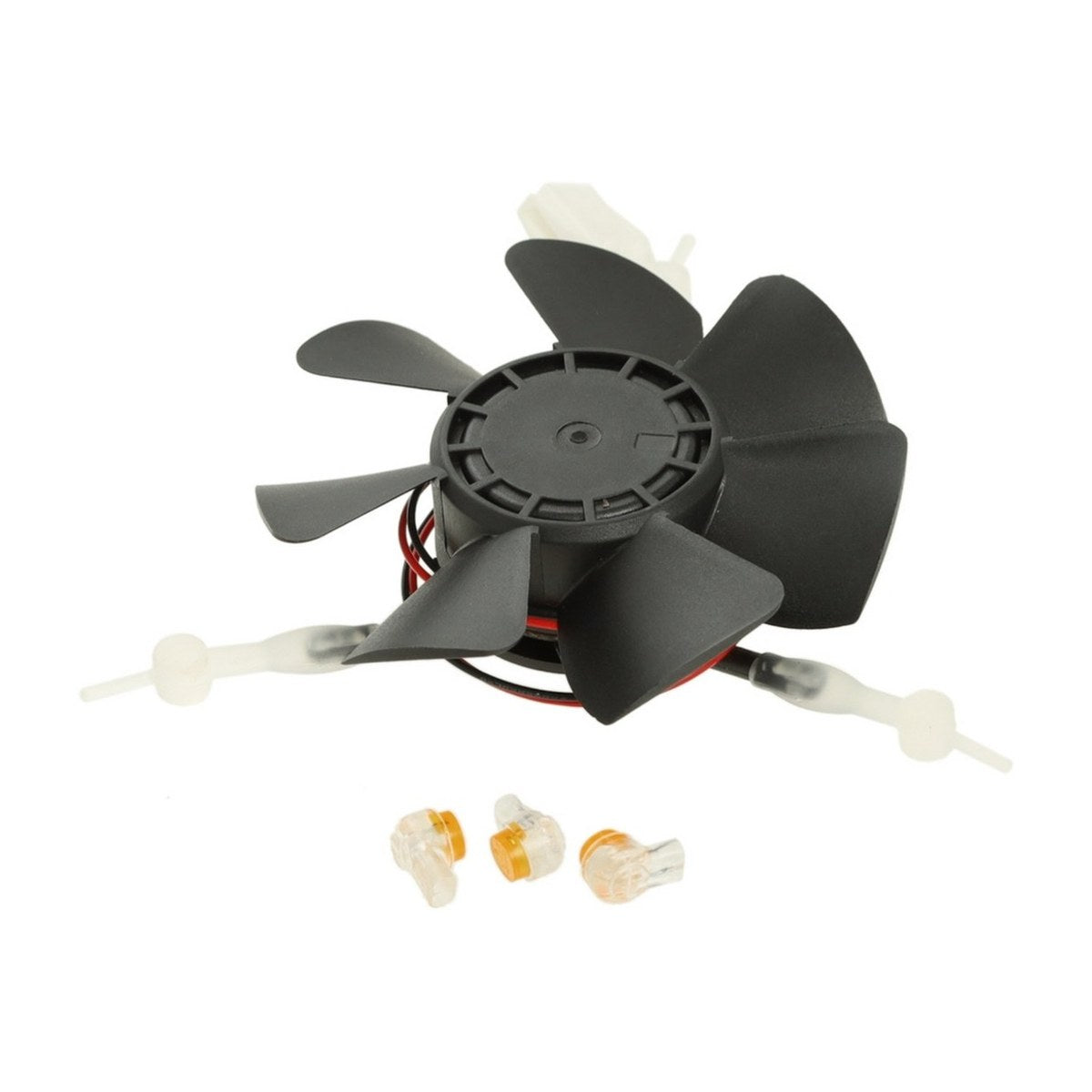

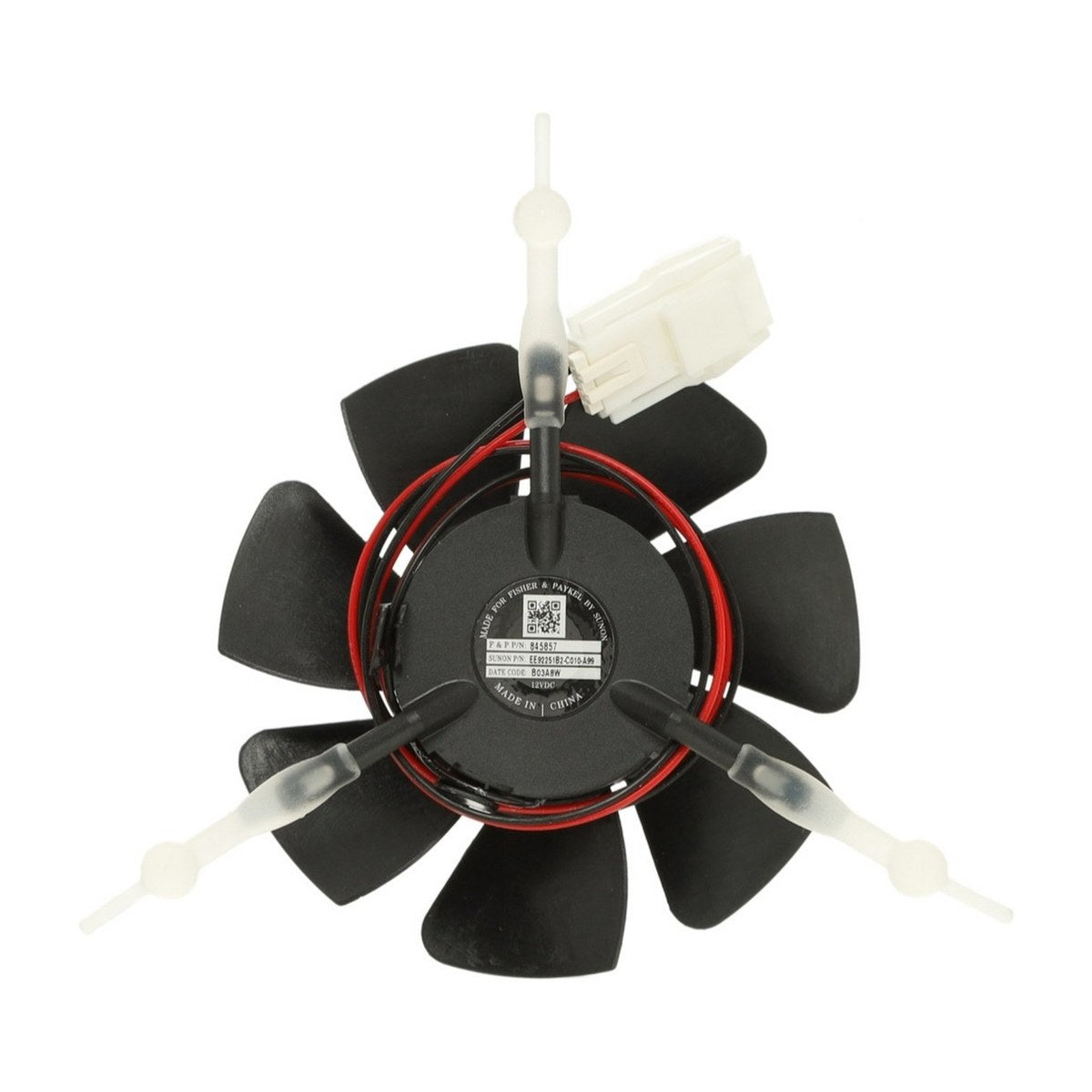

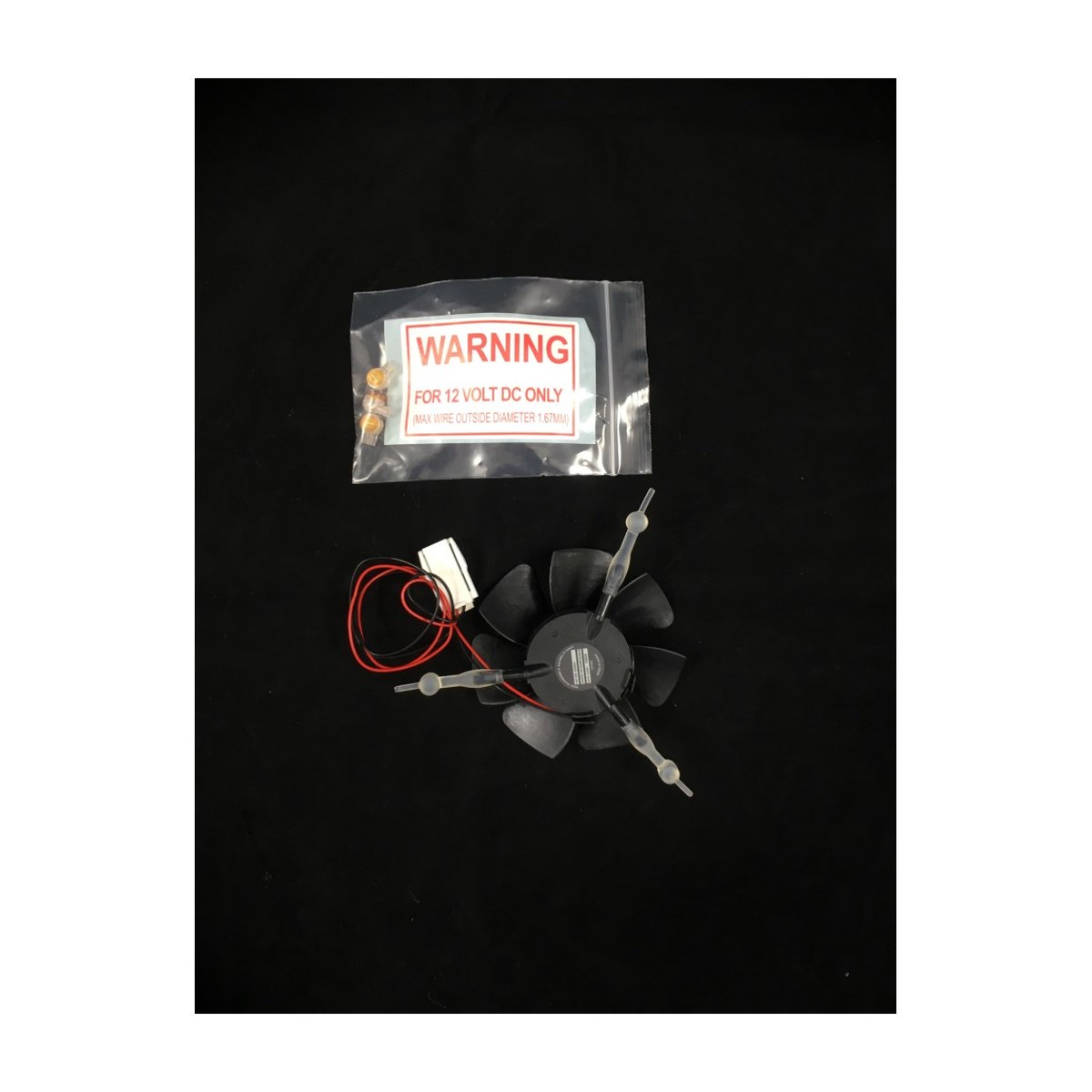

Inside kit 820681P you get a genuine Fisher & Paykel 12V fan motor with an 84mm fan, along with a JST plug and 3M IDC connectors for joining it to the existing wiring. It's listed for the E521T and E522B fridge freezers and the RS90AU1. When this fan stops, cold air stops circulating, and food starts warming up or freezing in the wrong places.
Fridge warm but freezer cold? Check the fan
In a frost free fridge freezer, a fan moves cold air from the evaporator into the compartments. If it stops, the compressor may keep running and the evaporator may still frost up, but the cold doesn't get where it's needed. Owners usually notice the fridge or freezer slowly warming, uneven temperatures between shelves, ice building up on the back panel, or a ticking, buzzing or grinding noise as a worn motor struggles or the blade catches on ice. On many models the fan pauses when a door is open, so check it with the door switch held in.
Part details
- Genuine Fisher & Paykel kit, part 820681P
- 12V fan motor with 84mm fan
- Supplied with JST plug and 3M IDC connectors
- Listed for E521T, E522B and RS90AU1
| Voltage | 12V |
|---|---|
| Fan size | 84mm |
| Connections | JST plug and 3M IDC connectors |
Connecting the new fan
Unplug the fridge at the wall before removing any panels. Defrost any ice around the fan housing first, since ice can jam or damage a blade. The 3M IDC connectors let you join the new fan's leads to the existing harness, so cut and join one wire at a time to keep the polarity right. If you're not comfortable working with the wiring, have a qualified technician fit it.
Questions about this part
Why does it come with connectors?
The kit includes a JST plug and 3M IDC connectors so the new fan can be connected to the wiring already in your fridge. Depending on what your model has, you'll either plug it in or join it to the harness with the IDC connectors.
Specifications
| Original part number | 820681P |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 820681P |
| Appliance | Fridge Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
